IP Bullet cam 4Mpx -2,8-12mm A.V.

4621.2812DA
Safety / ELVOX CCTV / IP / Cameras

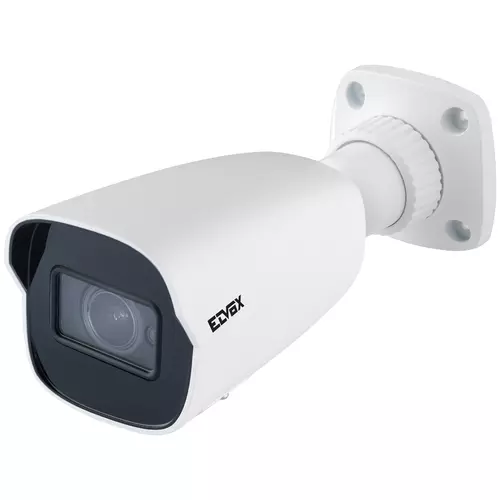

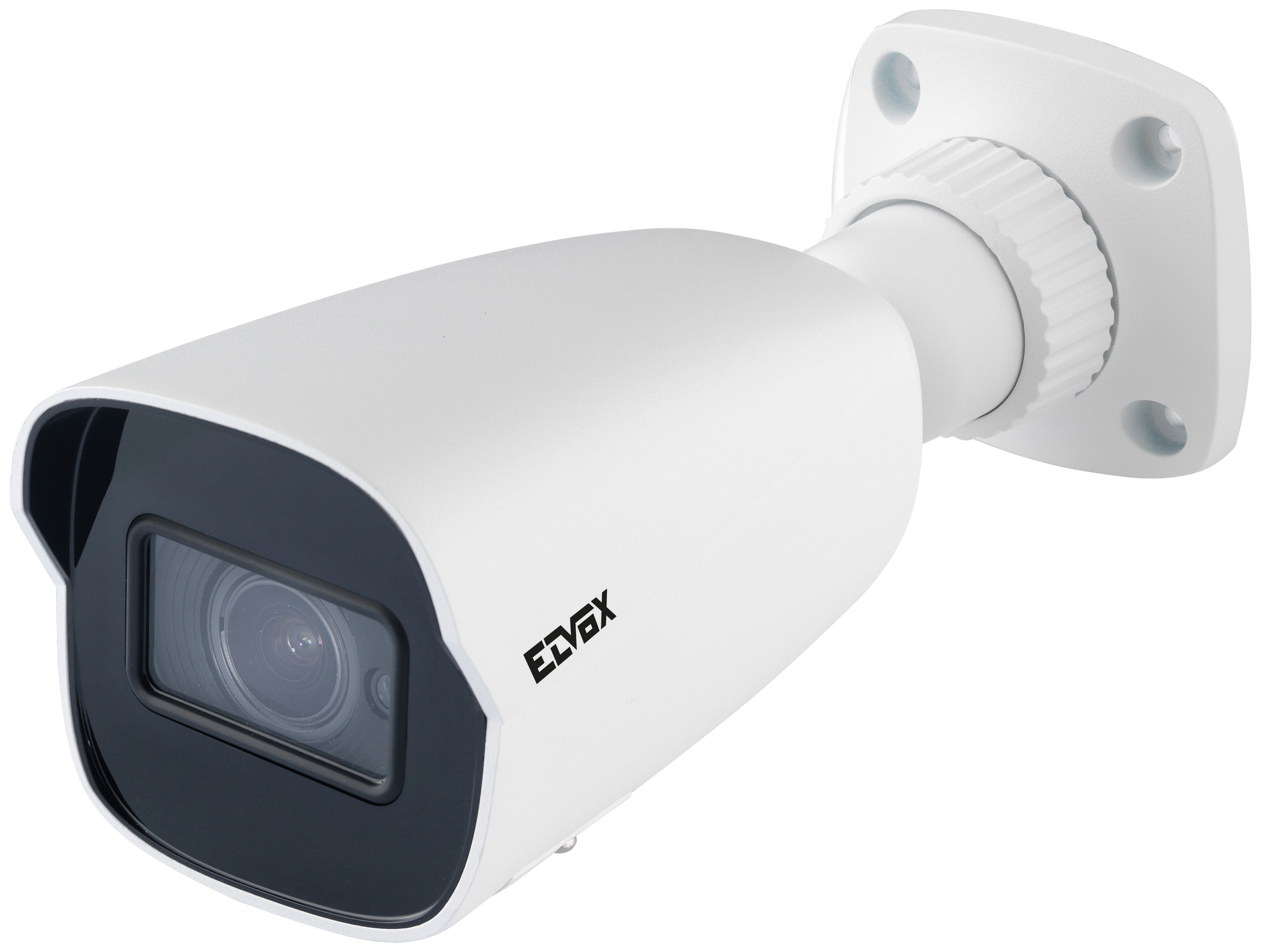

IP Bullet cam 4Mpx -2,8-12mm A.V.
Day & Night colour IP Bullet camera, CMOS 1/3” sensor, 4 Mpx resolution (2560x1440), 2.8-12mm varifocal lens, mechanical IR filter, H.265 Multistream, PoE or 12 VDC power supply, SD CARD slot, IR 30-50 m, AV, WDR, 3DNR, HLC, BLC, Mask, Motion, RTSP functions, protection degree IP67. Dimensions: 81x81x218 mm. Weight 680 g

Product Status
2 - Will be discontinued

Alternative products

4621.2812DC - IP Bullet cam-4Mpx VF 2,8-12mm mot Color

You may also be interested in

46917.005 - Pole bracket IP cams

46922.040 - IP camera contacts bracket

Sheets, Manuals, Documentation

Product Software

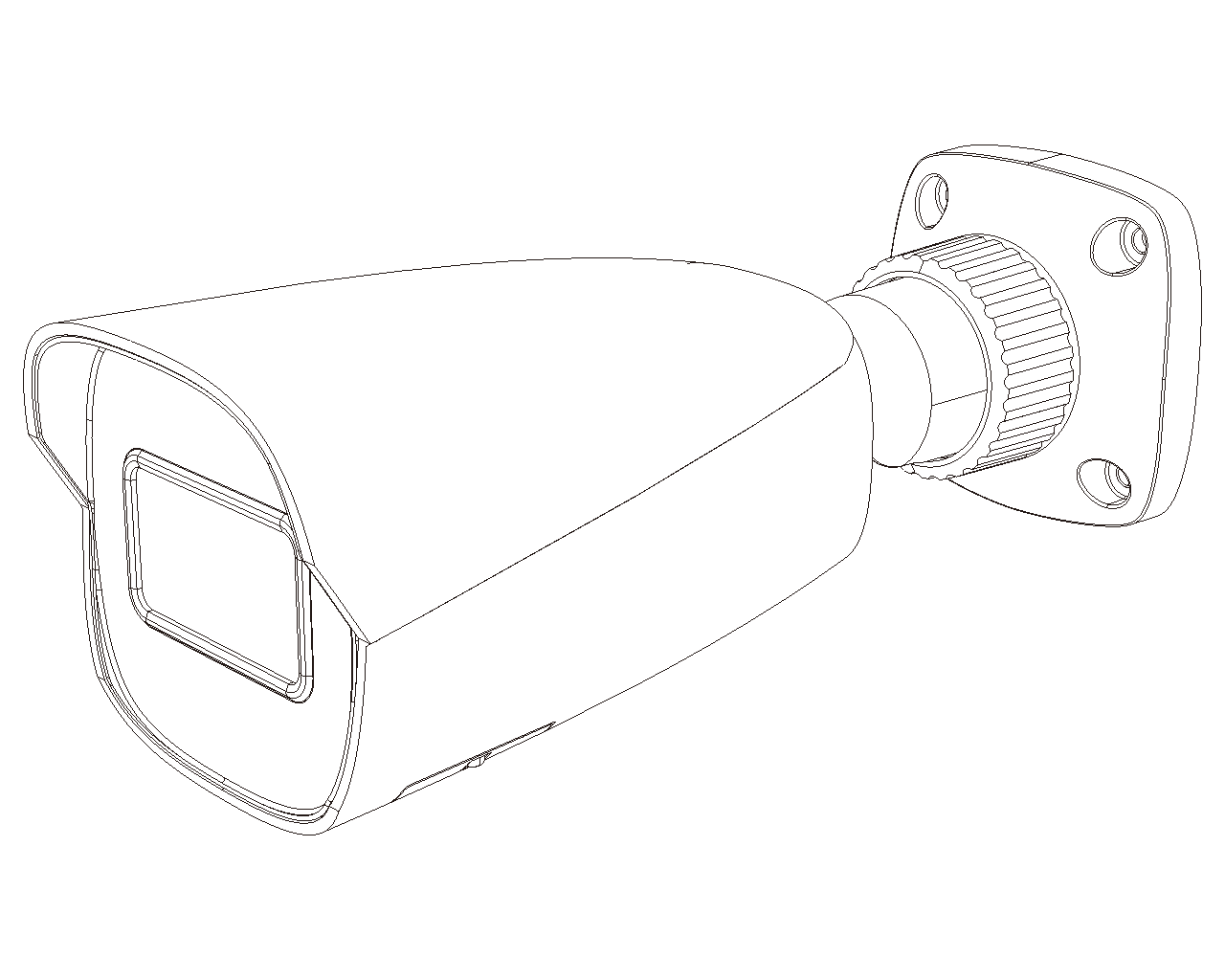

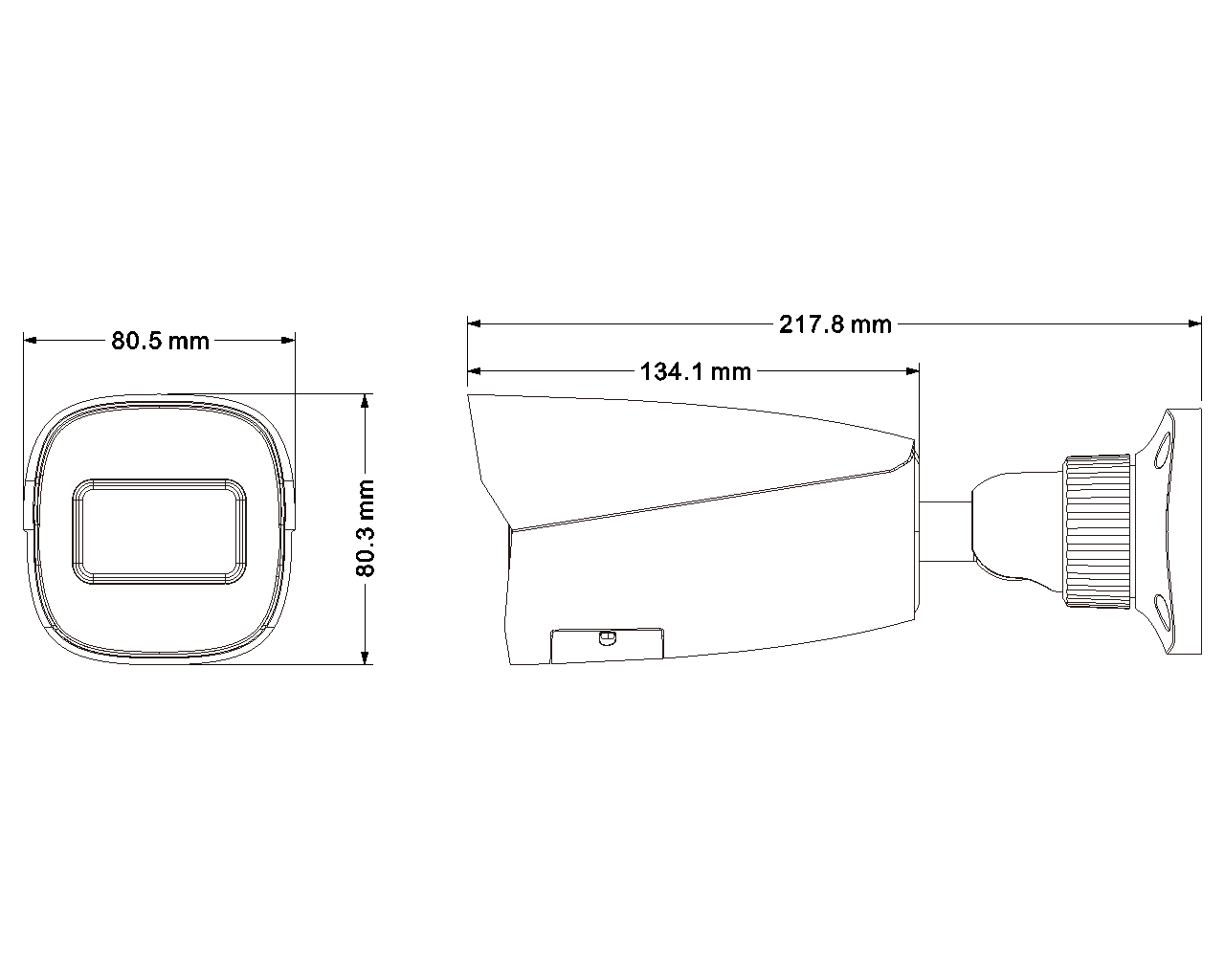

Drawings

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Camera for surveillance system

Model
Standard (Fixed)

Construction type
Bullet shape

Thermal camera
No

Number of pixels (Megapixel)
4

With lens
Yes

Modular (lens and camera separated)
No

Focal size
2,80 - 12,00 mm

Shutter control
DC

Lens connection
Other

Motor zoom
Yes

Suitable for wall mounting
Yes

Suitable for ceiling mounting
Yes

Suitable for corner mounting
No

Suitable for surface mounting
Yes

Flush-mounted installation/built-in installation
No

Suitable for outdoor use
Yes

Communication medium wired
Yes

Communication medium wireless
No

Type of interface
Wi-Fi

Protocol
TCP/IP

Power over Ethernet (PoE)
802.3af (PoE)

Picture system
PAL

Frame rate
25

Property picture system
Colour

With infrared lighting
Yes

Max. infrared reach
50 m

With white light
No

Max. white light reach
0 m

Supports H.264 codec
Yes

Supports H.265 codec
Yes

Supports Motion JPEG codec
Yes

Supports MPEG-4 codec
No

With video motion detector
Yes

With integrated AI analysis
Yes

With slot for memory card
Yes

With memory card
No

Memory capacity
256

Number of digital inputs
0

Number of digital outputs
0

Number of audio inputs
1

Number of audio outputs
0

With integrated audio analysis
No

HDMI-connection
No

Mini HDMI-connection
No

VGA-connection (D-Sub 15-pole)
No

DVI-connection
No

BNC-connection
No

DisplayPort-connection
No

Mini DisplayPort
No

S-Video-connection
No

USB-C-connection
No

Vandal proof
No

Impact strength
Other

Degree of protection (IP)
IP67

Horizontal field of view
3.100,00 - 9.400,00

With microphone
Yes

With loudspeaker
No

Power consumption
550,00 W

Supply voltage
12,00 - 12,01 V

Voltage type
DC

Colour
White

Diameter
8.100,00 mm

Height
81,00 mm

Width
8.100,00 mm

Depth
218,00 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

45. NDAA compliant

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8007352712782

1 NR

26.5x11.5x12 [cm]

818 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
