IP Fisheye Plus cam -6Mpx FF 1,65mm 360° - 46234.010GA

Download as PDF PDF Add to portfolio
Immagine 46234.010GA
download product photo

46234.010GA
Safety / ELVOX CCTV / IP / Cameras

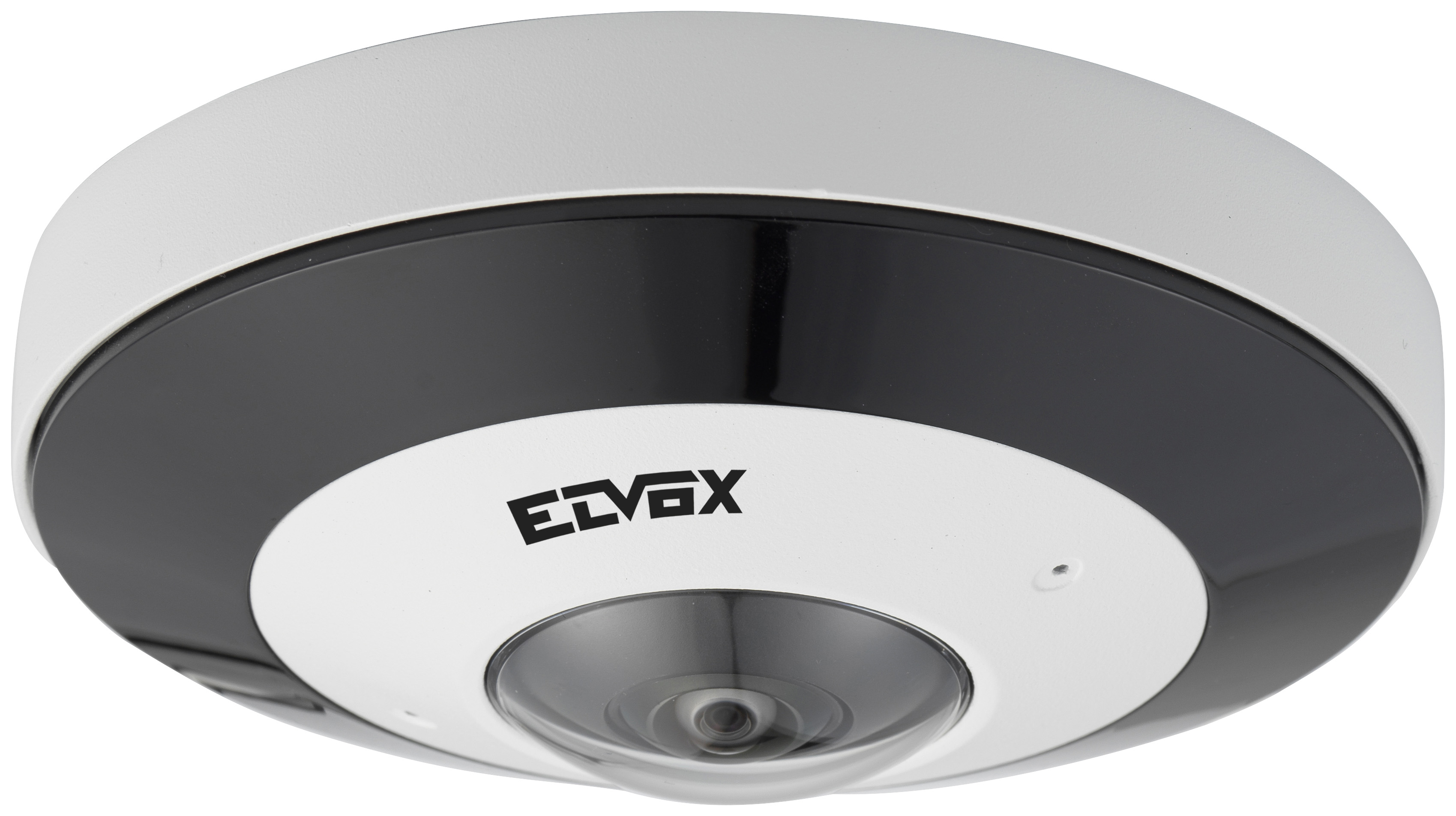

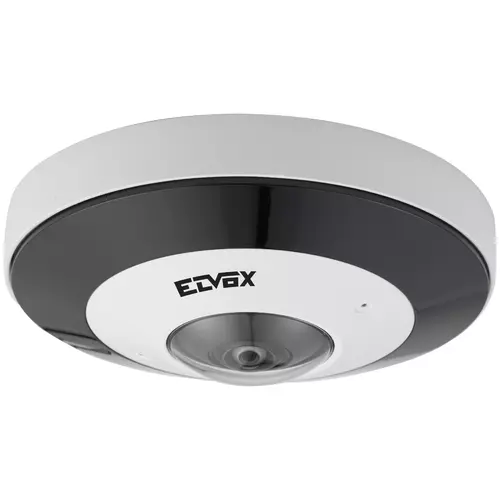

IP Fisheye Plus cam -6Mpx FF 1,65mm 360°
Day&Night colour IP Plus Fisheye camera, CMOS 1/2.5” sensor, 6 Mpx resolution (3296x1856), 1.65mm fixed focus lens with 360° vision, mechanical IR filter, H.265+ Multistream, PoE or 12 V DC power supply, IR 10/20 m, CVBS, Built-in microphone, 1 in/1 out alarm contacts, RS485 interface (Pelco P/D protocols), AV functions with target detection, D-WDR, HLC, BLC, ROI, 3DNR, Mask, Motion, RTSP, protection degree IP67. Dimensions: ø130x46 mm. Weight 520 g

Product Status
3 - Active

You may also be interested in

46922.019
46922.019 - Contact bracket for Fisheye cam
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Other
Construction type
Other
Thermal camera
No
Number of pixels (Megapixel)
5
With lens
Yes
Modular (lens and camera separated)
No
Focal size
1,65 - 1,66 mm
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
Yes
Communication medium wireless
No
Type of interface
Other
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3af (PoE)
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
20 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
256
Number of digital inputs
1
Number of digital outputs
1
Number of audio inputs
1
Number of audio outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
Other
Degree of protection (IP)
IP67
Horizontal field of view
360,00 - 360,10
With microphone
Yes
With loudspeaker
No
Power consumption
8,40 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
13.000,00 mm
Height
39,00 mm
Width
130,00 mm
Depth
46,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

45. NDAA compliant

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352753785
1 NR
14.4x13.5x6.8 [cm]
617.5 [g]
