IP Speed Dome cam-4Mpx 25x 160m IR A.V. - 46235.025D

Download as PDF PDF Add to portfolio
Immagine 46235.025D
download product photo

46235.025D
Safety / ELVOX CCTV / IP / Cameras

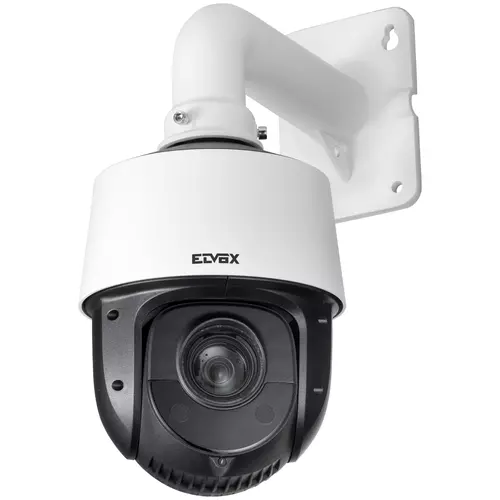

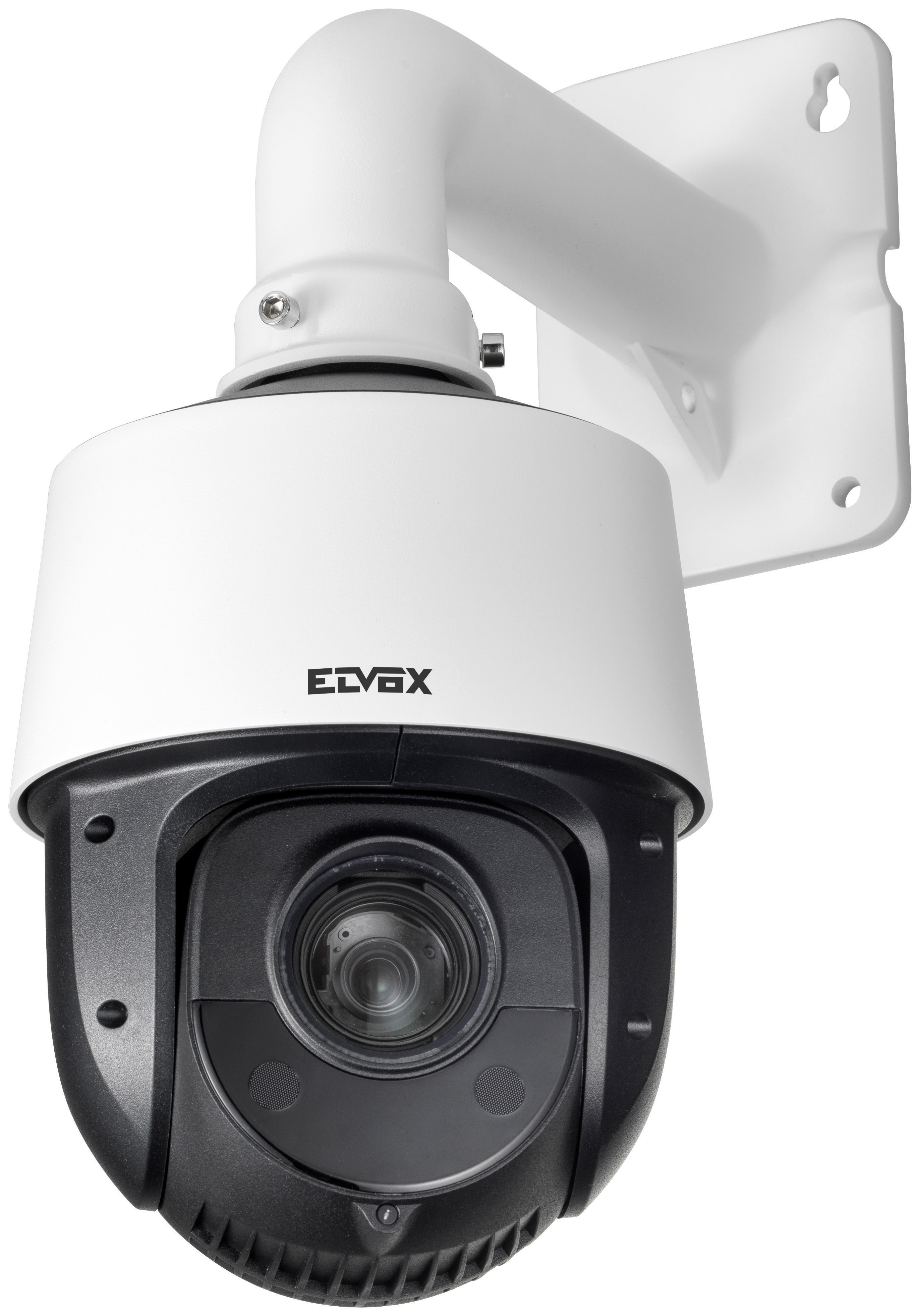

IP Speed Dome cam-4Mpx 25x 160m IR A.V.
Speed Dome IP 4Mpx camera (2560 × 1440, 25fps), 4.8-120 mm lens, mechanical IR filter, 25x optical zoom, IR illuminators with range up to 160m, 256GB SD CARD slot, video analysis functions, WDR, 3DNR, RTSP, 1IN/1OUT alarm management, PoE+ (IEEE 802.3at) or 12 VDC power supply up to 22 W, complete with surface mounting bracket, protection degree IP66. Dimensions without bracket ø 173x268 mm. Weight 2100 g

Product Status
3 - Active

You may also be interested in

46264.002
46264.002 - Protection for PoE RJ45 Ethernet
46917.002.01
46917.002.01 - Pole bracket for IP Bullet/SpeedDome
46918.201
46918.201 - Ceiling bracket for Speed Dome IP 20x
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Pan-Tilt-Zoom
Construction type
Dome shape
Thermal camera
No
Number of pixels (Megapixel)
4
With lens
Yes
Modular (lens and camera separated)
No
Focal size
4,80 - 120,00 mm
Shutter control
DC
Lens connection
Other
Motor zoom
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
Yes
Communication medium wireless
No
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3at (PoE+)
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
160 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
256
Number of digital inputs
1
Number of digital outputs
1
Number of audio inputs
1
Number of audio outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
Other
Degree of protection (IP)
IP66
Horizontal field of view
240,00 - 5.500,00
With microphone
No
With loudspeaker
No
Power consumption
22,00 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
17.300,00 mm
Height
268,00 mm
Width
17.300,00 mm
Depth
173,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

45. NDAA compliant

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352729209
1 NR
32x39x22 [cm]
3,800 [g]
