IP Panorama cam - 8Mpx 180° 20m IR A.V. - 46235.180PAN

Pdf

46235.180PAN
Safety / ELVOX CCTV / IP / Cameras

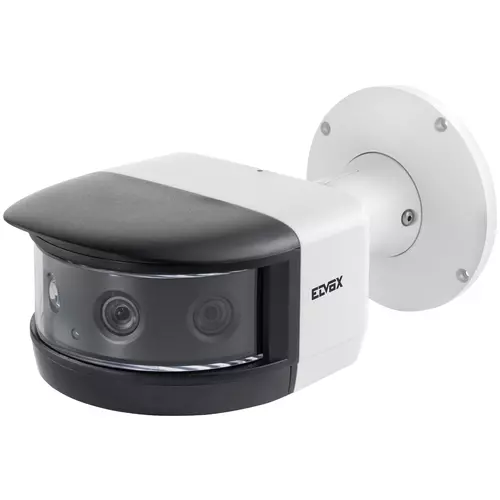

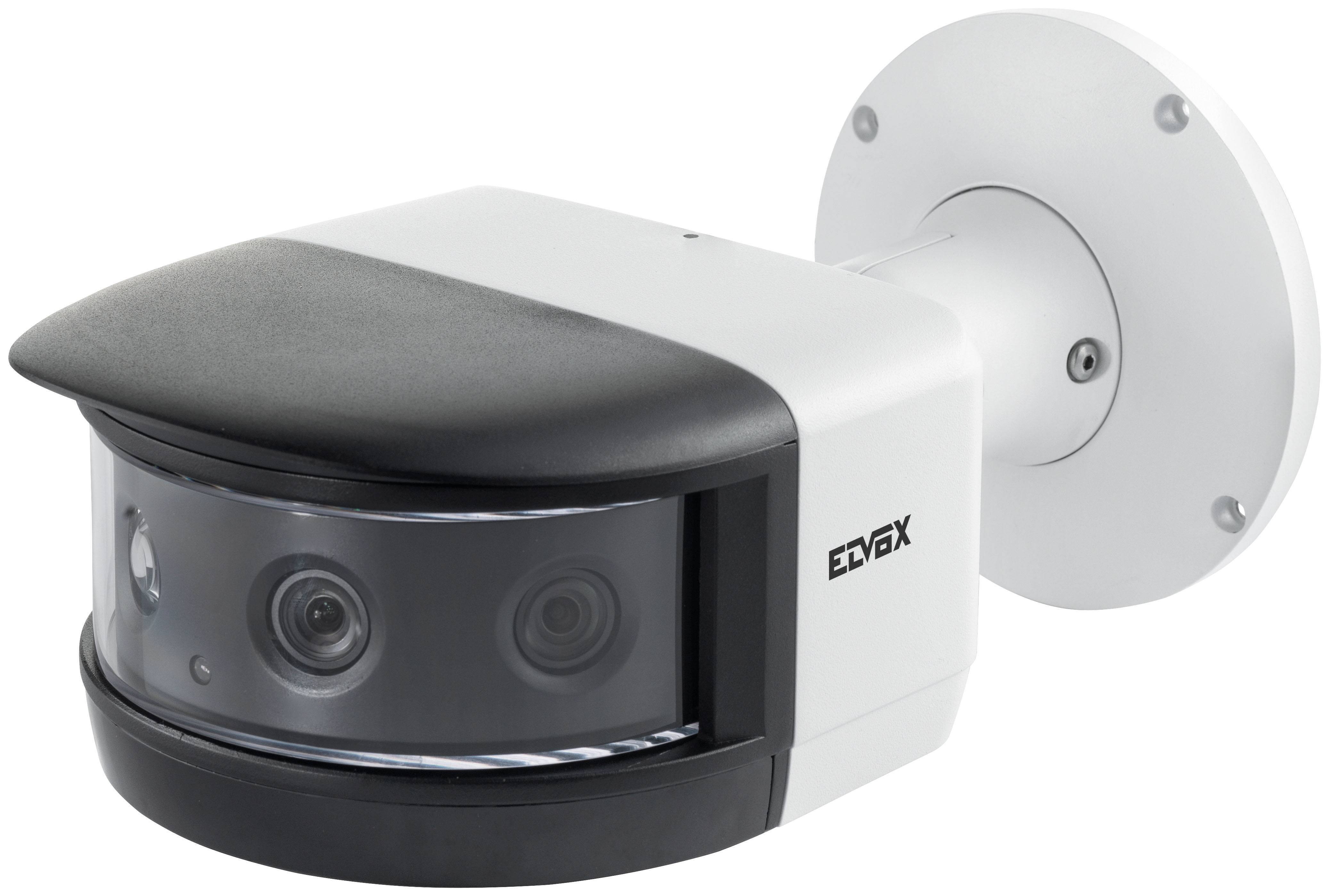

IP Panorama cam - 8Mpx 180° 20m IR A.V.

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Panoramic
Mounting method
Wall
Scope of application
Universal
Transmission
Other
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3 af (PoE)
Picture system
PAL
Property picture system
Colour
Focal size
3,20 - 3,30 mm
Colour
White
Wireless
No
Type of interface
Other
Number of pixels (Megapixel)
8
Memory capacity
256
With lens
Yes
With IR lamp
Yes
Max. infrared reach
20 m
Number of digital inputs
0
Number of digital outputs
0
Number of audio inputs
1
Number of audio outputs
1
Vandal proof
No
Impact strength
None
With video motion detector
Yes
Degree of protection (IP)
IP67
Horizontal field of view
180,00 - 180,10
Power consumption
13,20 W
Supply voltage
0,10 - 12,01 V
Voltage type
DC

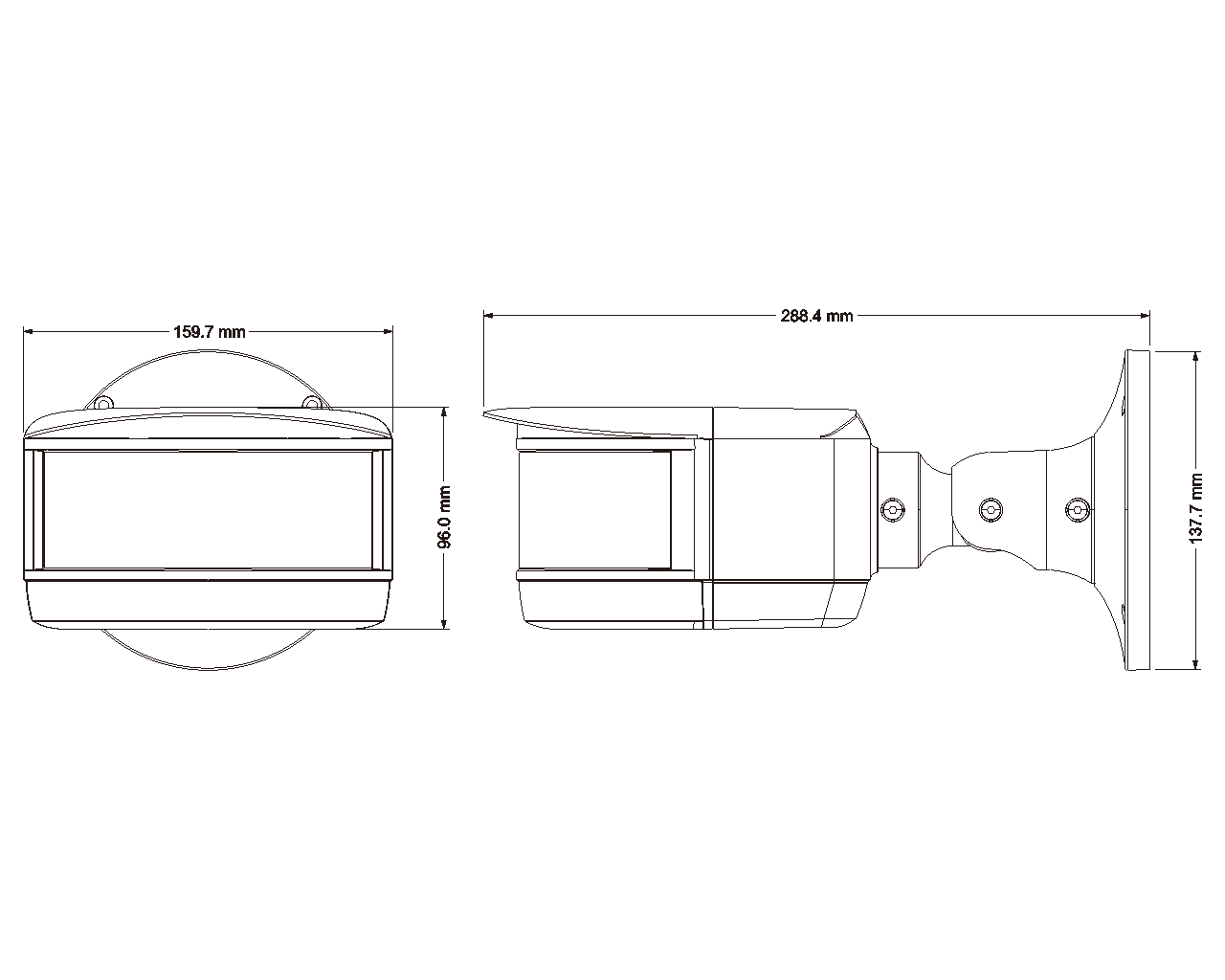

Diameter
289,00 mm
Height
138,00 mm
Width
289,00 mm
Depth
160,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
ONVIF-compliant
Yes

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352679177
1 NR
32x19.8x19.4 [cm]
352 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
