Wi-Fi 3Mpx cam - 2.8mm 120° view - 46237.028B

Download as PDF PDF Add to portfolio
Immagine 46237.028B
Foto gallery 1
Foto gallery 2
Foto gallery 3
Foto gallery 4
Foto gallery 5
download product photo

46237.028B
Safety / ELVOX CCTV / IP / Cameras

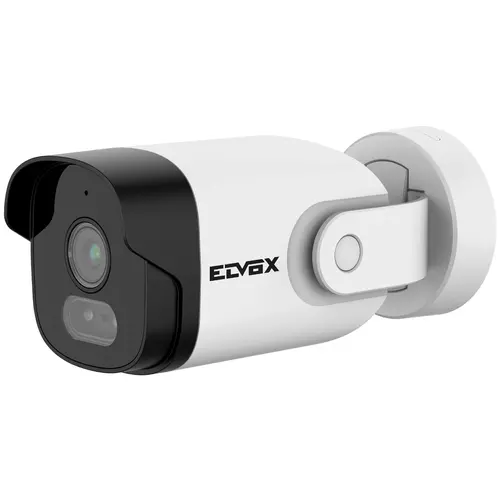

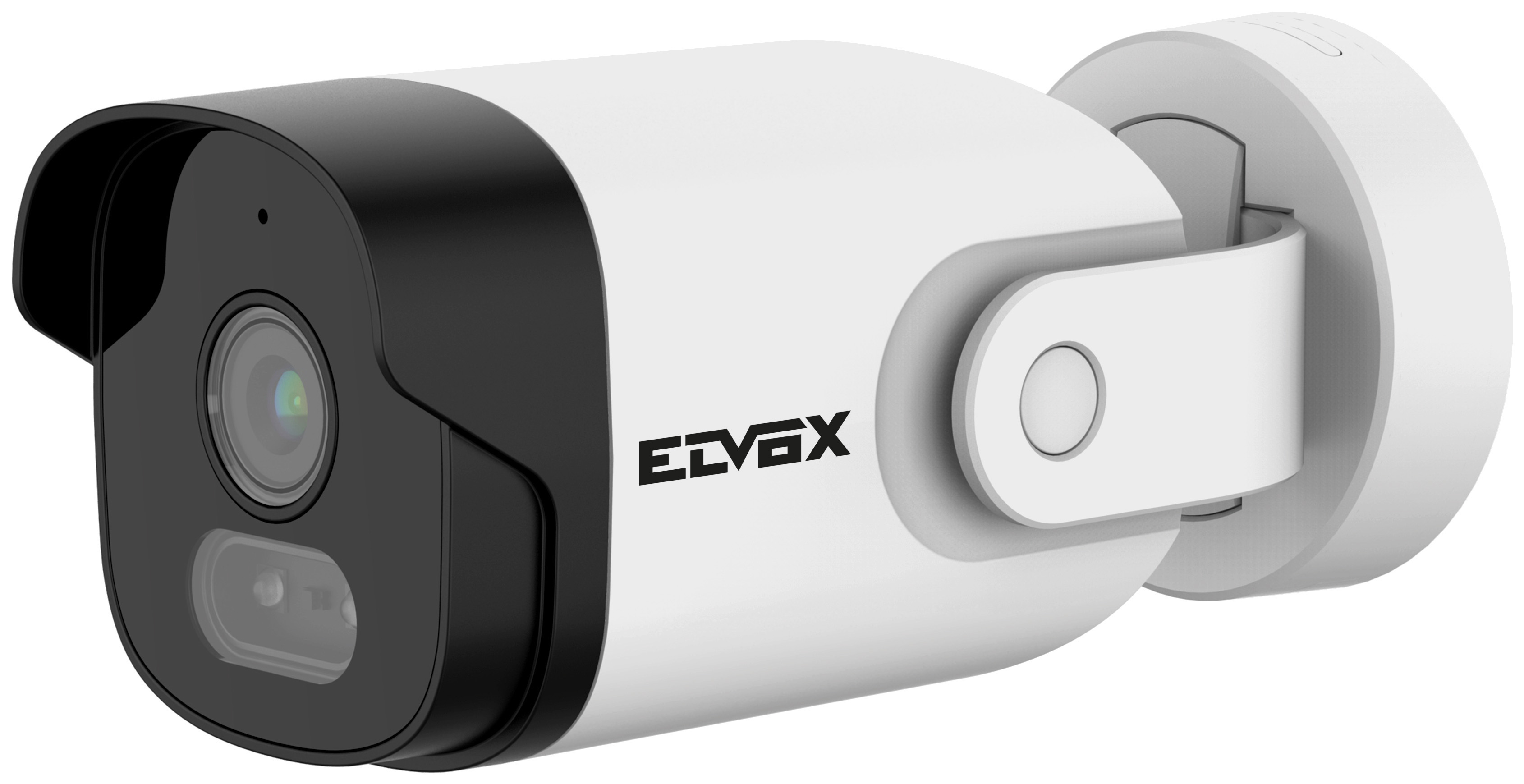

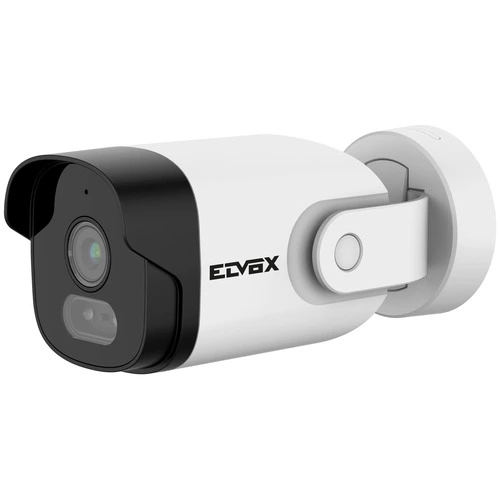

Wi-Fi 3Mpx cam - 2.8mm 120° view

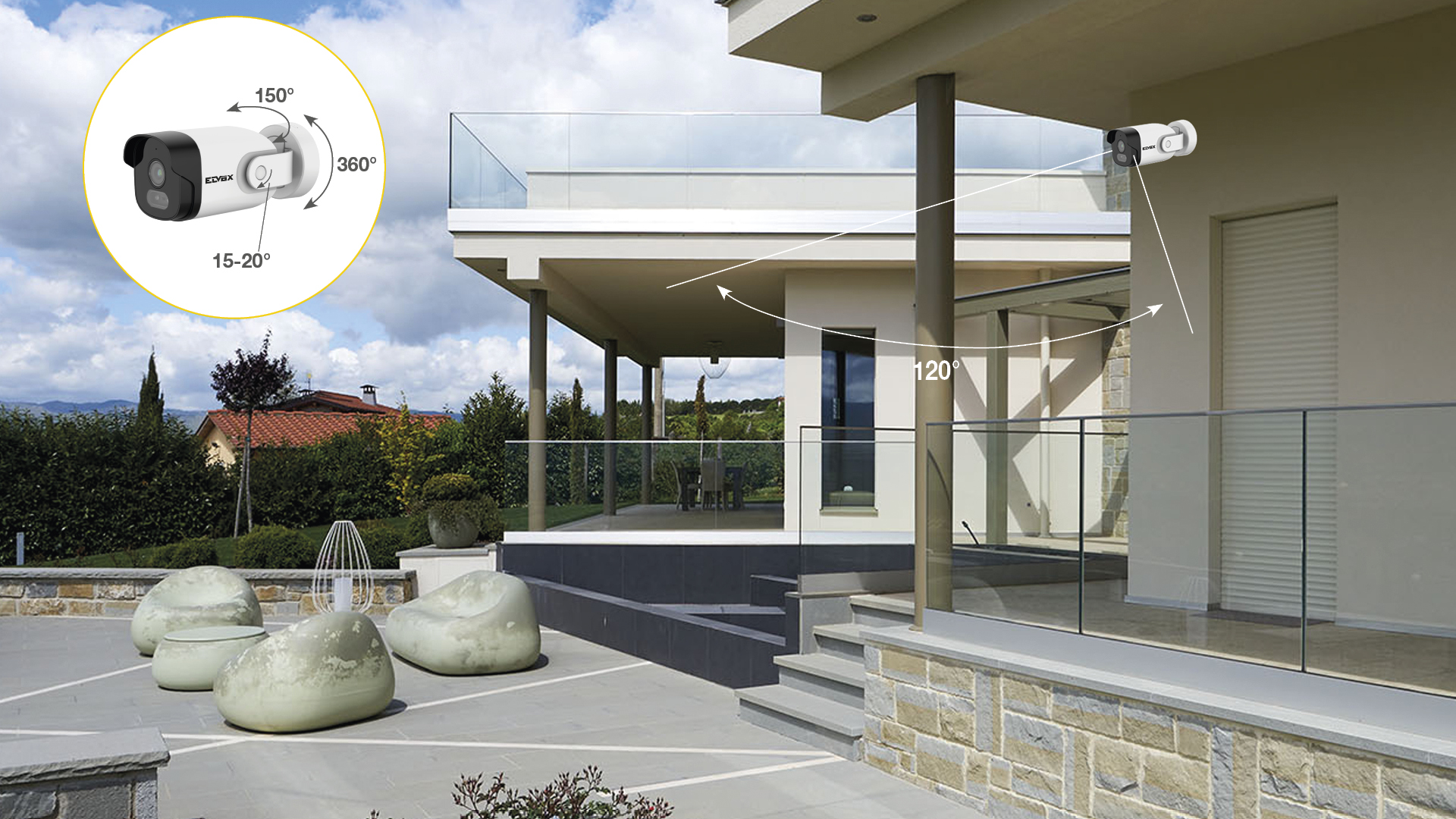

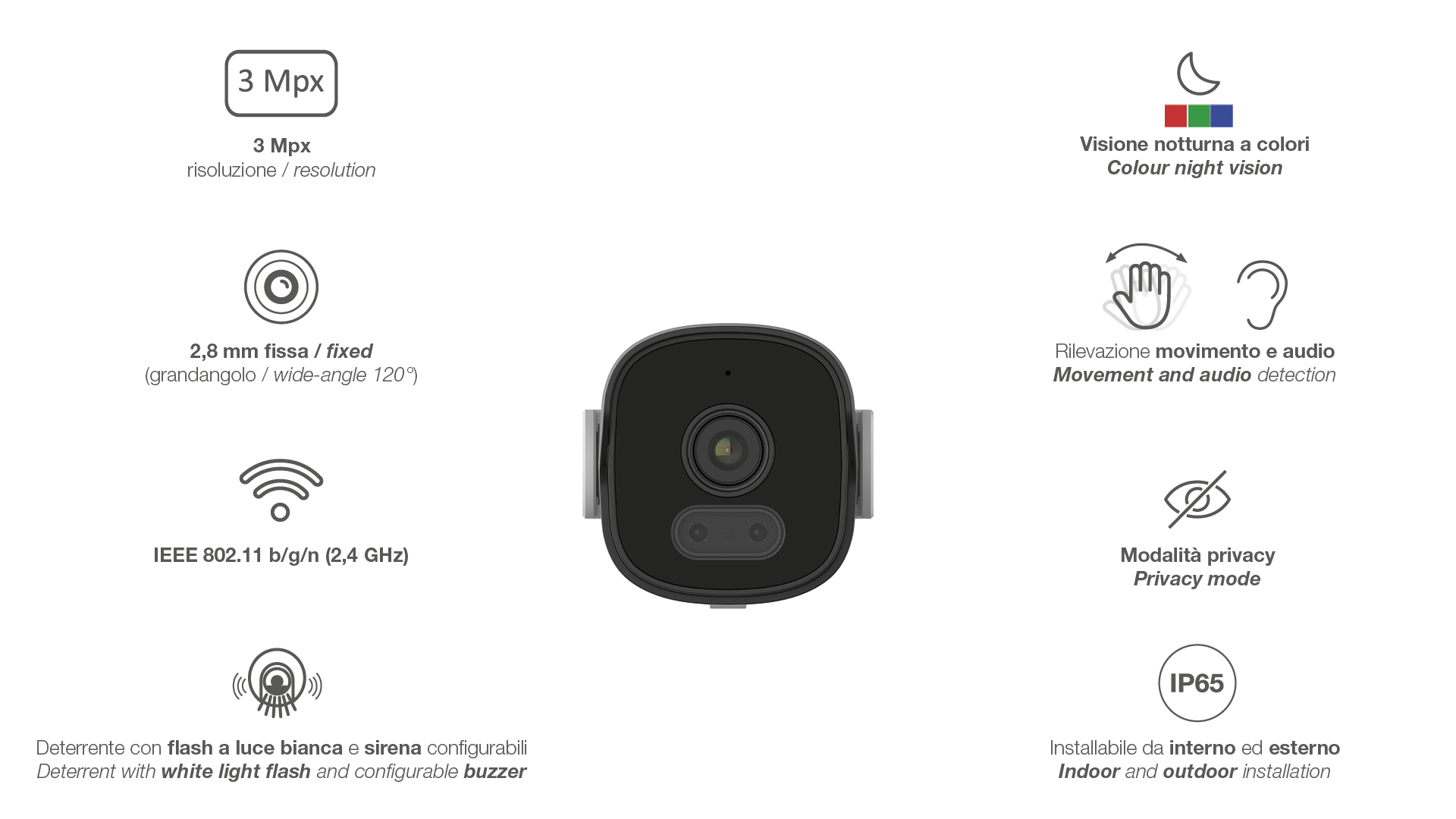

Wi-Fi PT IP Day & Night colour bullet camera, Full-HD resolution 3 Mpx (2304x1296), indoor/outdoor installation (IP65), 2.8 mm fixed focus lens with 120° vision, H.265 compression, plug power supply unit included, IR 10 m, deterrent functions, colour night vision, motion/audio detection and notification sending, RTSP string for integration. Free VIEW Product App available for Android and iOS. Supports SD-Cards up to 128 GB (not included), IEEE 802.11 b/g/n 2.4 Ghz Wi-Fi standard. Dimensions 141 x 64 x 62 mm. Weight 235 g

  • Two-way audio (talk - listen) and Bilingual spoken Italian and English audio feedback

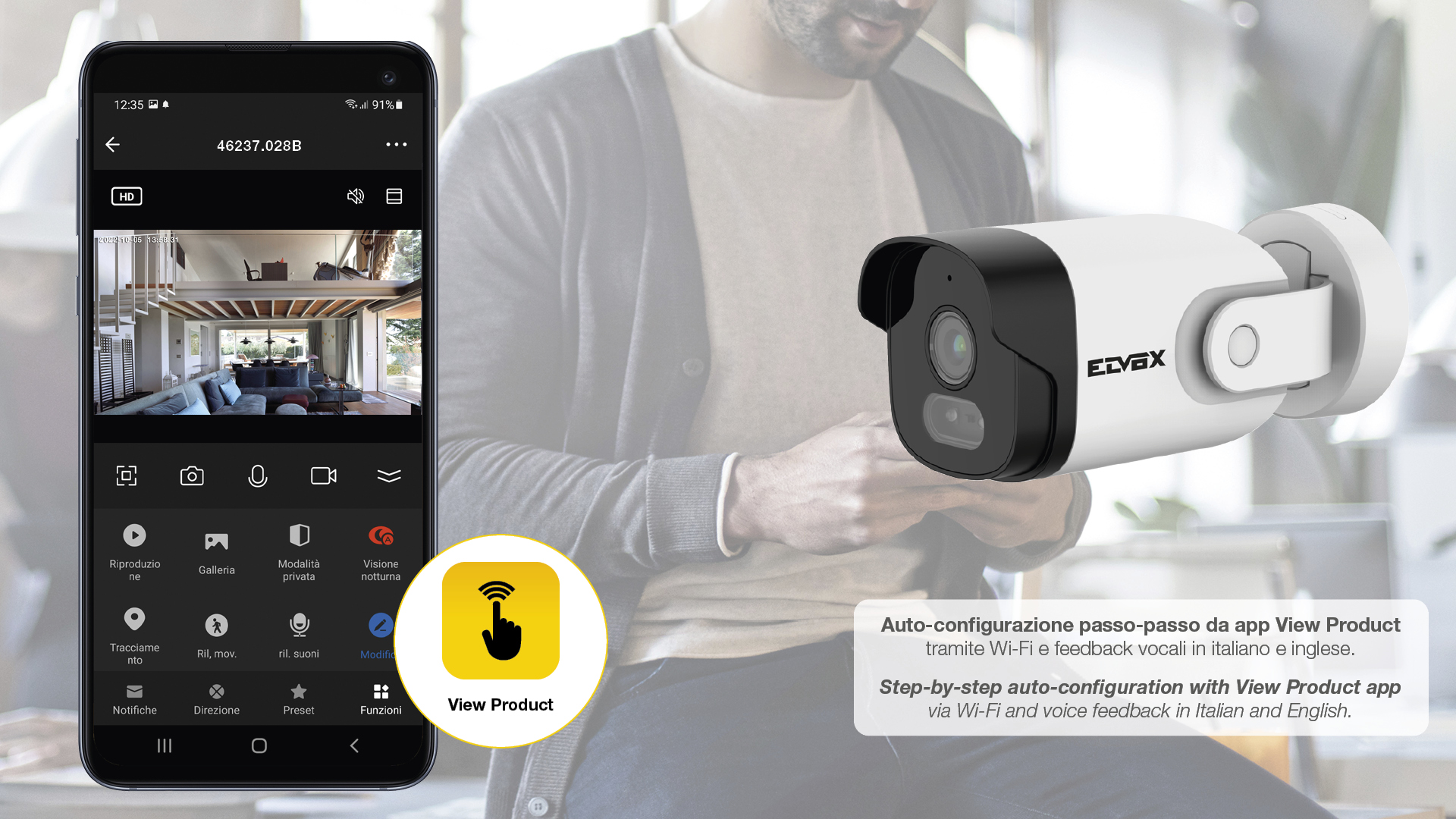

  • Thanks to the App you can control your house from everywhere, free for Android and iOS

Product Status
2 - Will be discontinued

You may also be interested in

00447.CK.B
00447.CK.B - Multi-outlet16A 3DE+4USB+swit.+Wi-Fi+S31

Sheets, Manuals, Documentation

Drawings

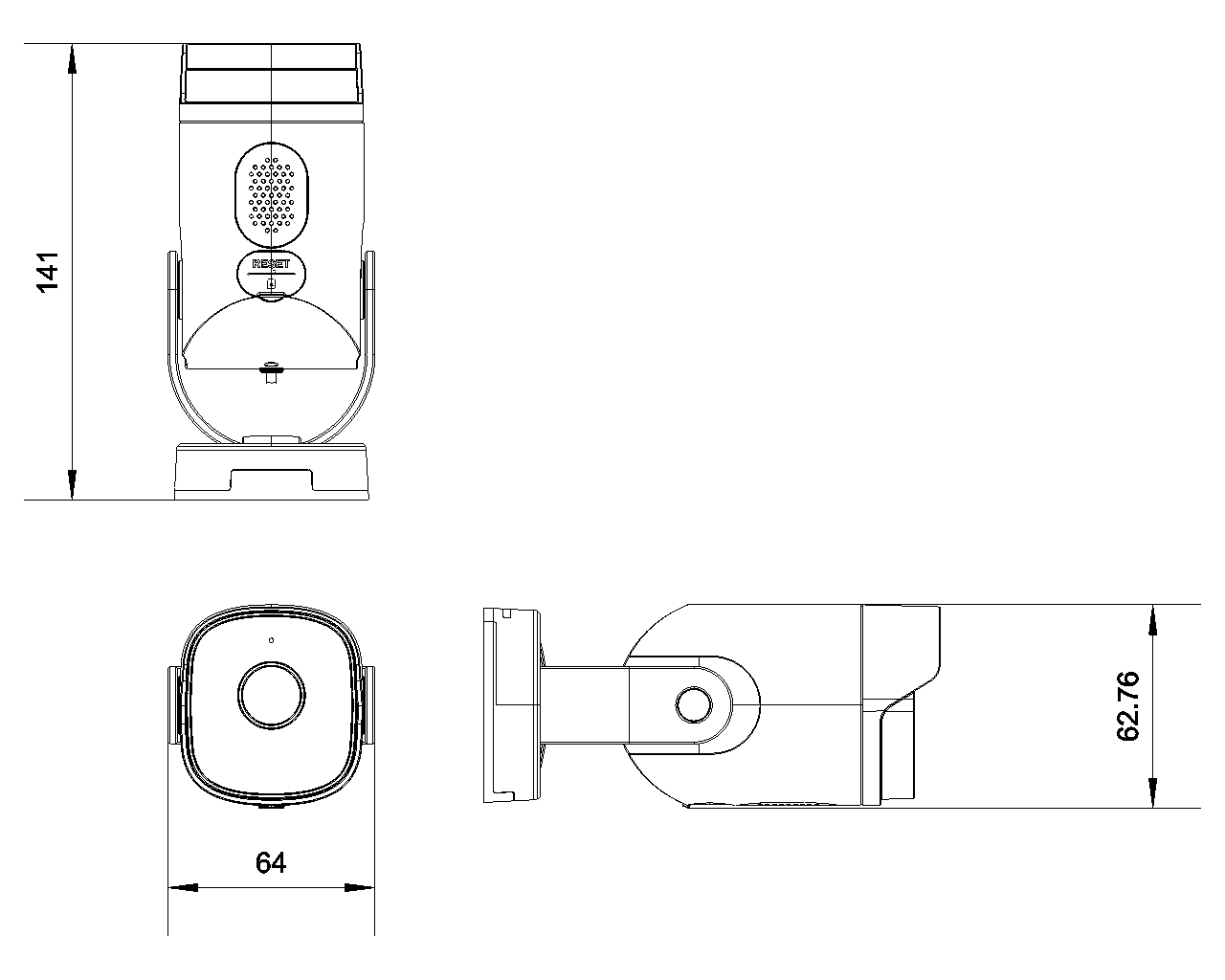

view encumbered art. 46237.028B
PNG DXF

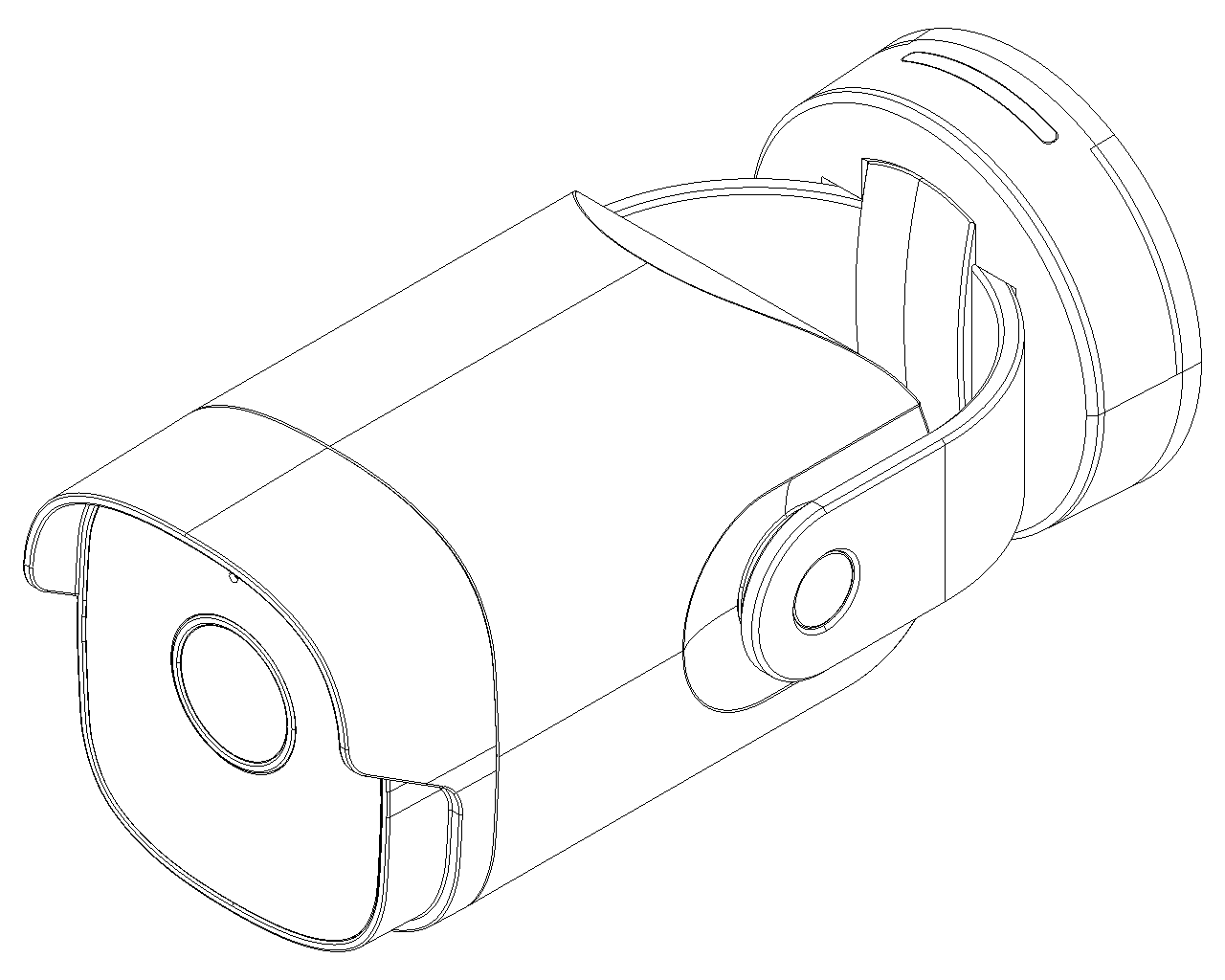

3D view art. 46237.028B
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Bullet shape
Thermal camera
No
Number of pixels (Megapixel)
2
With lens
Yes
Modular (lens and camera separated)
No
Focal size
0,00 - 2,80 mm
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
No
Communication medium wireless
Yes
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3af (PoE)
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
10 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
128
Number of digital inputs
0
Number of digital outputs
0
Number of audio inputs
1
Number of audio outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
Other
Degree of protection (IP)
IP65
Horizontal field of view
0,00 - 120,00
With microphone
Yes
With loudspeaker
Yes
Power consumption
12,00 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
6.400,00 mm
Height
62,00 mm
Width
6.400,00 mm
Depth
141,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352722415
1 NR
17.2x16.3x7.2 [cm]
522 [g]
