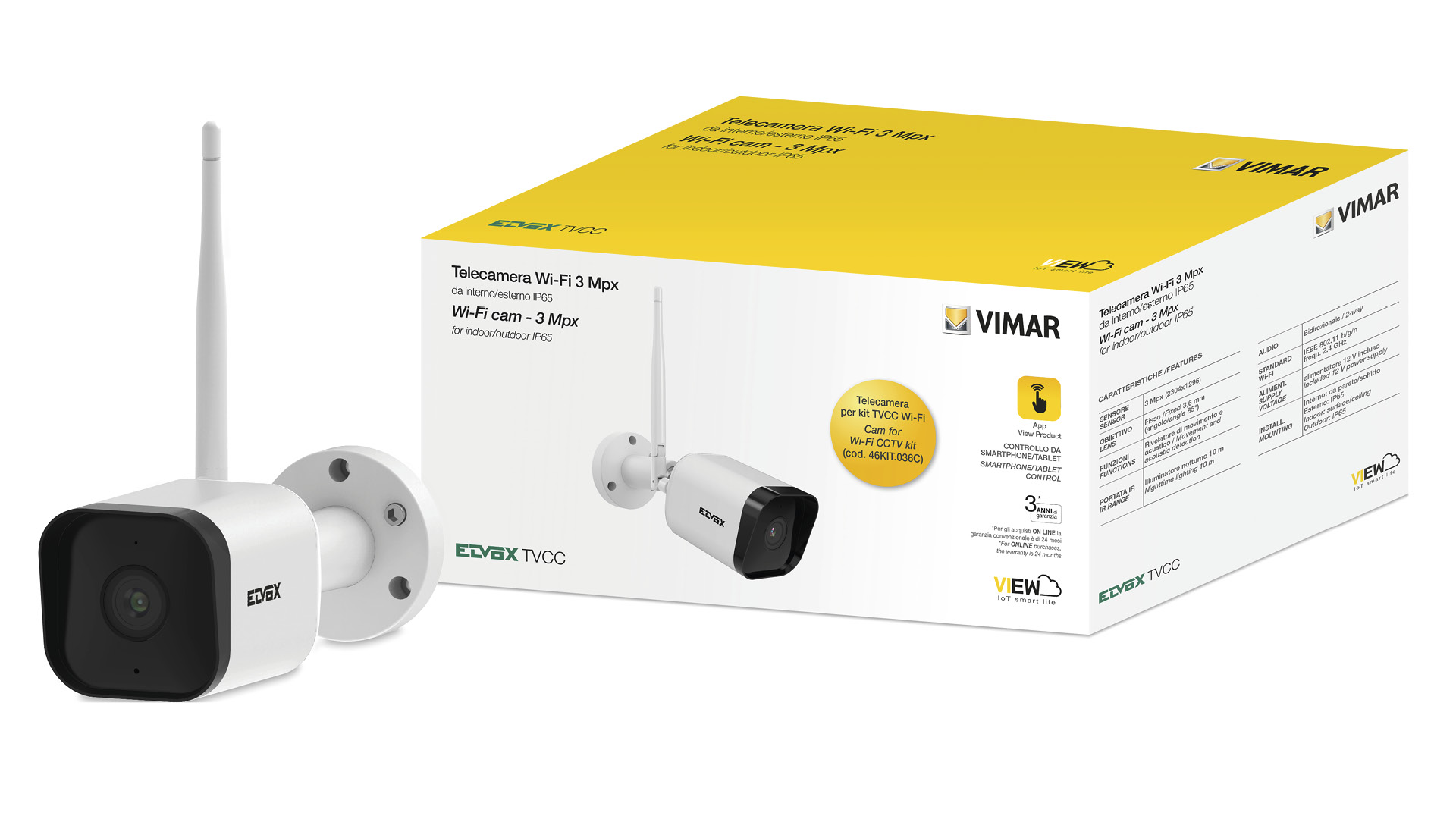

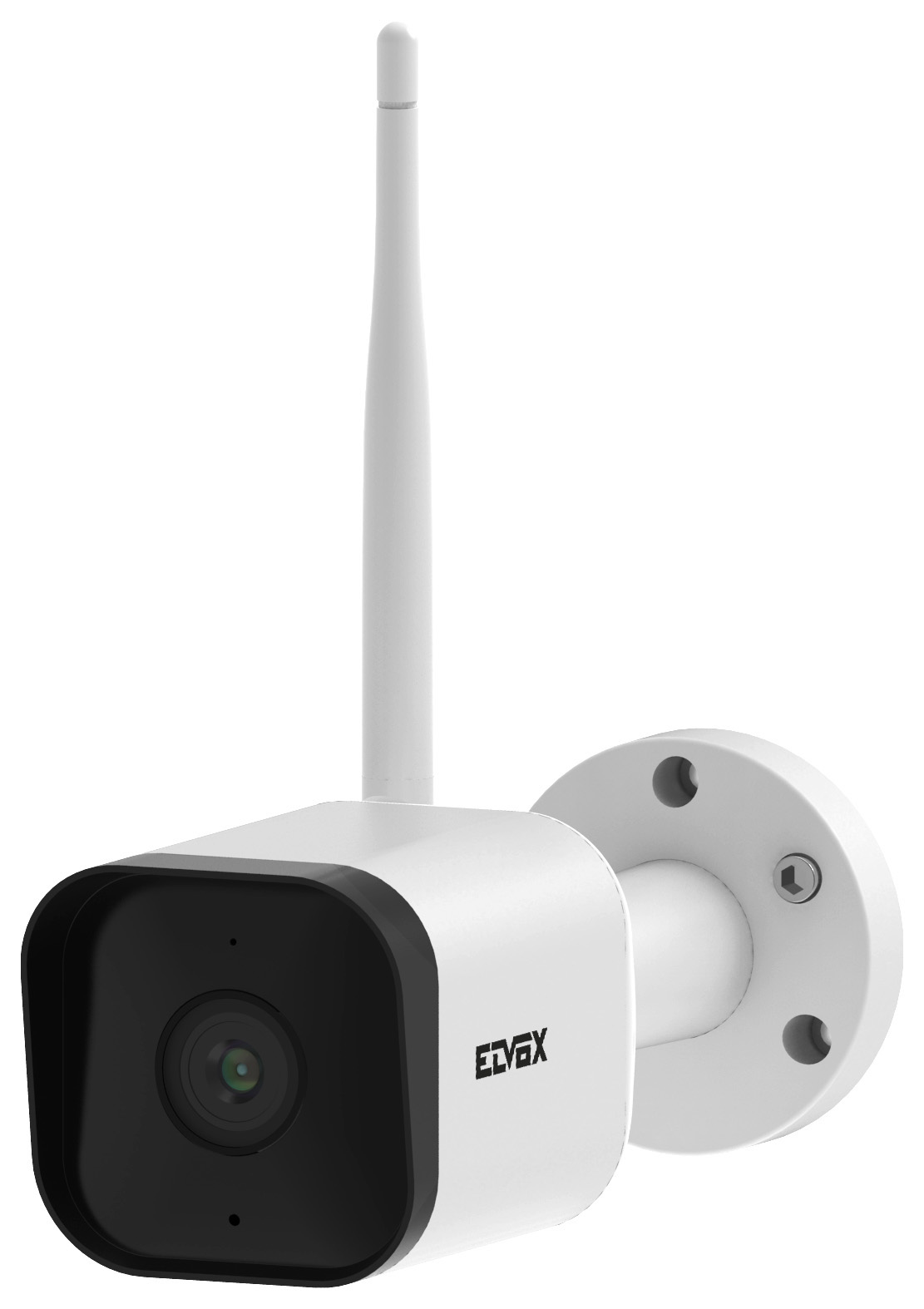

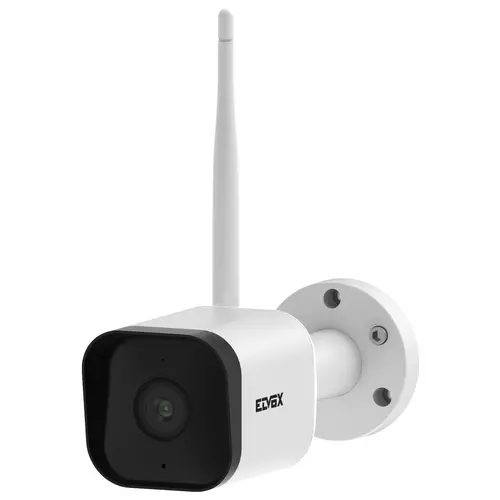

Additional camera for 46KIT.036C kit - 46242.036C

Pdf
Vimar - 46242.036C - Additional camera for 46KIT.036C kit
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 46242.036C - Additional camera for 46KIT.036C kit
46242.036C

ELVOX CCTV / Digital IP / Special cameras

Additional camera for 46KIT.036C kit

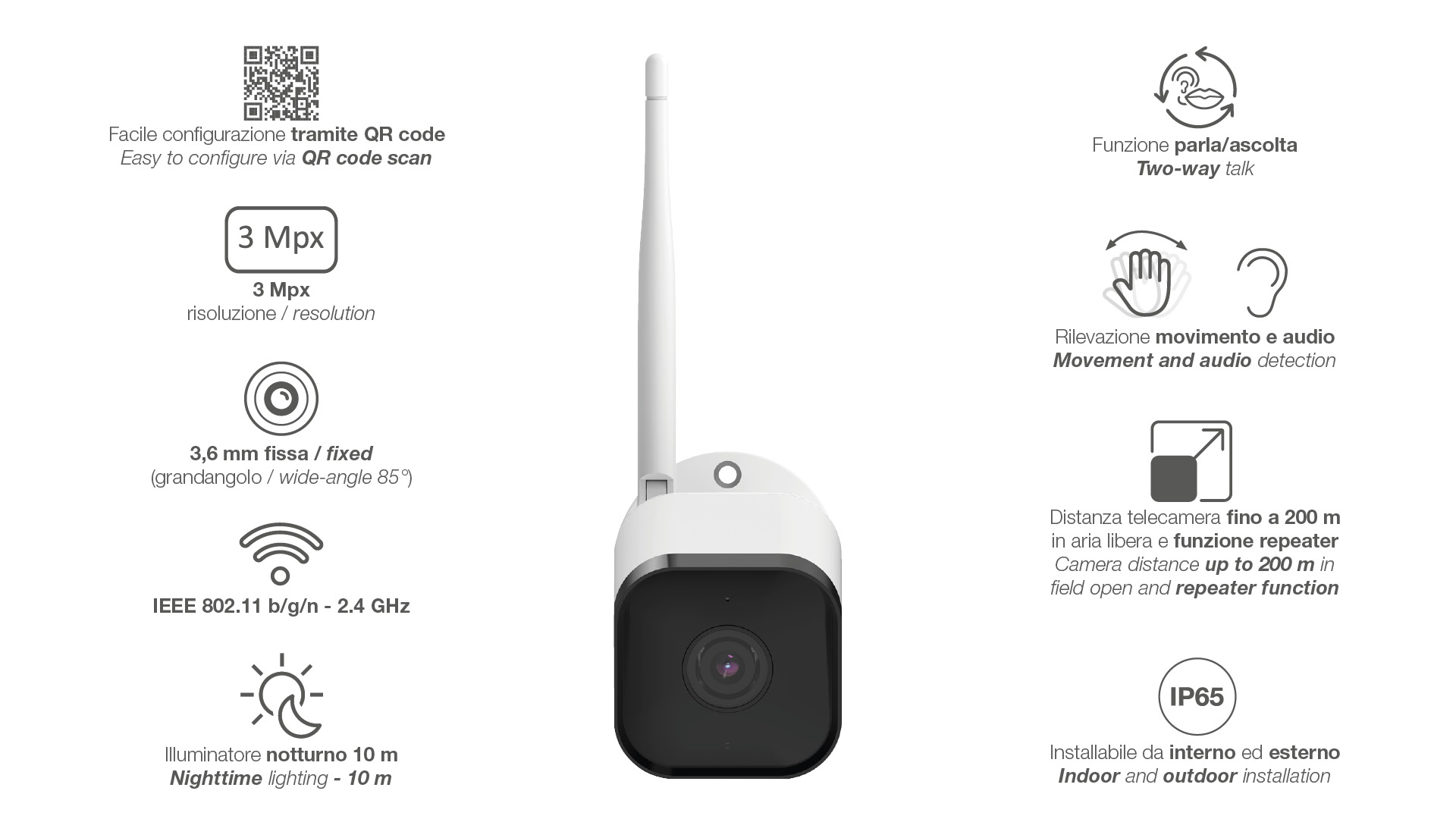

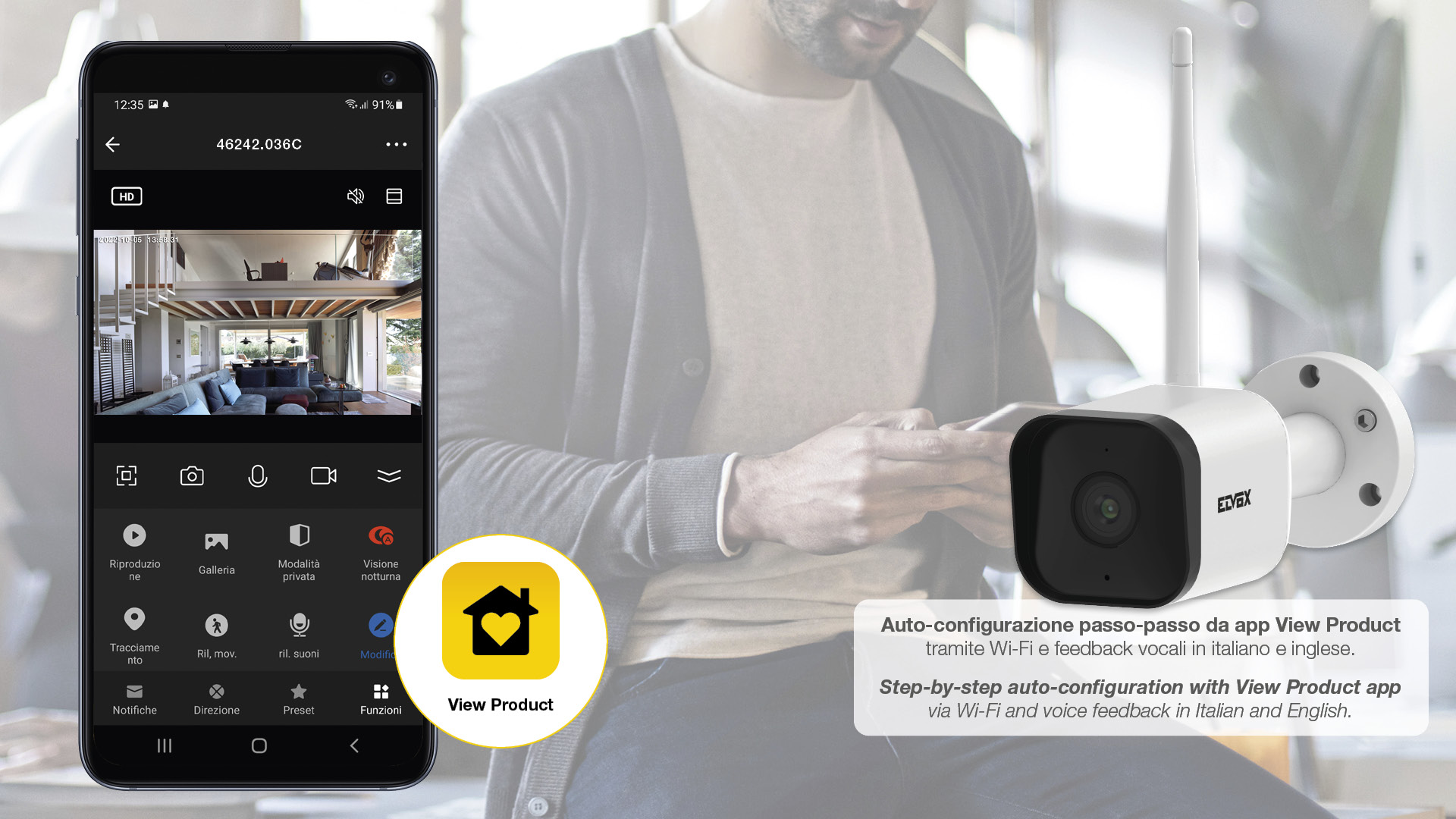

  • The kit is supplied pre-configured and ready to use. It is easy to manage using the View Product App
  • Cameras and NVR allow viewing and recording, for each image channel, with a resolution of up to 3 Mpx
  • The audio is detected automatically, motion and the presence of people (available on two channels) by sending push notifications on the View Product App
  • Camera distance: up to 200 m in open air and repeater function
  • High definition pictures can be viewed on a monitor/TV via an HDMI cable, also guaranteeing supervision in the absence of a network connection

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Alarm installations, emergency call and signalling
Class
Camera for monitoring system
Mounting method
Wall/ceiling
Scope of application
Universal
Picture system
PAL
Property picture system
Colour
Colour
White
Wireless
Yes
Type of interface
Wi-Fi
With IR lamp
Yes
Vandal proof
No
Supply voltage
12,00 - 12,01 v
Voltage type
DC
Diameter
16.300 mm
Height
163,00 mm
Width
5.800 mm
Depth
163,00 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352706613
1 NR
20x16x14 [cm]
600 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
