10-port Ethernet switch Gigabit 8 PoE at - 46260.10P.02

Pdf

46260.10P.02
Safety / ELVOX CCTV / IP / Networking

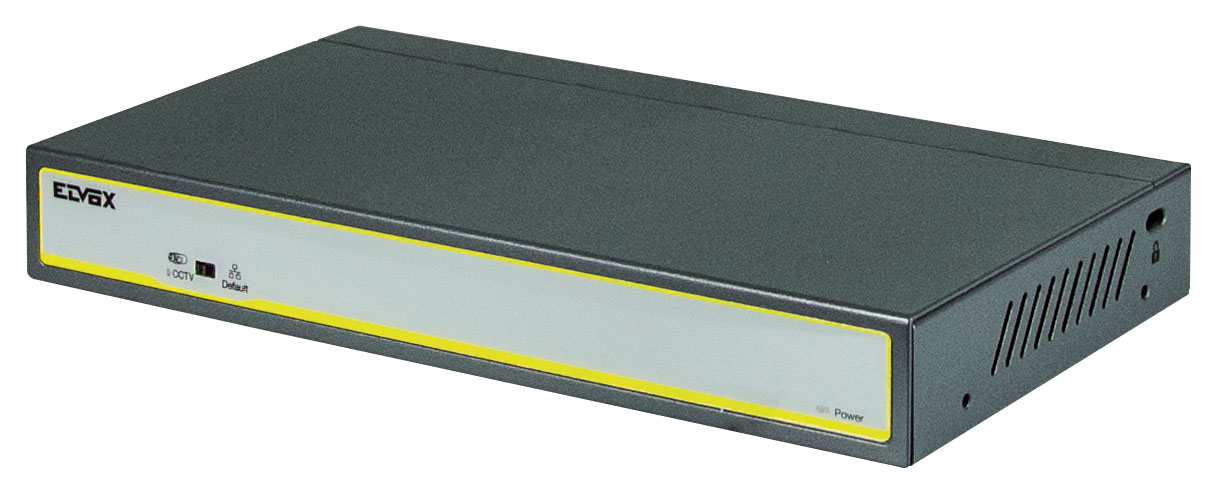

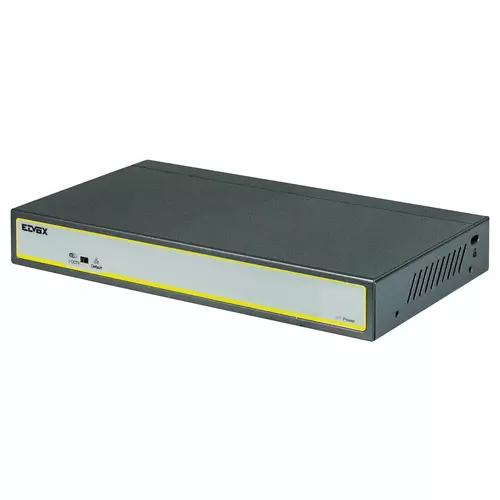

10-port Ethernet switch Gigabit 8 PoE at
Fast Ethernet switch with 10 ports 10/100/1000 Mbps auto-sensing, auto MDI/MDI-X, working LED, 8 PoE Standard IEEE 802.3af/at (End-Span 1/2+ ,3/6-) + 2 Uplink ports. Supported with 10/100/1000 BASE-T, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3X standards, MAC 4K table. Power supply 54 Vdc 2,2 A, power unit included. Dimensions: 200×101.8×27 mm

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Data and telecommunication
Class
Network switch
Ethernet
Yes
Number of ports 10/100 Mbps RJ45
0
Number of ports 10/100/1000 Mbps RJ45
10
Number of ports 1000 Mbps RJ45
10
Number of ports 10 Gbps RJ45
0
Number of ports 10 Gbps Mini GBIC
0
Number of ports 100/1000 Mbps Mini GBIC
0
Number of ports 1000 Mbps Mini GBIC
0
Number of ports 40 Gbps Mini GBIC
0
Number of ports 100 Gbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
0
Number of ports 1000 Mbps GBIC
0
Number of ports 10/100 Mbps M12
0
Number of ports 100 Mbps SC
0
Number of ports 1000 Mbps SC (SX)
0
Number of ports 1000 Mbps SC (LX)
0
Number of ports 100 Mbps ST
0
Number of ports 100 Mbps POF
0
Number of ports 1000 Mbps POF
0
Number of other ports
10
Power over Ethernet (PoE)
802.3 at (PoE+)
Number of ports PoE
8
Max. PoE power
120 W
Max. power consumption
5 W
Redundant power supply
No
Mounting method
Desk type
Manageable
No
Degree of protection (IP)
Other
Height
27,00 mm
Width
200,0 mm
Depth
101,80 mm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406307170
1 NR
22x13x9 [cm]
1,391 [g]
Barcode Qty 15 NR
8013406307385
15 NR
56x53x32 [cm]
21,515 [g]
