Bullet AHD cam 5Mpx 3,6mm - 4651.036ES

Download as PDF PDF Add to portfolio
Immagine 4651.036ES
download product photo

4651.036ES
Safety / ELVOX CCTV / AHD / Cameras

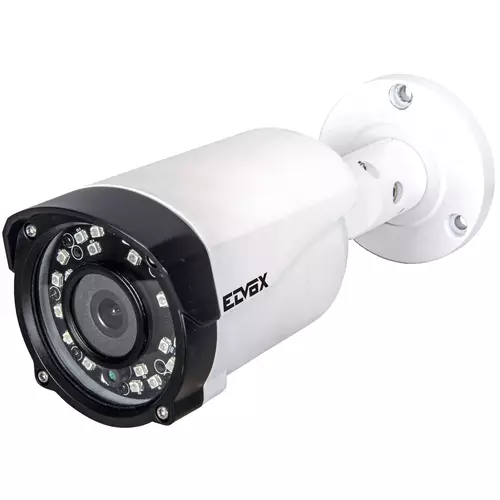

Bullet AHD cam 5Mpx 3,6mm
Day & Night AHD Bullet camera, 5 Mpx resolution, 1/2.5” sensor, mechanical IR filter, 3.6mm fixed lens, CsC function, 0 lux IR in ON sensitivity, protection degree IP66, IR illuminator with range up to 15m, Smart-IR, AHD-CVBS switching (via CsC), automatic functions: BLC, 2DNR, AGC, WHITEBAL, D-WDR. 12 V DC 400 mA power supply, complete with bracket and protected cable outlet. Dimensions: 167 (W) x 84(H) x 70 (Ø) mm. Weight 490 g

Product Status
3 - Active

You may also be interested in

46917.004
46917.004 - Pole bracket for AHD FF+VF camera
46901.015
46901.015 - Supply unit 100-240V~ 12Vdc 1,5A
46902.010
46902.010 - Supply unit 100-240V~ 12Vdc 1A
46922.033
46922.033 - Contacts box+supply unit
46922.030
46922.030 - Contacts bracket Bullet VF

Sheets, Manuals, Documentation

Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Bullet shape
Thermal camera
No
Number of pixels (Megapixel)
5
With lens
Yes
Modular (lens and camera separated)
No
Focal size
0,00 - 3,60 mm
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
Yes
Communication medium wireless
No
Type of interface
None
Protocol
Other
Power over Ethernet (PoE)
None
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
15 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
No
Supports H.265 codec
No
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
No
With slot for memory card
No
With memory card
No
Memory capacity
0
Number of digital inputs
0
Number of digital outputs
0
Number of audio inputs
0
Number of audio outputs
0
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
Yes
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
Other
Degree of protection (IP)
IP66
Horizontal field of view
0,00 - 79,00
With microphone
No
With loudspeaker
No
Power consumption
4,80 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
7.000,00 mm
Height
84,00 mm
Width
7.000,00 mm
Depth
167,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352717480
1 NR
20.8x11.5x11.2 [cm]
595.5 [g]
