Bullet AHD cam 4K 2,8-12mm

4651.2812F
Safety / ELVOX CCTV / AHD / Cameras

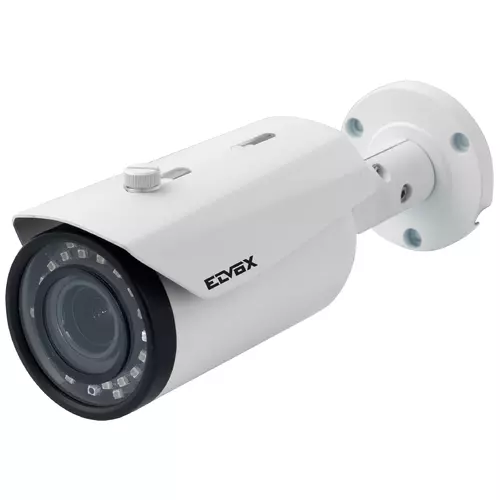

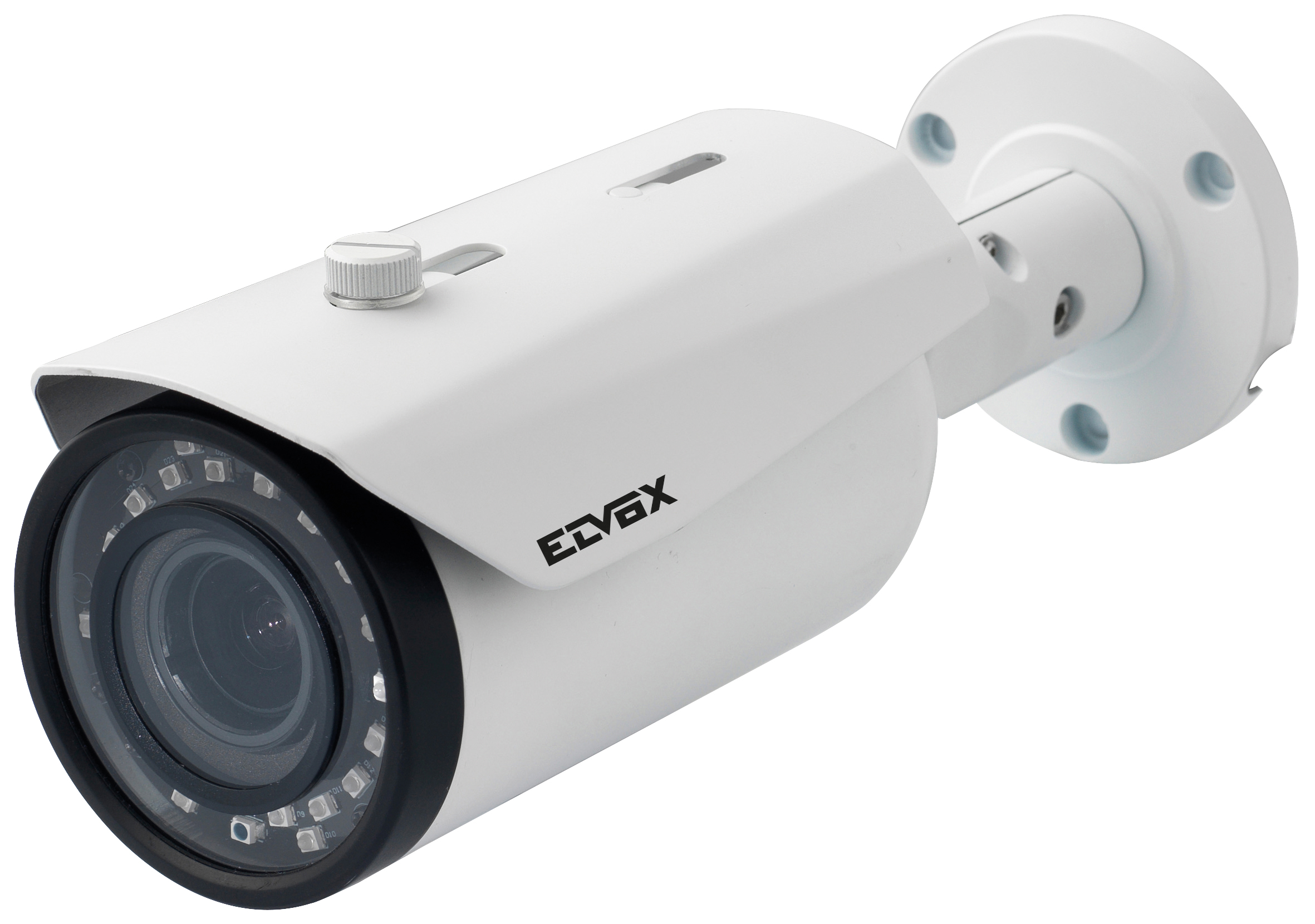

Bullet AHD cam 4K 2,8-12mm
Day & Night AHD Bullet camera, 8 Mpx resolution, 1/2.5” sensor, mechanical IR filter, 2.8-12mm varifocal lens, CsC function, 0 lux IR in ON sensitivity, protection degree IP66, IR illuminator with range up to 30m, Smart-IR, AHD-CVBS switching (via CsC), automatic functions: BLC, 2DNR, AGC, WHITE-BAL, D-WDR. 12 V DC 400 mA power supply, complete with bracket and protected cable outlet. Dimensions 193(W) x 90(H) 69(Ø) mm. Weight 510 g

Product Status
3 - Active

You may also be interested in

46917.004 - Pole bracket for AHD FF+VF camera

46901.015 - Supply unit 100-240V~ 12Vdc 1,5A

46902.010 - Supply unit 100-240V~ 12Vdc 1A

46922.033 - Contacts box+supply unit

46922.030 - Contacts bracket Bullet VF

Sheets, Manuals, Documentation

Multilanguage instructions sheet (756 kb)

Class group
Alarm installations, emergency call and signalling

Class
Camera for surveillance system

Model
Standard (Fixed)

Construction type
Bullet shape

Thermal camera
No

Number of pixels (Megapixel)
8

With lens
Yes

Modular (lens and camera separated)
No

Focal size
2,80 - 12,00 mm

Shutter control
DC

Lens connection
Other

Motor zoom
Yes

Suitable for wall mounting
Yes

Suitable for ceiling mounting
Yes

Suitable for corner mounting
No

Suitable for surface mounting
Yes

Flush-mounted installation/built-in installation
No

Suitable for outdoor use
Yes

Communication medium wired
Yes

Communication medium wireless
No

Type of interface
None

Protocol
Other

Power over Ethernet (PoE)
None

Picture system
PAL

Frame rate
25

Property picture system
Colour

With infrared lighting
Yes

Max. infrared reach
30 m

With white light
No

Max. white light reach
0 m

Supports H.264 codec
No

Supports H.265 codec
No

Supports Motion JPEG codec
Yes

Supports MPEG-4 codec
No

With video motion detector
Yes

With integrated AI analysis
No

With slot for memory card
No

With memory card
No

Memory capacity
0

Number of digital inputs
0

Number of digital outputs
0

Number of audio inputs
0

Number of audio outputs
0

With integrated audio analysis
No

HDMI-connection
No

Mini HDMI-connection
No

VGA-connection (D-Sub 15-pole)
No

DVI-connection
No

BNC-connection
Yes

DisplayPort-connection
No

Mini DisplayPort
No

S-Video-connection
No

USB-C-connection
No

Vandal proof
No

Impact strength
Other

Degree of protection (IP)
IP66

Horizontal field of view
3.200,00 - 9.200,00

With microphone
No

With loudspeaker
No

Power consumption
4,80 W

Supply voltage
12,00 - 12,01 V

Voltage type
DC

Colour
White

Diameter
6.900,00 mm

Height
90,00 mm

Width
6.900,00 mm

Depth
193,00 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8007352717527

1 NR

25.5x15.5x13.5 [cm]

691 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
