46534.037
Safety / ELVOX CCTV / AHD / Cameras

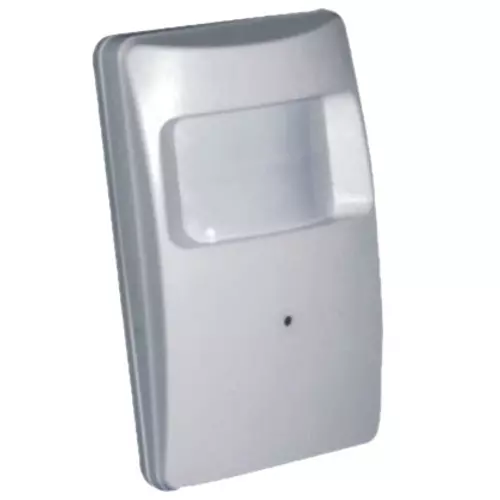

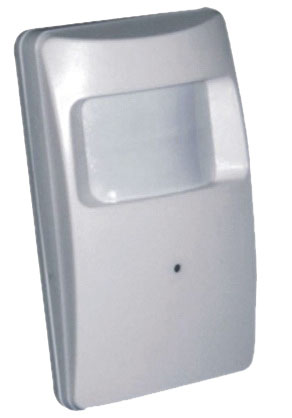

AHD PIR 720p camera 3,7mm lens
Special AHD camera disguised as a PIR sensor, HD 720p resolution, 1/4 in sensor, electronic IR filter, Pinhole 3.7 mm fixed lens, sensitivity 1 lux. Power supply 12 Vdc -100 mA. Dimensions 150x60x30 mm. Weight 166 g
Product Status
2 - Will be discontinued
Sheets, Manuals, Documentation
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Camera for surveillance system
Model
Standard (Fixed)
Standard (Fixed)
Construction type
Other
Other
Thermal camera
No
No
Number of pixels (Megapixel)
1
1
With lens
Yes
Yes
Modular (lens and camera separated)
No
No
Focal size
3,70 - 3,71 mm
3,70 - 3,71 mm
Shutter control
DC
DC
Lens connection
Other
Other
Motor zoom
No
No
Suitable for wall mounting
Yes
Yes
Suitable for ceiling mounting
Yes
Yes
Suitable for corner mounting
No
No
Suitable for surface mounting
Yes
Yes
Flush-mounted installation/built-in installation
No
No
Suitable for outdoor use
No
No
Communication medium wired
Yes
Yes
Communication medium wireless
No
No
Type of interface
Other
Other
Protocol
Other
Other
Power over Ethernet (PoE)
None
None
Picture system
PAL
PAL
Frame rate
25
25
Property picture system
Colour
Colour
With infrared lighting
No
No
Max. infrared reach
0 m
0 m
With white light
No
No
Max. white light reach
0 m
0 m
Supports H.264 codec
No
No
Supports H.265 codec
No
No
Supports Motion JPEG codec
Yes
Yes
Supports MPEG-4 codec
No
No
With video motion detector
No
No
With integrated AI analysis
No
No
With slot for memory card
No
No
With memory card
No
No
Memory capacity
0
0
Number of digital inputs
0
0
Number of digital outputs
0
0
Number of audio inputs
0
0
Number of audio outputs
0
0
With integrated audio analysis
No
No
HDMI-connection
No
No
Mini HDMI-connection
No
No
VGA-connection (D-Sub 15-pole)
No
No
DVI-connection
No
No
BNC-connection
Yes
Yes
DisplayPort-connection
No
No
Mini DisplayPort
No
No
S-Video-connection
No
No
USB-C-connection
No
No
Vandal proof
No
No
Impact strength
Other
Other
Degree of protection (IP)
Other
Other
Horizontal field of view
52,00 - 52,10
52,00 - 52,10
With microphone
No
No
With loudspeaker
No
No
Power consumption
1,20 W
1,20 W
Supply voltage
12,00 - 12,01 V
12,00 - 12,01 V
Voltage type
DC
DC
Colour
White
White
Diameter
60,00 mm
60,00 mm
Height
150,00 mm
150,00 mm
Width
6.000,00 mm
6.000,00 mm
Depth
30,00 mm
30,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
Minimum order quantity: 1 NR
Barcode
8013406284105
1 NR
13x12.8x8 [cm]
280 [g]
