4-channel AHD kit - 2Bullet FF 5Mpx cam - 46554.036E

Download as PDF PDF Add to portfolio

46554.036E
Safety / ELVOX CCTV / AHD / Kits

4-channel AHD kit - 2Bullet FF 5Mpx cam

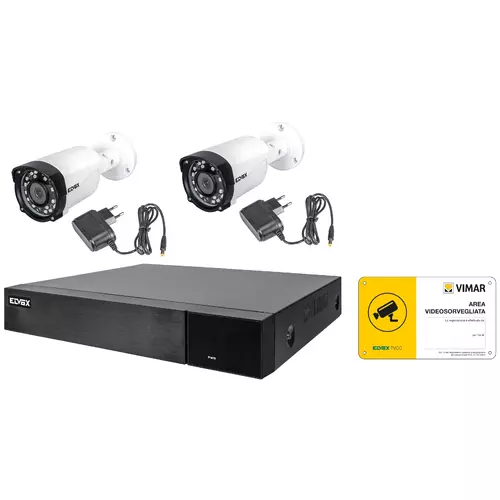

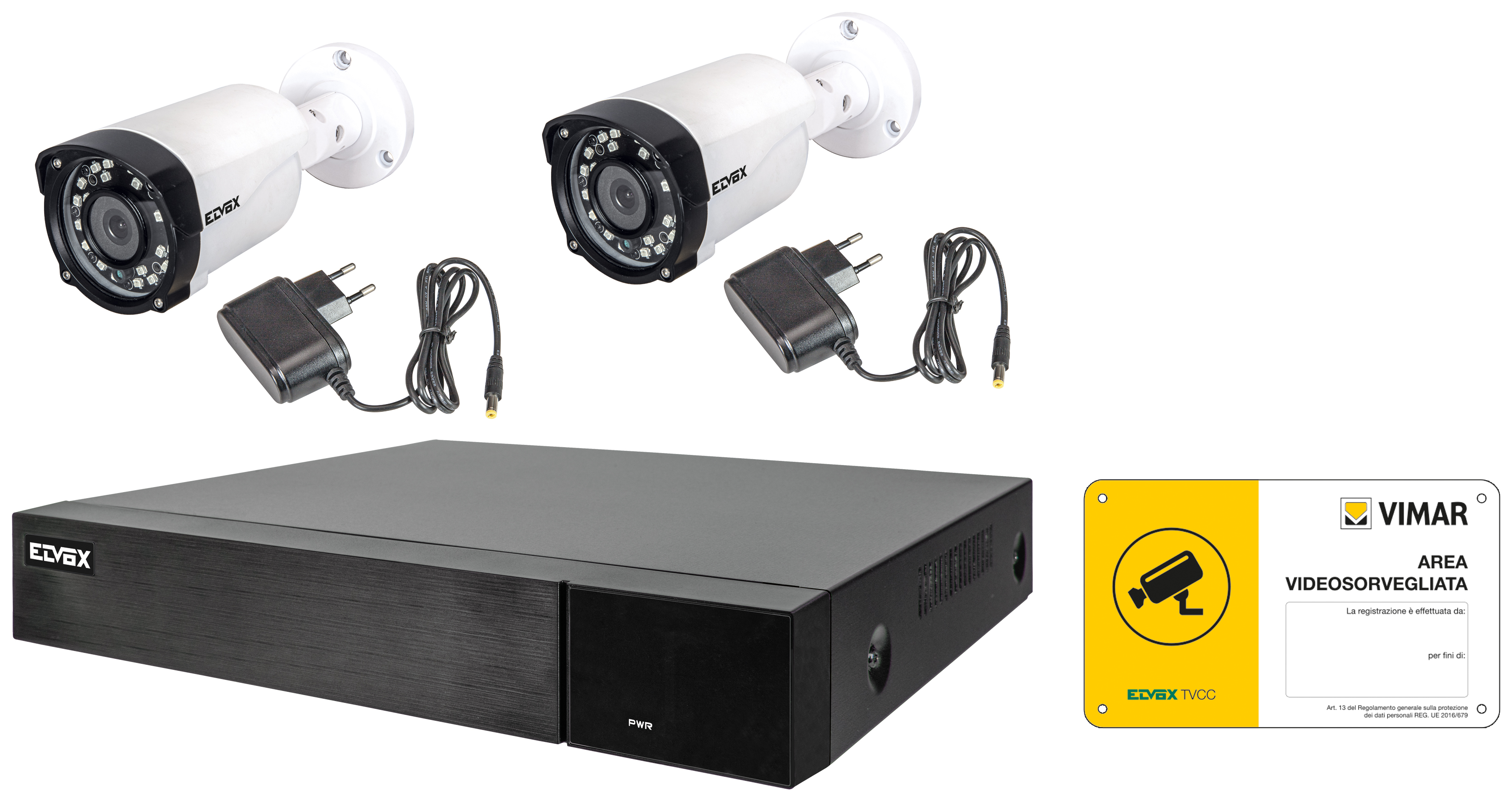

AHD CCTV kit consisting of: Hybrid DVR with 4+2 AHD/IP channels, compatible with 2 additional IP cameras, professional 1 TB HDD, H.265 compression, CsC, supports AHD and IP up to 5Mpx (code 46XVR.ES04), 2 bullet 5Mpx AHD cameras with 3.6 mm fixed lens, D&N with mechanical IR filter (code 4651.036ES), 2 x 12 VDC - 1A plug-in power supply units (code 46902.010), 1 “Area under video surveillance” sign (code 46927.001)

Product Status
3 - Active

Kit components

You may also be interested in

Class group
Alarm installations, emergency call and signalling
Class
Video surveillance system
Model camera
Standard (Fixed)
Construction type
Bullet shape
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
No
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Number of cameras
2
Thermal camera
No
Number of included cameras
2
With video motion detector
Yes
With infrared lighting
Yes
Number of pixels (Megapixel)
5
Picture system
PAL
Property picture system
Colour
Degree of protection (IP) camera
IP66
Integrated power-supply for cameras
Yes
Transmission technique
Other
Wired camera connection
Yes
Wireless camera connection
No
Type of interface
Other
Type of connector
Other
Type of storage medium
Hard disc
Cloud-based storage
No
Memory capacity included storage medium
1000
Number of RJ45 connections
5
Internal memory capacity camera
0
Max. number of video inputs
4
With monitor
No
Number of HDMI connections
1
Number of Mini HDMI connections
0
Number of DVI sockets
0
Number of inputs DisplayPort (DP)
0
Number of inputs Mini DisplayPort (mDP)
0
Number of D-Sub connections 15-pole
0
Number of BNC connections
4
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352722385
1 NR
58x54.5x15 [cm]
3,020 [g]
