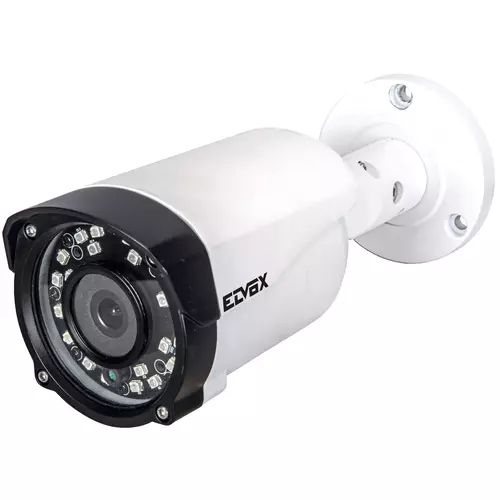

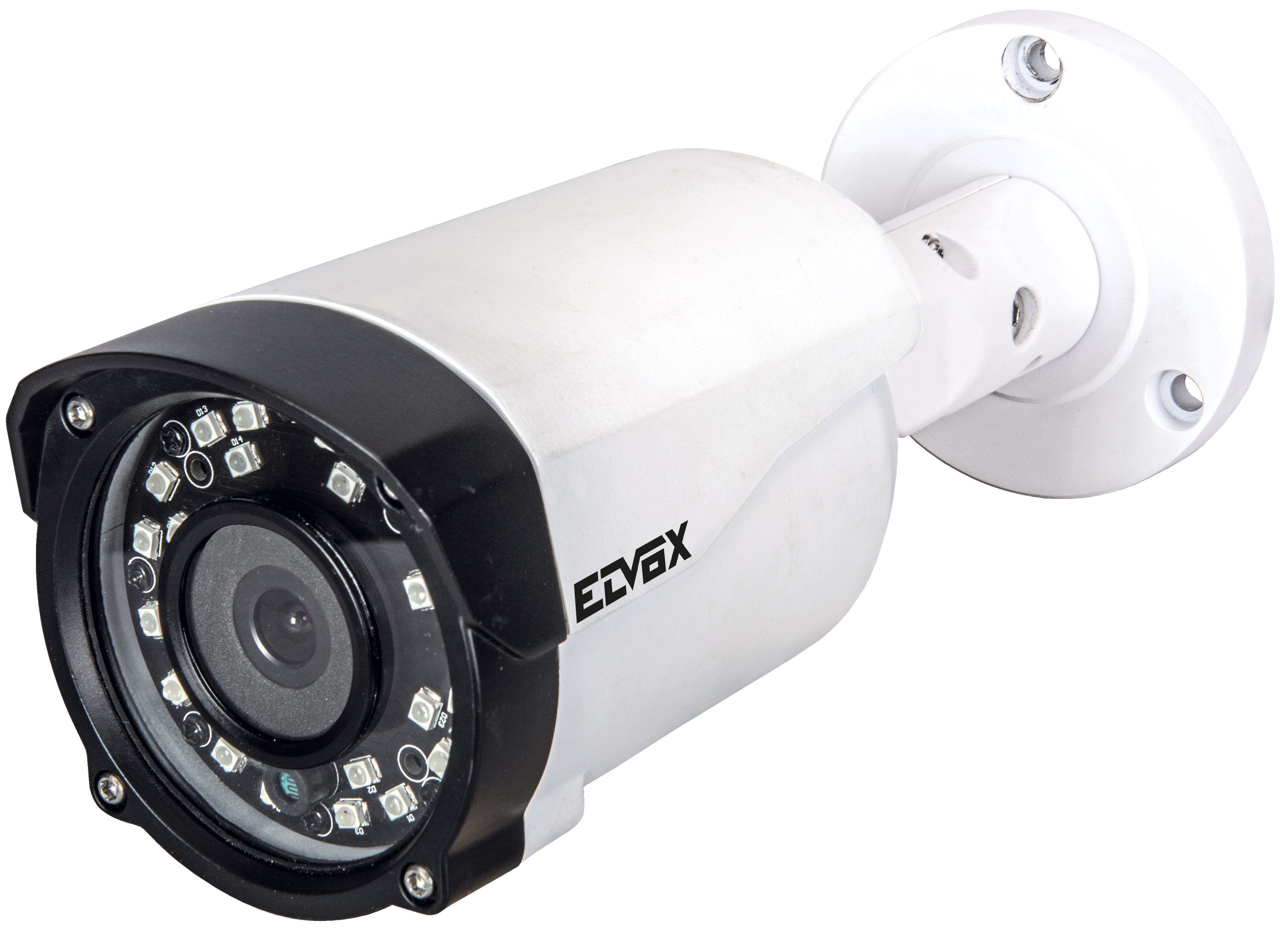

Bullet IR AHD cam1080p 3,6mm lens CVBS

46CAM.136B.8
Safety / ELVOX CCTV / AHD / Cameras

Bullet IR AHD cam1080p 3,6mm lens CVBS
Bullet Day & Night camera, CVBS/AHD selection, Full-HD 1080p resolution, 1/2,7 in sensor, IR mechanical filter, 3,6 mm fixed focus lens, 0 lux sensitivity (IR ON), IP66 protection rating, IR illuminator with range up to 20 m, Smart-IR, OSD. Power supply 12 Vdc 230 mA, supplied with bracket with protected cable passage. Dimensions 152x68x82 mm. Weight 295 g

Ready to use, no programming required
Supplied in CVBS standard to encourage connection without the need for configuration (in the installation with video entryphone)

Product Status
3 - Active

Sheets, Manuals, Documentation

Multilanguage instructions sheet (889 kb)

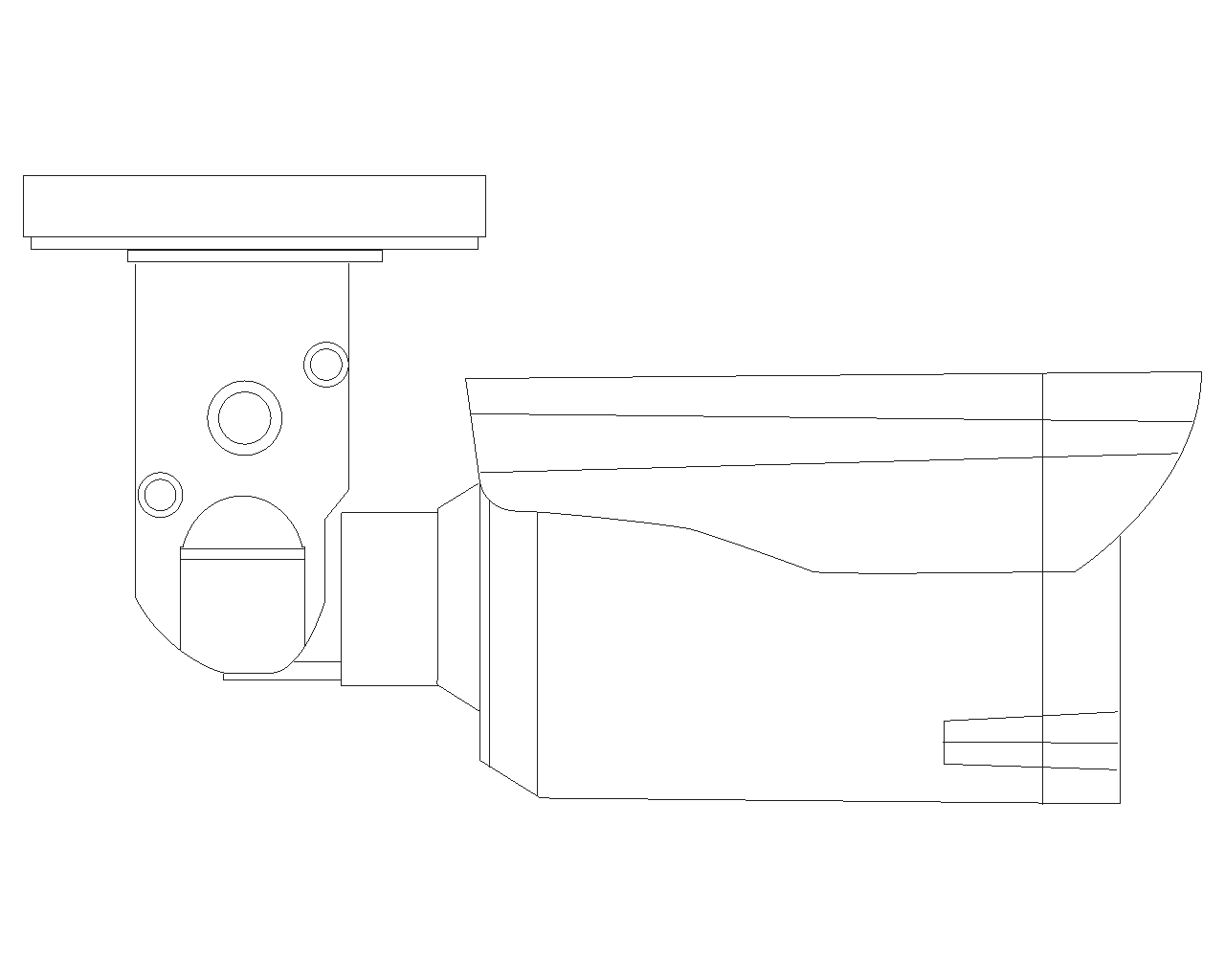

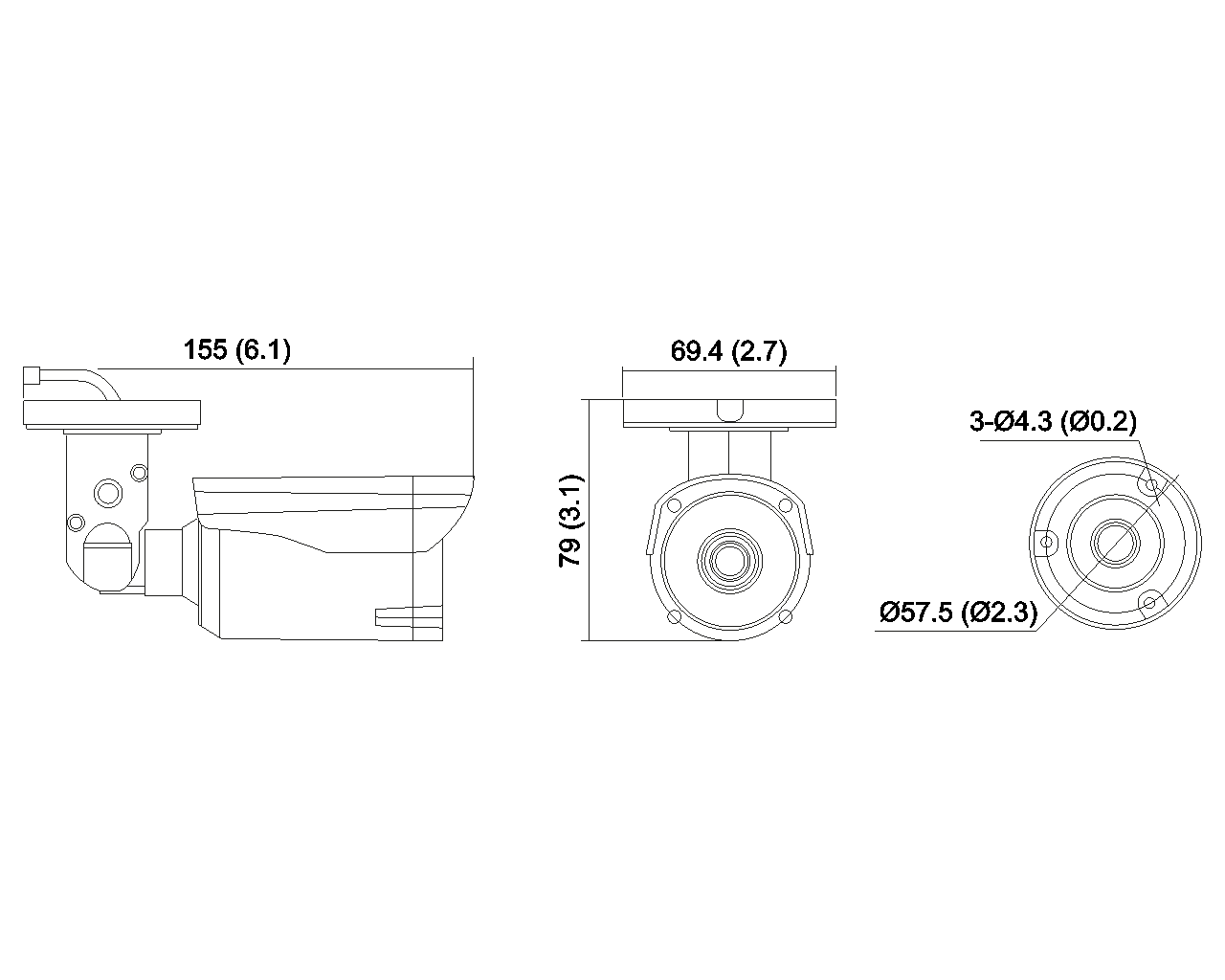

Drawings

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Camera for surveillance system

Model
Standard (Fixed)

Construction type
Bullet shape

Thermal camera
No

Number of pixels (Megapixel)
2

With lens
Yes

Modular (lens and camera separated)
No

Focal size
3,60 - 3,61 mm

Shutter control
DC

Lens connection
Other

Motor zoom
No

Suitable for wall mounting
Yes

Suitable for ceiling mounting
Yes

Suitable for corner mounting
No

Suitable for surface mounting
Yes

Flush-mounted installation/built-in installation
No

Suitable for outdoor use
Yes

Communication medium wired
Yes

Communication medium wireless
No

Type of interface
Other

Protocol
Other

Power over Ethernet (PoE)
None

Picture system
PAL

Frame rate
25

Property picture system
Colour

With infrared lighting
Yes

Max. infrared reach
15 m

With white light
No

Max. white light reach
0 m

Supports H.264 codec
No

Supports H.265 codec
No

Supports Motion JPEG codec
Yes

Supports MPEG-4 codec
No

With video motion detector
No

With integrated AI analysis
No

With slot for memory card
No

With memory card
No

Memory capacity
0

Number of digital inputs
0

Number of digital outputs
0

Number of audio inputs
0

Number of audio outputs
0

With integrated audio analysis
No

HDMI-connection
No

Mini HDMI-connection
No

VGA-connection (D-Sub 15-pole)
No

DVI-connection
No

BNC-connection
Yes

DisplayPort-connection
No

Mini DisplayPort
No

S-Video-connection
No

USB-C-connection
No

Vandal proof
No

Impact strength
Other

Degree of protection (IP)
IP66

With microphone
No

With loudspeaker
No

Power consumption
3,12 W

Supply voltage
12,00 - 12,01 V

Voltage type
DC

Colour
White

Diameter
6.800,00 mm

Height
82,00 mm

Width
6.800,00 mm

Depth
152,00 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8013406307163

1 NR

20.5x11.5x11 [cm]

535.2 [g]

Question:	What kind of external camera can I connect to this kit?
Answer:	The Vimar 46CAM.136B.8 camera can be connected to the CCTV and GND terminals of the outdoor station; Maximum length: 100 m with SYV75-3/RG59 cable.
Question:	When the camera is combined with the video entryphone K40911 no image can be seen.
Answer:	It is necessary to switch the camera to CVBS mode according to the procedures provided in the instructions.
