Kit IP 4CH PoE 4 Mpx FF ColorCode 46KIT.028DC

Name: Kit IP 4CH PoE 4 Mpx FF Color
Brand: Vimar
Availability: InStock

Download as PDFPDF

46KIT.028DC: Safety / ELVOX CCTV / IP / Kits

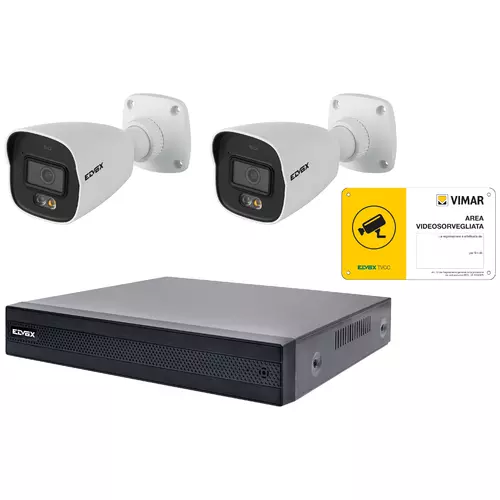

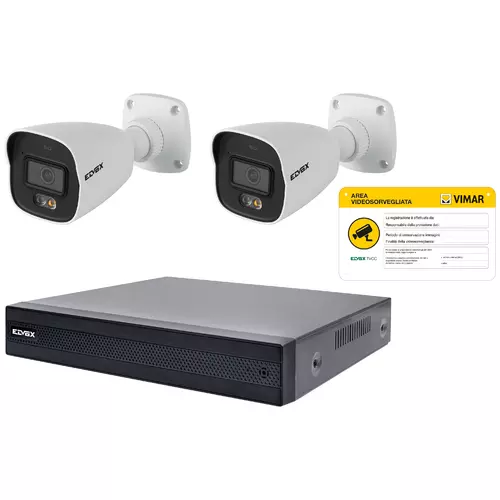

Kit IP 4CH PoE 4 Mpx FF Color: CCTV kit consisting of: 1 (one) 4-channel NVR compliant with the NDAA standard, H.265+ compression, 6 Mpx 4 Real Time channel recording, built-in af/at PoE switch with 4 ports with Plug&Play configuration, remote viewing and control with QRCODE, professional 1 TB HDD (art. 46NVR.04PSN), 2 (two) bullet cameras, colour viewing in the dark with white LEDs 20-30 m and b&w with IR 20-30 m, 4 Mpx resolution (2560x1440), with 2.8 mm fixed focus lens (art. 4621.028DC), 1 (one) “Area Under Video Surveillance” sign (art. 46927.003)
Product Status: 3 - Active

You may also be interested in

46936.001 - USB alarm extension

4621.028DC - Bullet IP 4Mpx FF cam - 2,8mm Color

4621.2812DC - IP Bullet cam-4Mpx VF 2,8-12mm mot Color

4622.028DC - IP Dome cam - 4Mpx FF 2,8mm Color

4622.2812DC - IP Dome Plus motorcam-4Mpx 2,8-12mm Col.

Class group
Alarm installations, emergency call and signalling

Class
Video surveillance system

Model camera
Standard (Fixed)

Construction type
Bullet shape

Suitable for wall mounting
Yes

Suitable for ceiling mounting
Yes

Suitable for corner mounting
No

Suitable for surface mounting
No

Flush-mounted installation/built-in installation
No

Suitable for outdoor use
Yes

Number of cameras
2

Thermal camera
No

Number of included cameras
2

With video motion detector
Yes

With infrared lighting
Yes

Number of pixels (Megapixel)
4

Picture system
PAL

Property picture system
Colour

Degree of protection (IP) camera
IP67

Integrated power-supply for cameras
Yes

Transmission technique
TCP/IP

Wired camera connection
Yes

Wireless camera connection
No

Type of interface
Other

Type of connector
RJ45

Type of storage medium
Hard disc

Cloud-based storage
No

Memory capacity included storage medium
1000

Number of RJ45 connections
5

Internal memory capacity camera
256

Max. number of video inputs
4

With monitor
No

Number of HDMI connections
1

Number of Mini HDMI connections
0

Number of DVI sockets
0

Number of inputs DisplayPort (DP)
0

Number of inputs Mini DisplayPort (mDP)
0

Number of D-Sub connections 15-pole
0

Number of BNC connections
0

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

45. NDAA compliant

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8007352767638

1 NR

55x47.5x15 [cm]

2,907 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
