46NVR.16F
Safety / ELVOX CCTV / IP / NVR

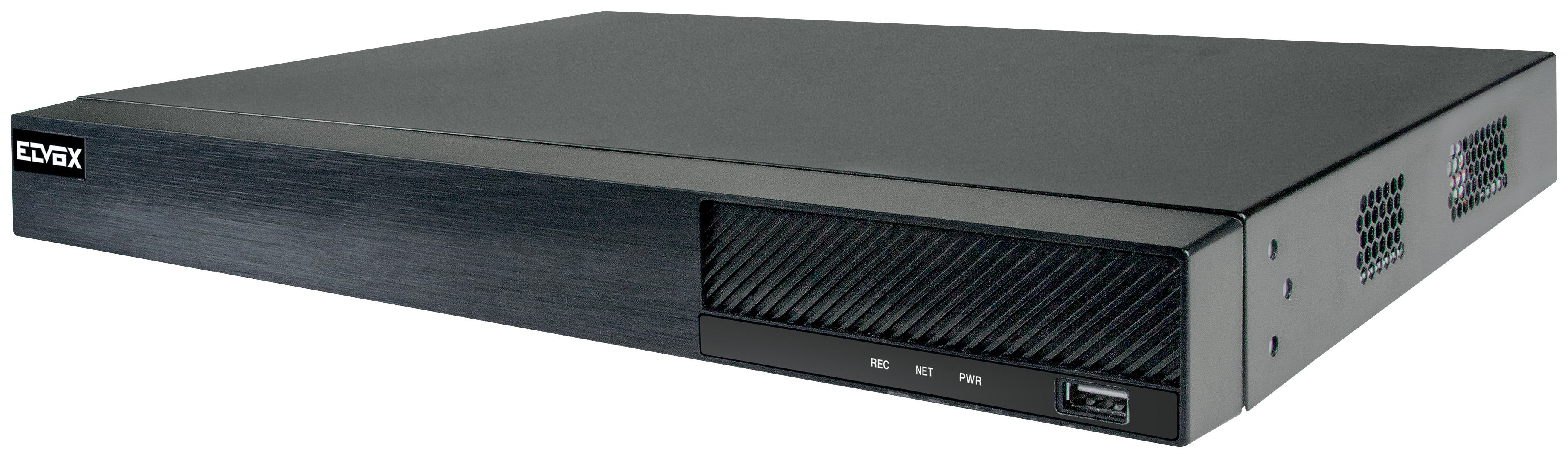

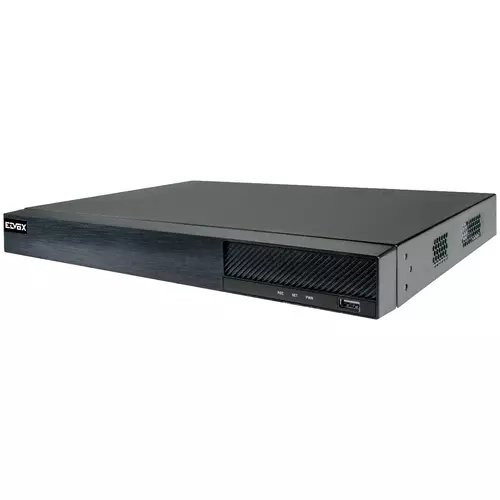

16CH 8Mpx H.265 HDD 2TB NVR
Product Status
2 - Will be discontinued
Drawings
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Matrix memory for video surveillance system
Matrix memory for video surveillance system
Recording type
Digital
Digital
Device construction
482.6 mm (19 inch) mounting rack
482.6 mm (19 inch) mounting rack
Max. number of video inputs
16
16
Max. number of control inputs
0
0
With video motion detector
Yes
Yes
With DVD
No
No
Redundant power supply
No
No
Power consumption
15 W
15 W
Max. data transmission rate
1000
1000
Processor type
Other
Other
Number of ports LAN
1
1
Number of ports 1000 Mbps Mini GBIC
0
0
Number of combination-ports RJ45/Mini GBIC
1
1
Number of ports PoE
0
0
Max. PoE power
0 W
0 W
Power over Ethernet (PoE)
None
None
Operating system
Linux
Linux
Number of pre-licensed cameras
16
16
Number of hard disc bays
2
2
Number of preinstalled hard discs
2
2
Memory capacity per hard disc
2
2
RAID 0 capable
No
No
RAID 1 capable
No
No
RAID 5 capable
No
No
RAID 6 capable
No
No
RAID 10 capable
No
No
Hot-swappable hard disk capability
No
No
Width
269 mm
269 mm
Height
52 mm
52 mm
Depth
380 mm
380 mm
Minimum order quantity: 1 NR
Barcode

8007352668041
1 NR
51.5x35x11.5 [cm]
3,098 [g]
