ACTO 600D sliding kit 24V 600kg - EK02.EXP.120

EK02.EXP.120
Safety / ELVOX Automations / Kits / Sliding

ACTO 600D sliding kit 24V 600kg

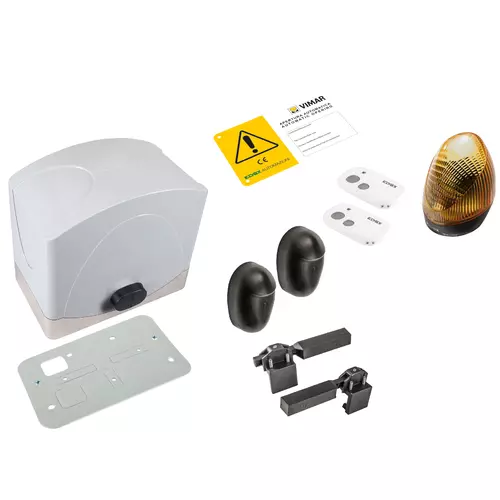

Kit ACTO 600D for sliding gates up to 600 kg. Contents: 1 ESM2 ACTO 600Dnon-reversible 24 V electromechanical operator, 1 ELA5 12/24 V LED flashing light with built-in aerial, 2 ETRN2 2-channel 433 MHz rolling code remote controls, 1 EFA3 pair of photocells, 1 ZX20 warning sign, 1 ZX16 fixing plate. Supply voltage 120 V

Product Status
3 - Active

Kit components

ETRN2 - 2-channel remote control 433MHz rolling

ZX20 - Warning sign

EFA1 - Pair of 12/24V 110mA 180° photocells 15m

ELA5 - Flashing light LED 12/24Vdc

ESM2 - ACTO 600D sliding operator 24V 600kg

ZX16 - ACTO 400D/ACTO 600D fixing plate

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Installer manual (9661 kb)
• Installer manual (15615 kb)
• Installer manual (5364 kb)
• Manuale utente (929 kb)
• Manuel de l’utilisateur (934 kb)
• Manual de usuario (933 kb)
• User Manual (970 kb)
• Bedienungsanleitung (935 kb)

Class group
Drive systems for roller shutters, doors, windows

Class
Sliding gate operator

Max. door/gate weight
600 kg

Supply voltage AC
120 V

Automatic closing
Yes

Partial opening
Yes

Soft run
Yes

Frequency radio receiver
433 MHz

With manual transmitter
Yes

With motor control unit
Yes

With rack
No

With key-switch
No

With radio receiver
Yes

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406231093

1 NR

39x30x44 [cm]

13,080 [g]
