Flush consumer unit 12M black - V53012.N

Pdf
Vimar - V53012.N - Flush consumer unit 12M black
Vimar - V53012.N - Flush consumer unit 12M black

V53012.N
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

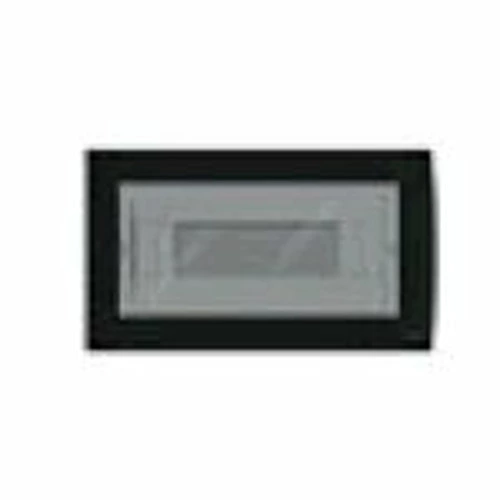

Flush consumer unit 12M black
Flush consumer unit with horizontally hinged transparent door, 12 modules, delivered with DIN (60715 TH35) rail, black

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush-mounted
Number of rows
1
Width in number of modular spacings
12
Type of covering
Door
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Black
RAL-number
0
Degree of protection (IP)
IP40
Height
176,00 mm
Width
302,00 mm
Depth
18,00 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352076358
1 NR
33.4x18.9x7.9 [cm]
465.93 [g]
Barcode Qty 10 NR
8007352470842
10 NR
58x38.5x30 [cm]
5,409.3 [g]
