IP 7˝ touch screen PoE white - 01422.B

Pdf
01422.B

Surface mounting equipments / Systems / Supervision

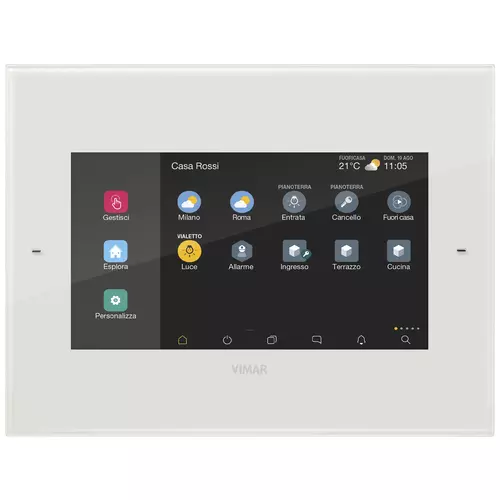

IP 7˝ touch screen PoE white
Touch screen with 7” IP capacitive colour display, used as a home automation system supervisor, IP/Due Fili Plus internal video entryphone, IP video camera and CCTV system manager, power supply PoE or 12-30 Vdc, surface mounting with bracket on round, 3-module (horizontal or vertical), 8-module 4+4) or Britisch standrad square mounting box, white

Product Status
4 - Active

Class group
Installation bus systems
Class
Signalling and operation panel for bus system
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
With bus connection
No
Material
Glass
Material quality
Other
Colour
White
RAL-number (similar)
9016
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352586055
1 NR
25.5x22.4x5.3 [cm]
1,014.2 [g]
Barcode Qty 7 NR
8007352612631
7 NR
39x29.5x22 [cm]
7,506 [g]
