Line coupler - 01845.1

Pdf
Vimar - 01845.1 - Line coupler
Vimar - 01845.1 - Line coupler

01845.1
Smart systems&products / By-me Plus / Shared components / DIN devices

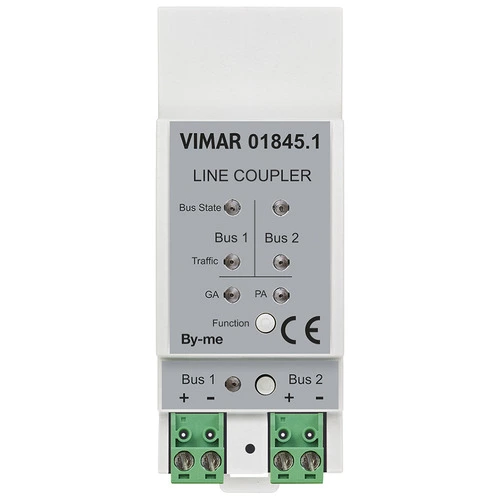

Line coupler
Line coupler, for DIN (60715 TH35) rail installation, occupies 3 17,5 mm modules, RAL 7035 grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 01845.1
PNG DXF
rear view art. 01845.1
PNG DXF
3D view art. 01845.1
PNG DXF
Class group
Installation bus systems
Class
Area/line coupler for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
Other
Width in number of modular spacings
2

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352560529
1 NR
11.7x10.8x7.1 [cm]
138 [g]
