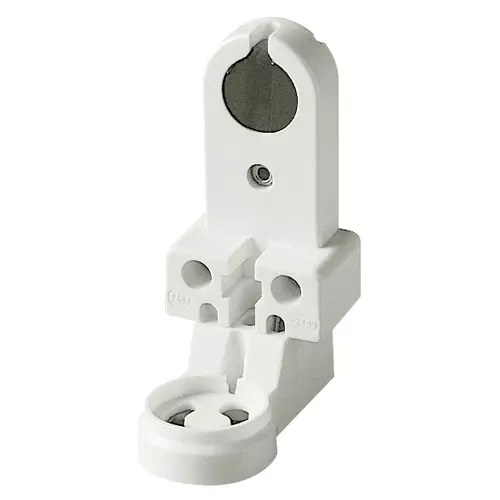

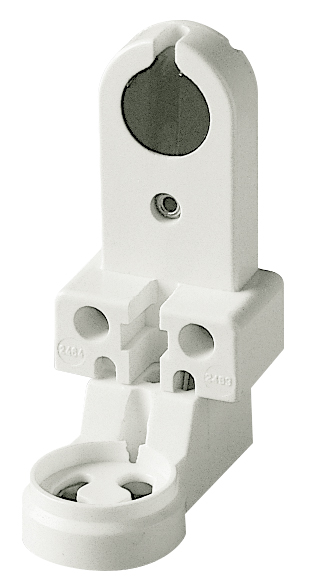

Screwtype lamphld-G13 fluor.lamp+start.Code 02464

Download as PDFPDF

02464: Portable installation / Lighting components / Lampholders / Fluorescent lampholders
Screwtype lamphld-G13 fluor.lamp+start.: 2 A 250 V inflexible lampholder, rotor type, with starter holder, brass contacts, for G13 fluorescent tubular lamps, screw fixing and terminals, rated operating temperature 80 °C, white
Product Status: 3 - Active

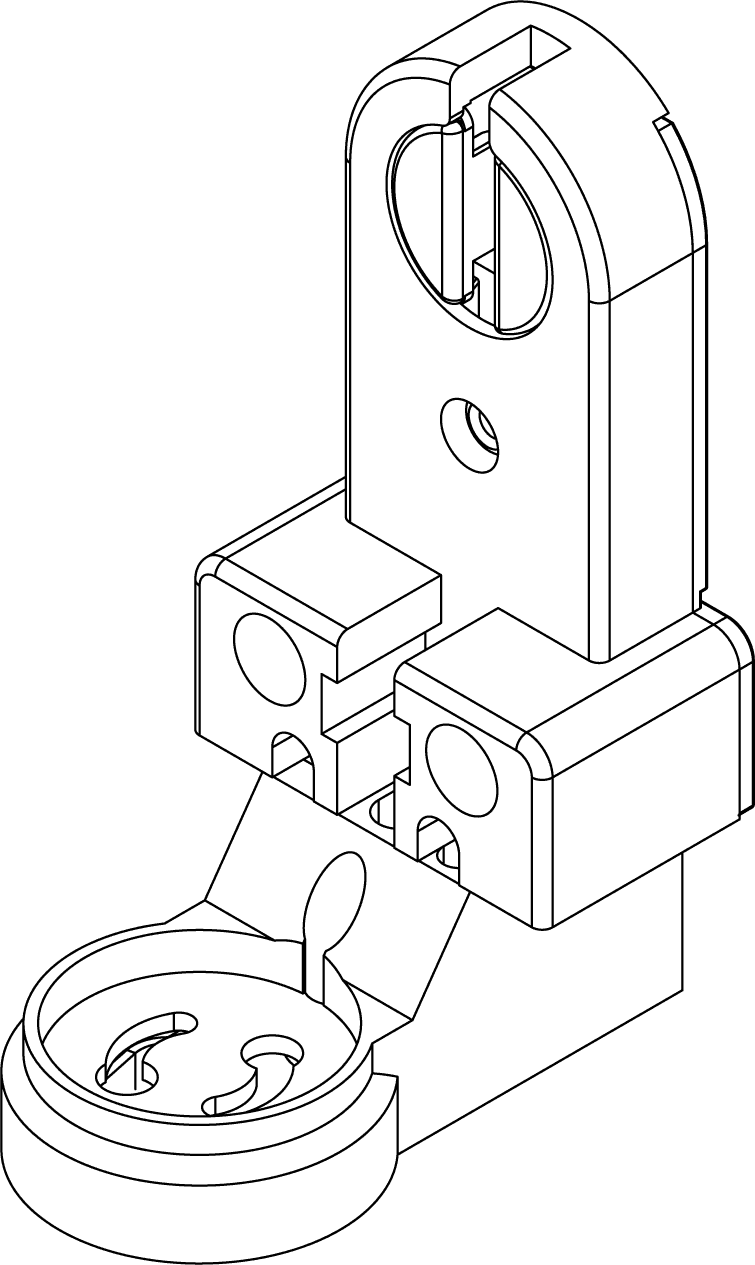

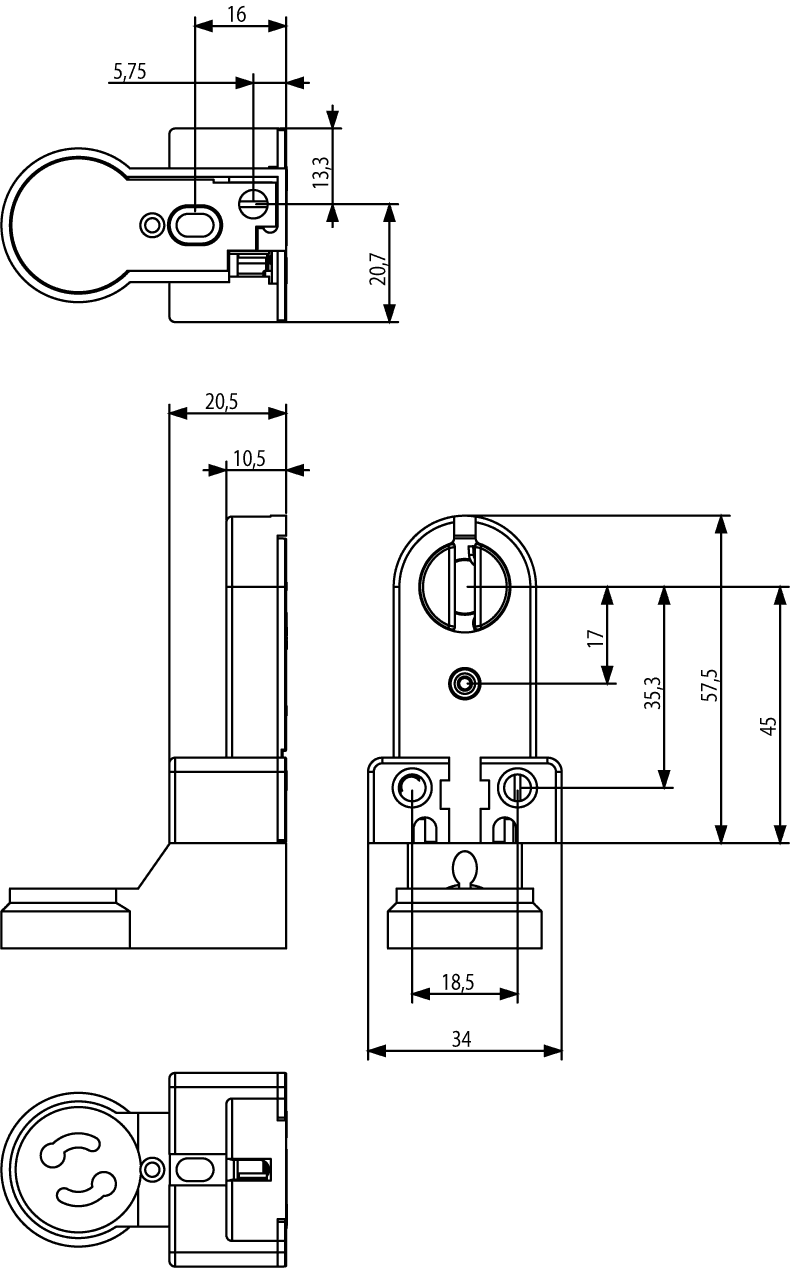

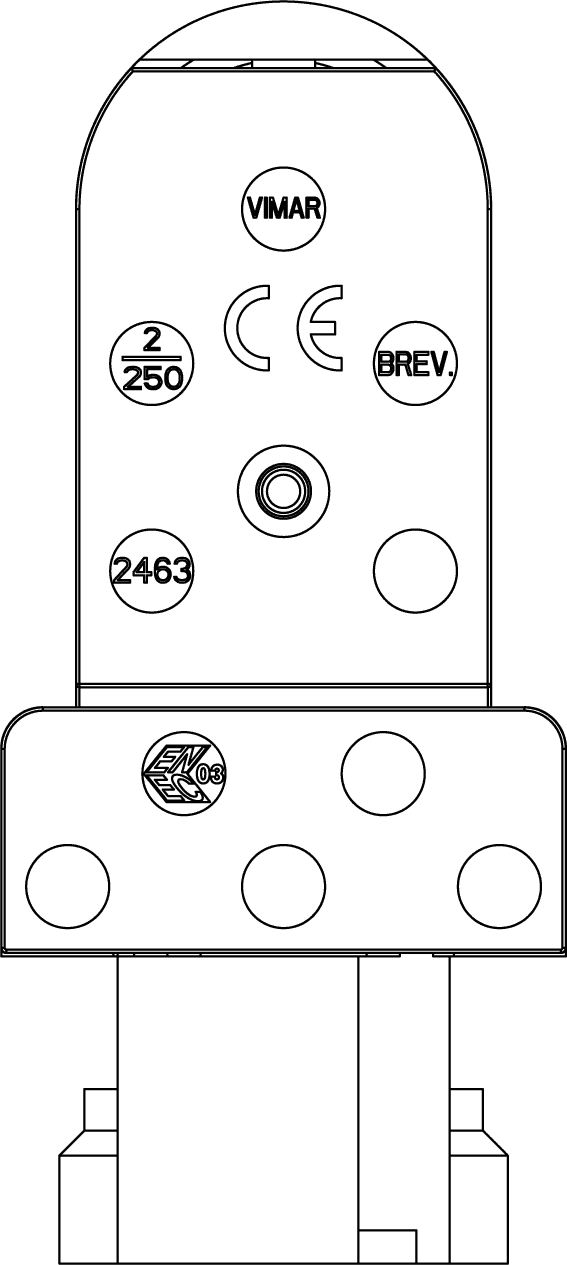

Drawings

Class group
Accessories for lighting

Class
Lamp holder

Model
Plug-in lamp holder

Material
Other

Colour
White

Lamp holder
G13

With starter insertion
Yes

Type of fastening
Screw mounting

Nipple thread
3/8 inch

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

Minimum order quantity: 100 NR

Barcode

8007352031418

3.5x7.6x5 [cm]

38.4 [g]

8007352349070

10 NR

20x10x3 [cm]

389 [g]

8007352031425

100 NR

28.4x24.4x16.4 [cm]

4,094.67 [g]
