RJ45 Cat5e Netsafe UTP connector - 03009.11

Pdf
Vimar - 03009.11 - RJ45 Cat5e Netsafe UTP connector
Vimar - 03009.11 - RJ45 Cat5e Netsafe UTP connector

03009.11
System infrastructure / Netsafe structured wiring / Shared components / Data connectors

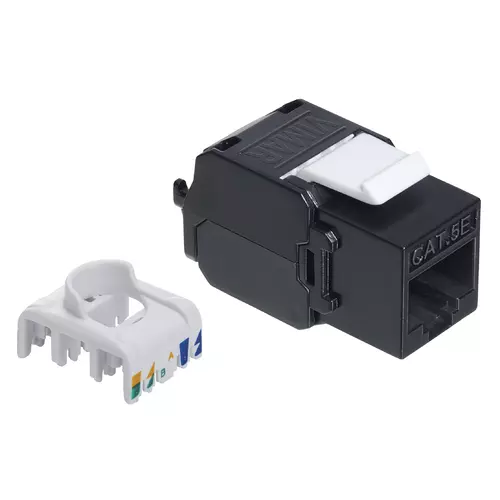

RJ45 Cat5e Netsafe UTP connector
RJ45 Cat.5e connector, unshielded, for 03024.E and 03303.E patch panels, T568A/B universal wiring, 8-contact, insulation-piercing terminals without tool use

Product Status
3 - Active

Drawings

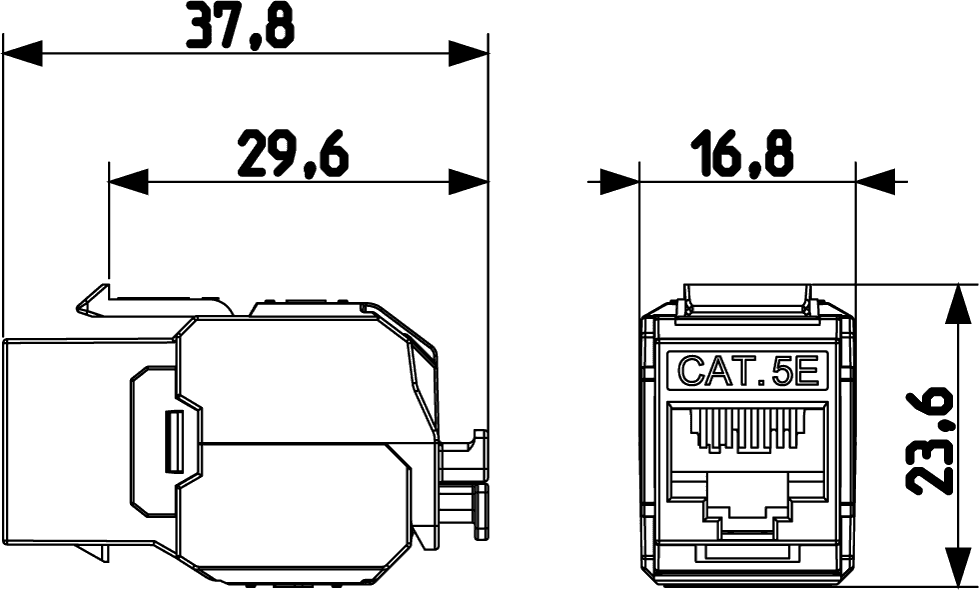

view encumbered art. 03009.11
PNG DXF

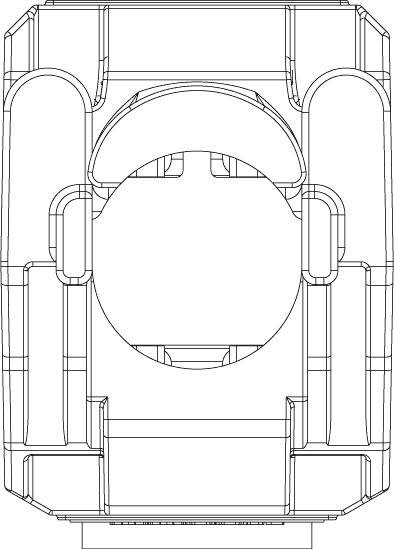

rear view art. 03009.11
PNG DXF

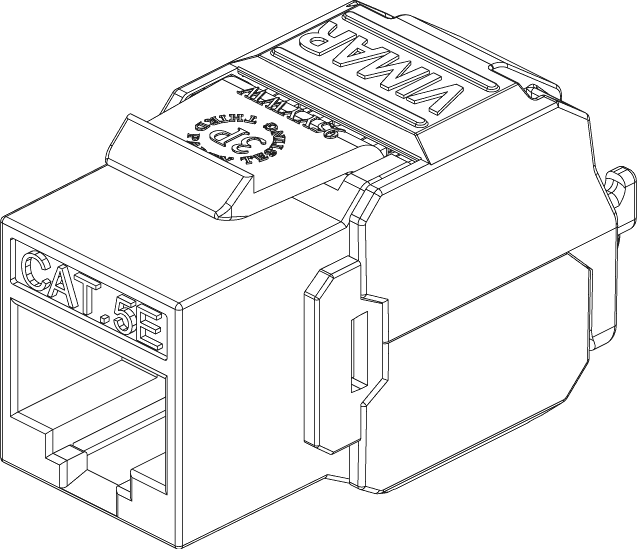

3D view art. 03009.11
PNG DXF
Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
5E
Connection type
Crimp
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conductor
No
Suitable for solid conductors
No
Colour
Other
AWG-range
23 - 26

00. CE Marking - EU

24. FORCE Certificate

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 8 NR

Barcode

Barcode Qty 1 NR
8007352462724
1 NR
1.7x2.4x3.8 [cm]
9.7 [g]
Barcode Qty 8 NR
8007352462731
8 NR
13.9x11.9x7.4 [cm]
127.1 [g]
