Vimar - 03009.15 - RJ45 Cat6A Netsafe UTP connector

03009.15

Net Safe / Copper / RJ/EDP socket outlets

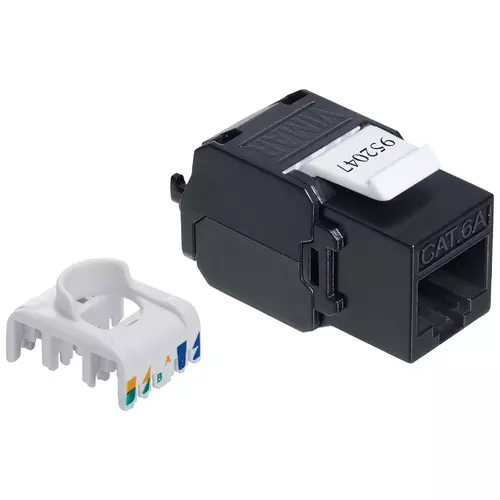

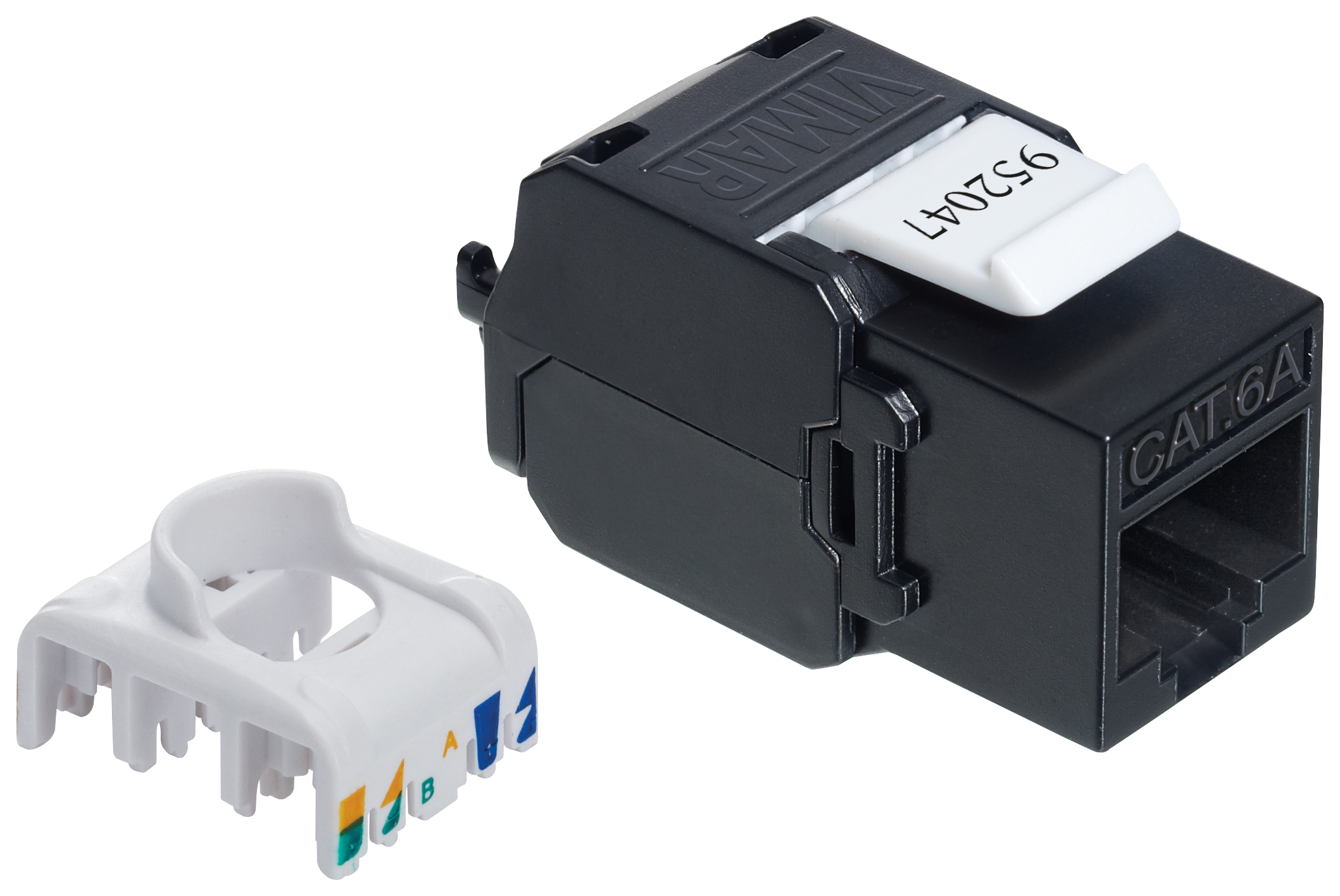

RJ45 Cat6A Netsafe UTP connector
RJ45 Cat.6A connector, unshielded, for 03024.E and 03303.E patch panels, T568A/B universal wiring, 8-contact, insulation-piercing terminals without tool use

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Ask a question

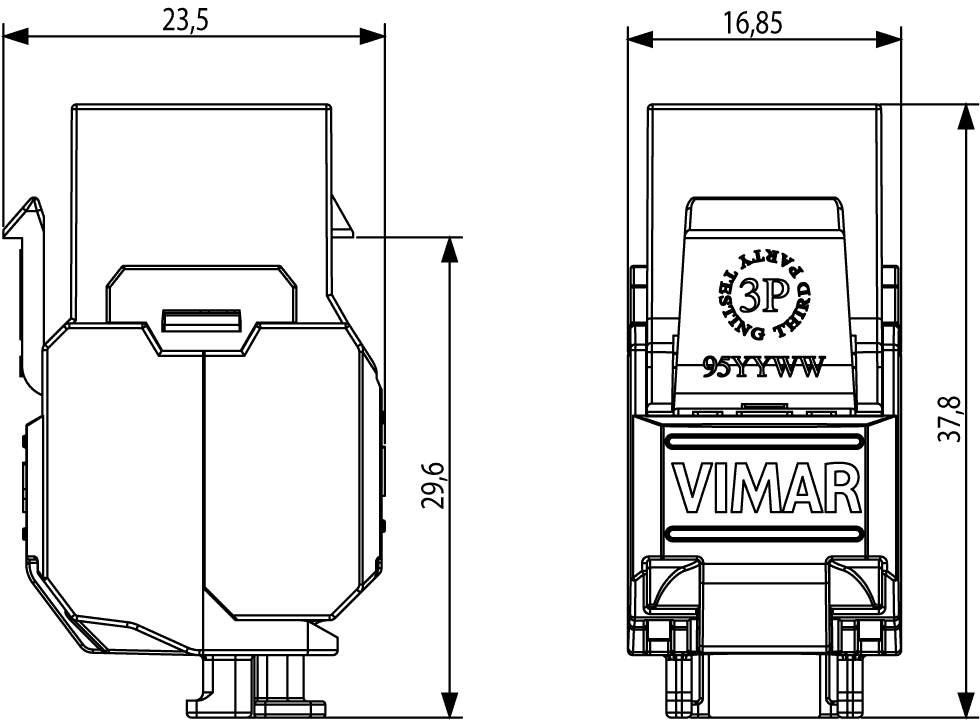

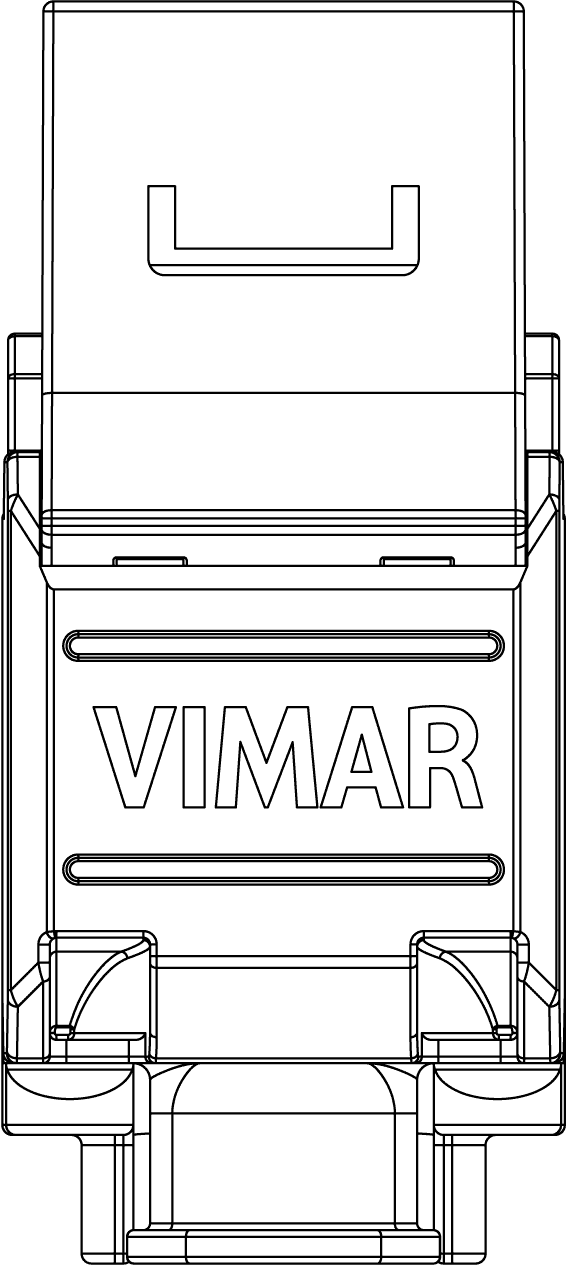

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Data and telecommunication

Class
Modular connector

Model
Bus (jack)

Type of connector
RJ45 8(8)

Screened
No

Category
6A (IEC)

Connection type
Crimp

Special tool necessary
No

Suitable for round cable
Yes

Suitable for flat cable
No

Suitable for litz wire conduct
No

Suitable for solid core
No

Colour
Other

AWG-range
23 - 26

00. CE Marking - EU

24. FORCE Certificate

99. WEEE Directive

Minimum order quantity: 8 NR

---

Barcode

8007352558410

1 NR

1.7x2.4x3.8 [cm]

9.8 [g]

8007352559417

8 NR

13.9x11.9x7.4 [cm]

146.3 [g]
