42u patch panel floor-cabinet 800x800 - 03243.3

Pdf
Vimar - 03243.3 - 42u patch panel floor-cabinet 800x800
Vimar - 03243.3 - 42u patch panel floor-cabinet 800x800

03243.3
System infrastructure / Netsafe structured wiring / Surface mounting components / Carpentry

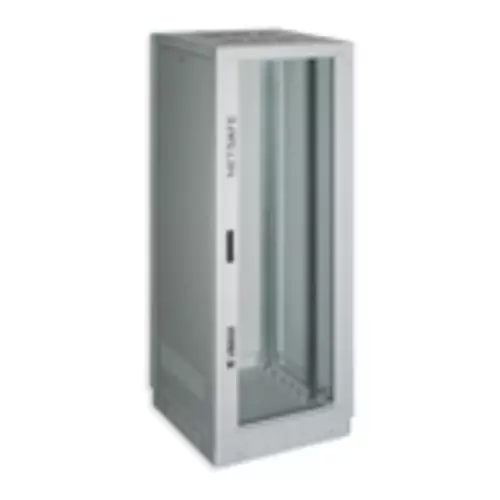

42u patch panel floor-cabinet 800x800
Cabinet for installation of 19 in panels up to 42 rack units, RAL7035. Dimensions 800x800x2114 mm

Product Status
2 - Will be discontinued

Drawings

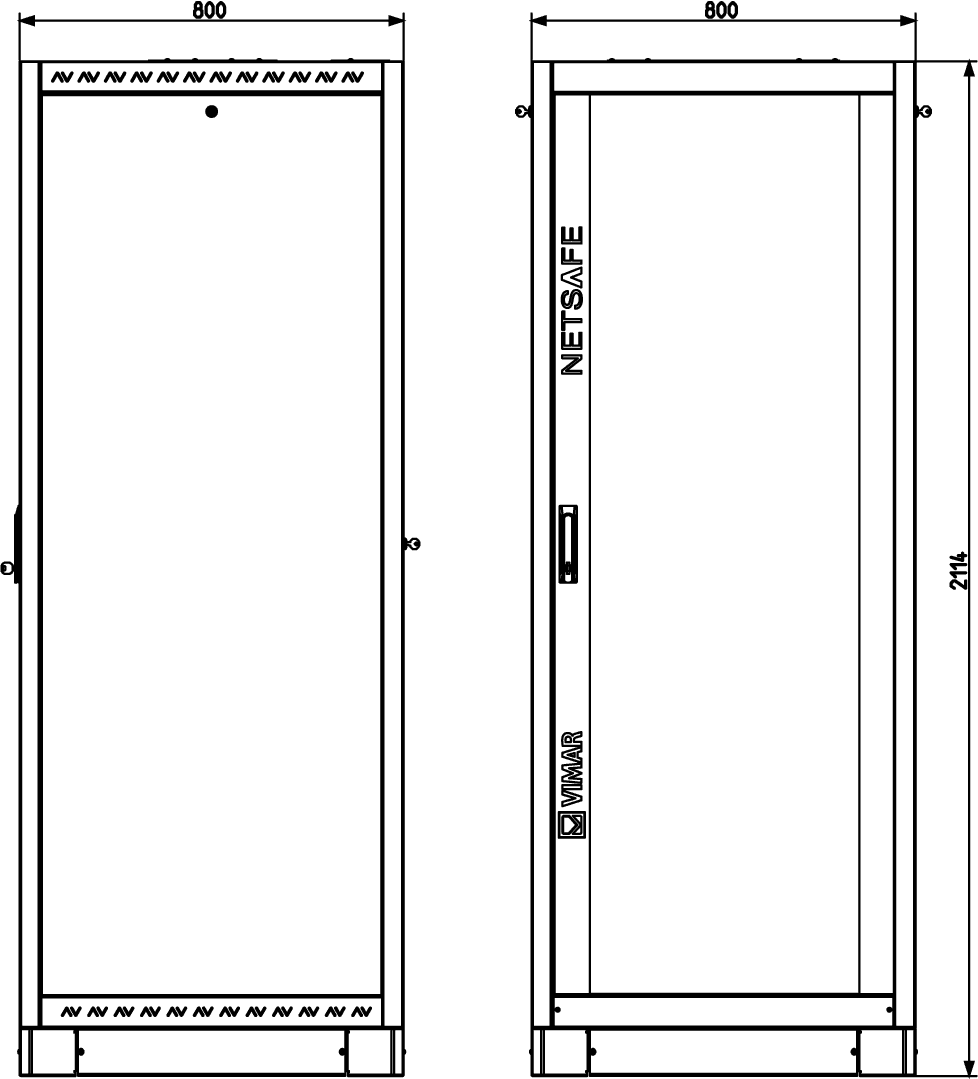

view encumbered art. 03243.3
PNG DXF
rear view art. 03243.3
PNG DXF

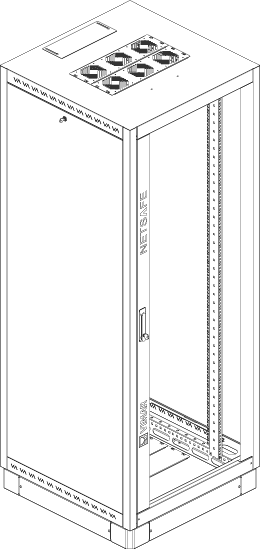

3D view art. 03243.3
PNG DXF
Class group
Cabinet enclosures
Class
Network/server enclosure
Type of profile rail
L-shaped
Number of doors
2
Type of ventilation
None
Width
800 mm
Height
2.114 mm
Depth
800,00 mm
Modular spacing
482.6 mm (19 inch)
Number of height units
42
With roof plate
Yes
With earthing
Yes
With front door
Yes
With rear door
Yes
With sidewall
Yes
With base
Yes
Material
Other
Surface finishing
Lacquered
Colour
Grey
Model
With swing frame
RAL-number
0
Demountable
Yes
Degree of protection (IP)
IP20
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352463066
1 NR
80x80x225.9 [cm]
130,000 [g]
