03906
Surface mounting equipments / Systems / Radiofrequency

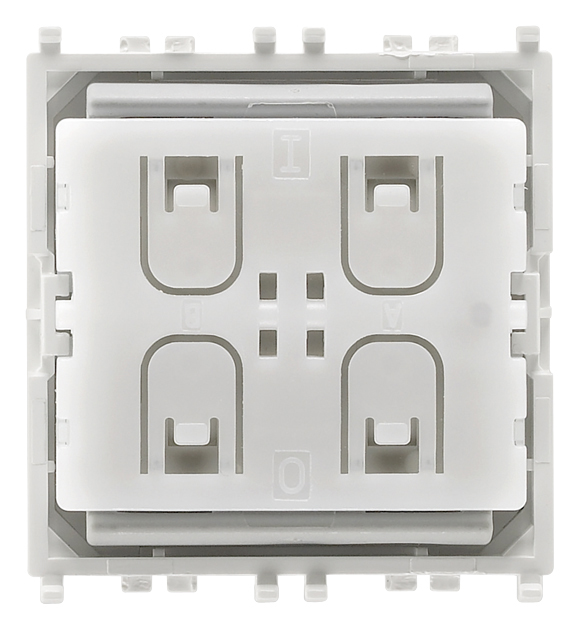

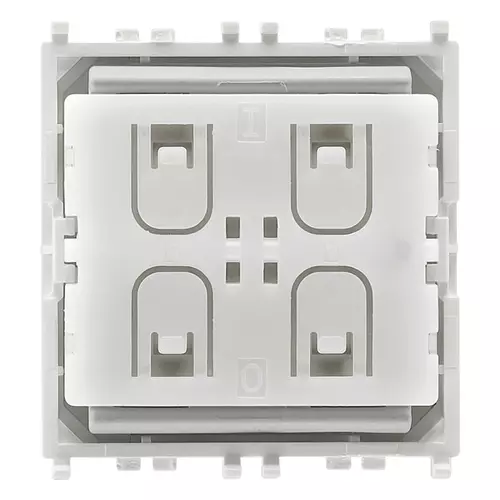

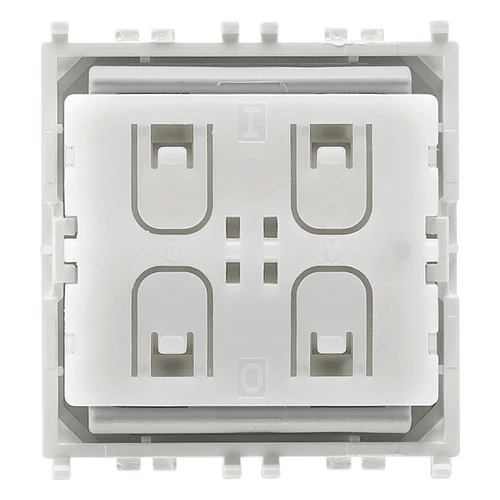

Zigbee Friends of Hue RF switch
4-button flat switch with 2.4 GHz Zigbee Green Power and Friends of Hue standard radiofrequency transmitter, energy harvesting supply powered by built-in electrodynamic generator, to complete with Eikon 20506, Arké 19506 or Plana 14506 buttons - 2 modules
- Batteries are not required: the power supply is self-generated on pressing the push button, which activates the internal electro-dynamic generator. This small fraction of energy is capable of activating the radio frequency wave
- The wireless 1-way switch designed to be positioned anywhere, including on glass or wood, requires no masonry work
- Since they do not require wired connections, the signal is transmitted via radio
- Use of low energy radio technologies applied to the controls, electromagnetic radiation and pollution are practically non-existent
- Batteries are not required, thus respecting the environment
Product Status
3 - Active
Sheets, Manuals, Documentation

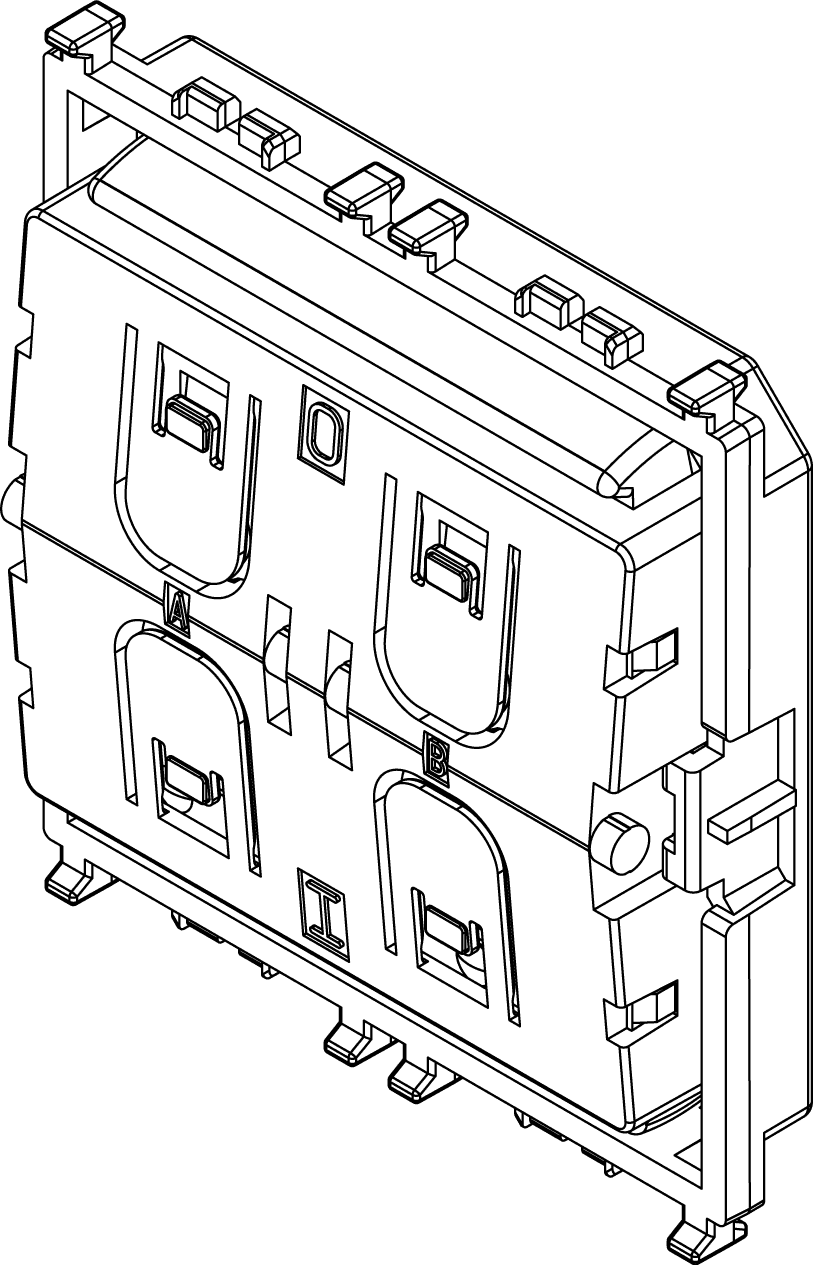

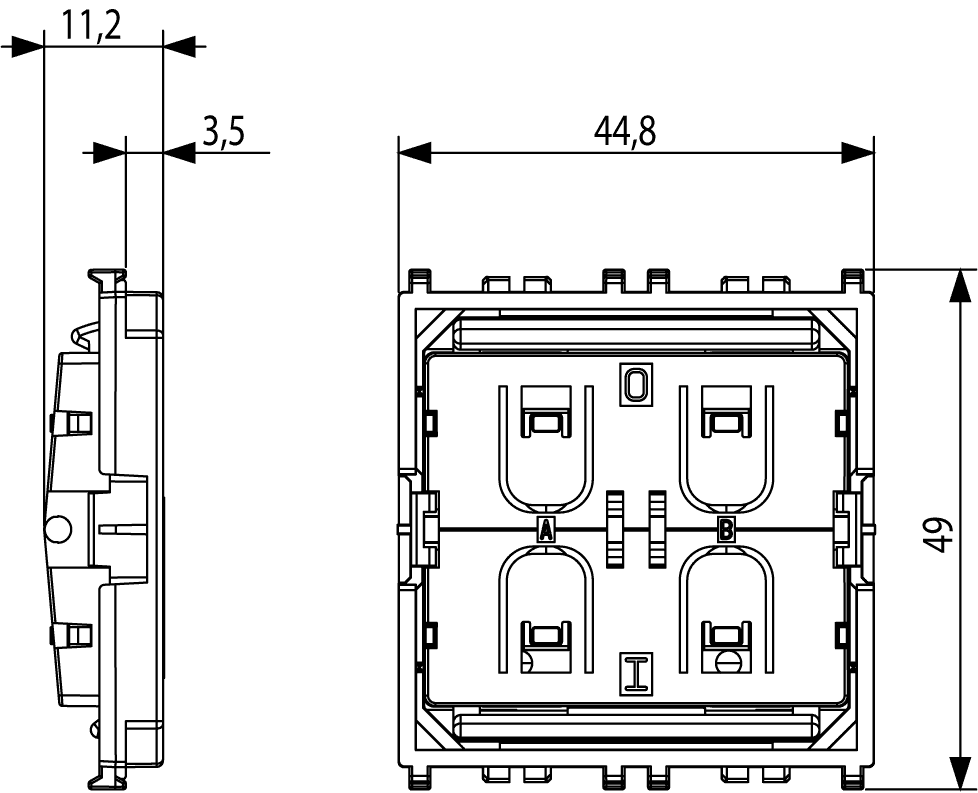

Drawings
Class group
Installation bus systems
Class
Light control unit for bus system
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Surface mounted (plaster)
Width in number of modular spa
2
Bus connection included
No
Substation input
No
Local operation/hand operation
No
With LED indication
No
Interface 1-10 V
No
Number of inputs for light sen
0
Degree of protection (IP)
IP40
Minimum order quantity: 1 NR
Barcode
8007352596030
1 NR
5.1x4.3x5.3 [cm]
38.3 [g]
8007352596047
6 NR
14.4x11.6x6 [cm]
275.6 [g]
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see conditions of use.
