Button 1M for RF switch Next - 2pieces - 20506.N

Pdf
Vimar - 20506.N - Button 1M for RF switch Next - 2pieces
Vimar - 20506.N - Button 1M for RF switch Next - 2pieces

20506.N
Smart systems&products / Smart switch&sound / EIKON / Buttons

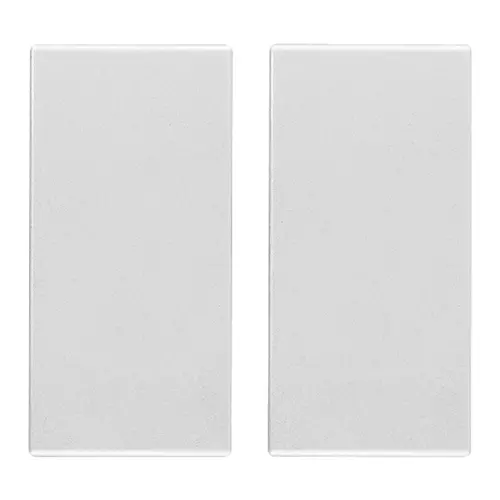

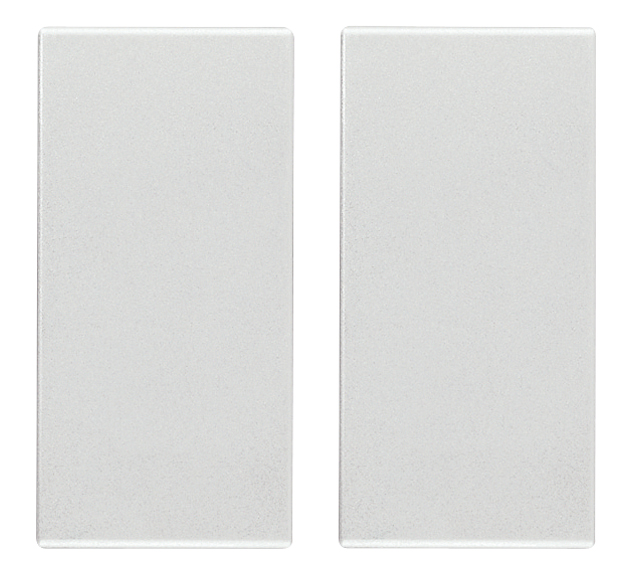

Button 1M for RF switch Next - 2pieces
1-module interchangeable buttons for EnOcean, Bluetooth, ZigBee radiofrequency devices, Next - 2 pieces

Product Status
3 - Active

Drawings

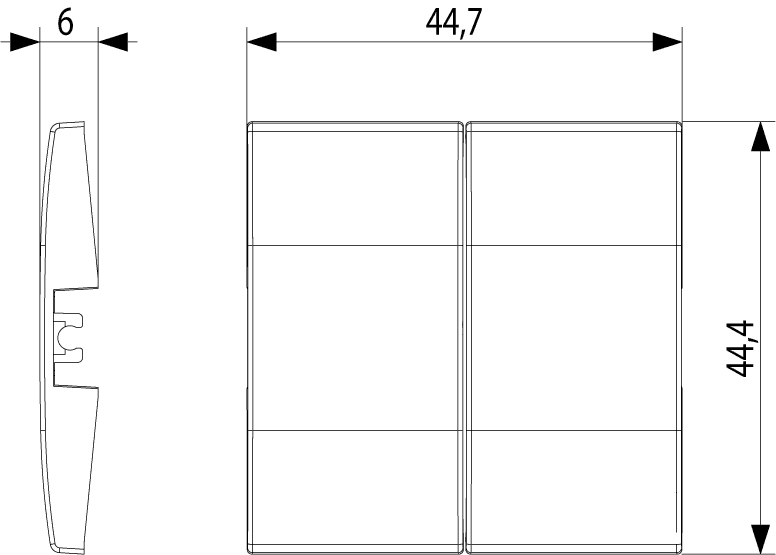

view encumbered art. 20506.N
PNG DXF

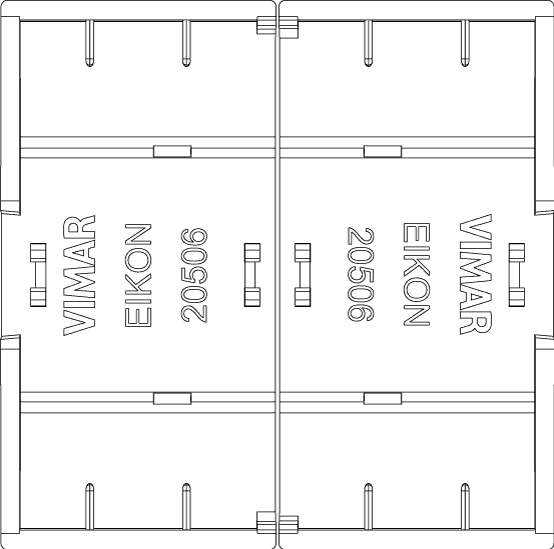

rear view art. 20506.N
PNG DXF

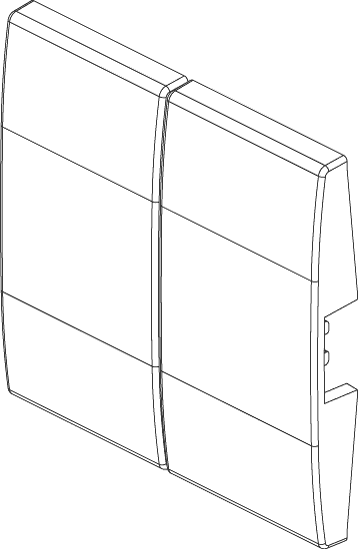

3D view art. 20506.N
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part button
Imprint/indication
None
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
600,00 mm

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352362796
1 NR
2.2x4.4x1.2 [cm]
4.8 [g]
Barcode Qty 10 NR
8007352362802
10 NR
12.3x9.6x5.1 [cm]
79.4 [g]
