Quid galvanic dividing moduleCode 03998

Download as PDFPDF
Immagine 03998
Immagine 03998Foto gallery 1
03998
Wiring devices / Traditional wiring devices / Shared components / Non-modular components

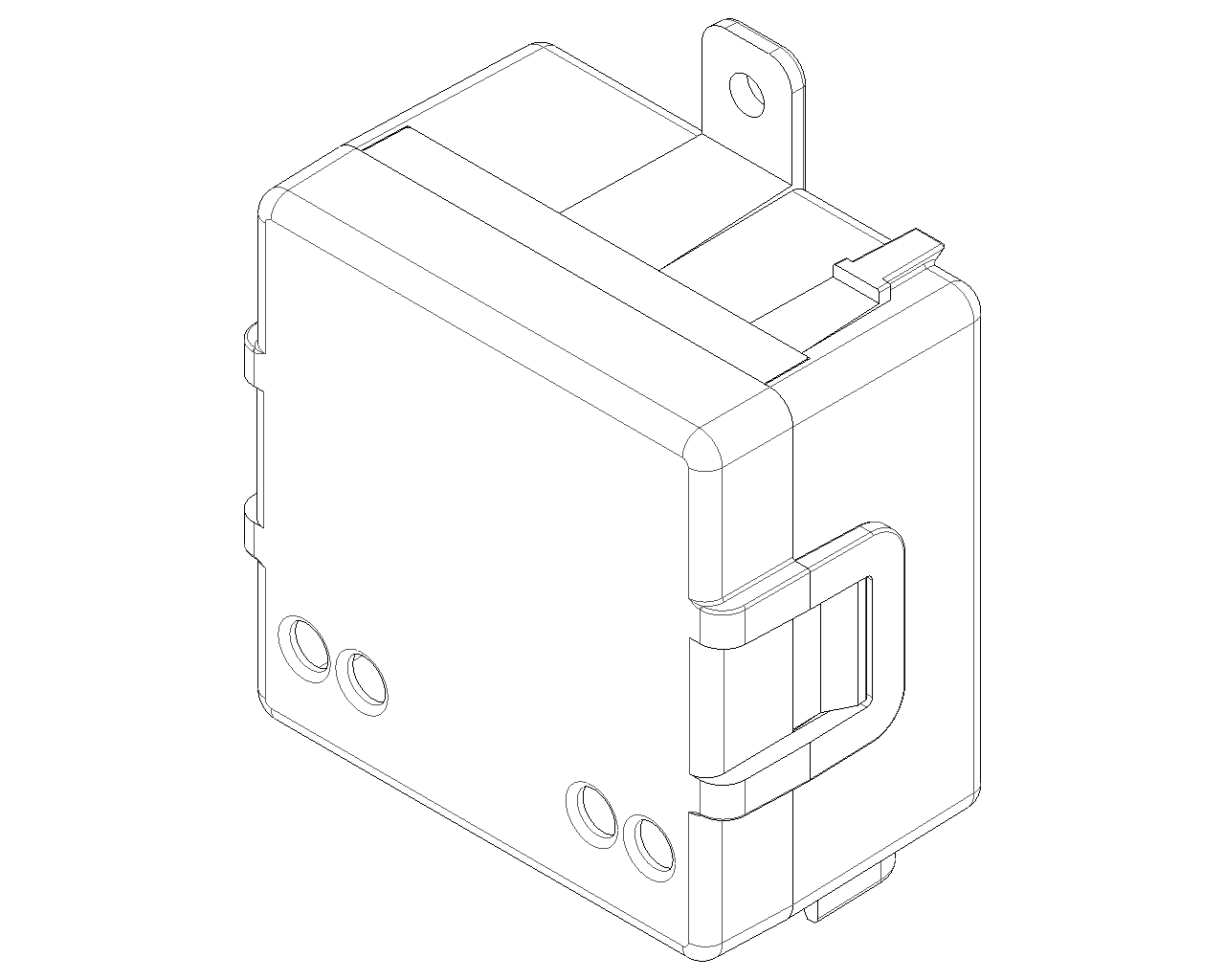

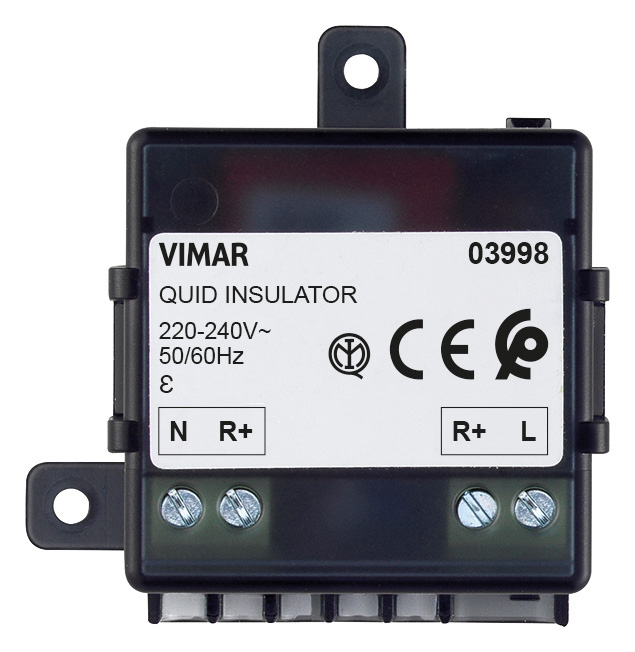

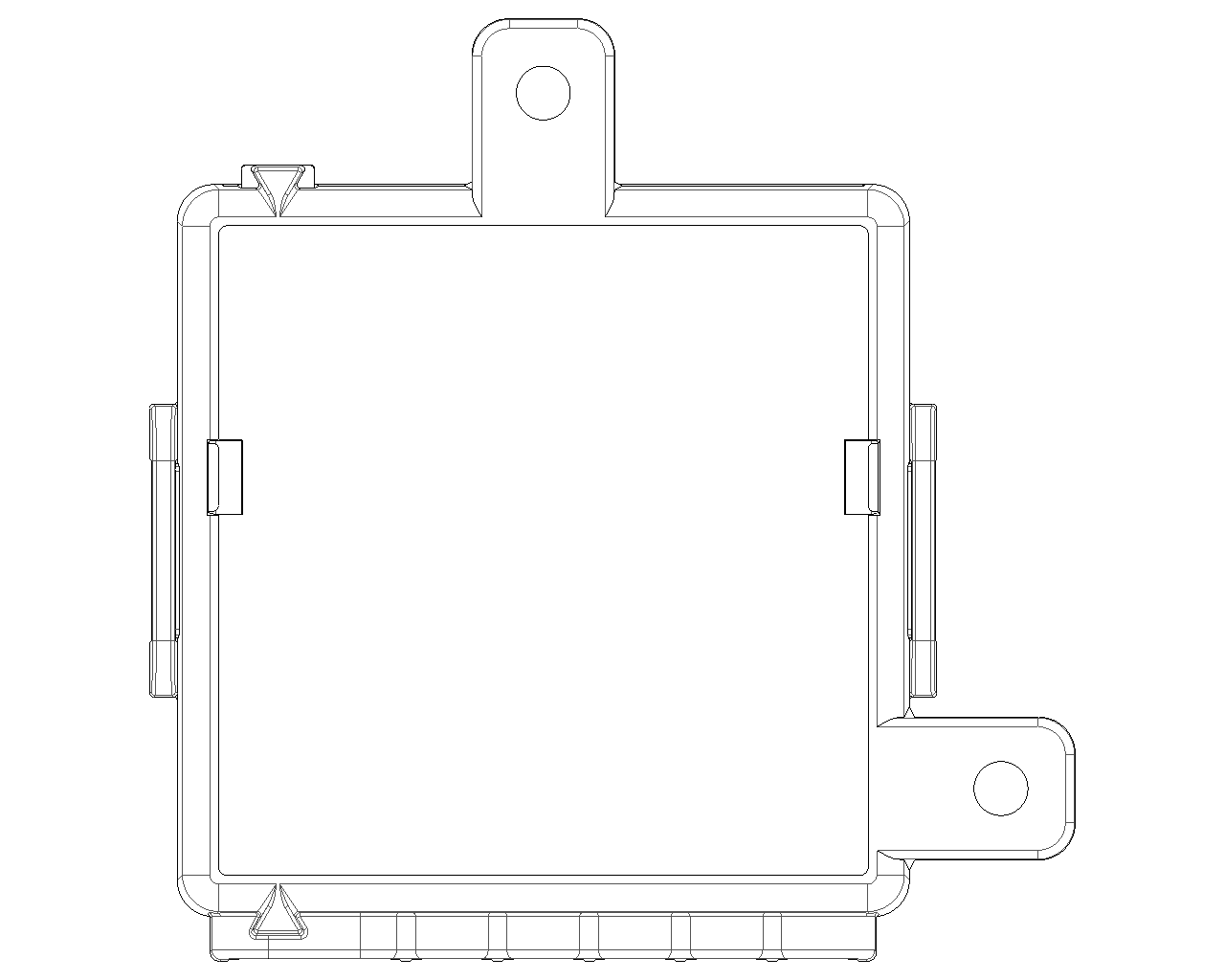

Quid galvanic dividing module
Quid galvanic dividing module, 1 input for NO reset push button from system A (Slave), 1 input for NO reset push button from system B (master), 1 input for system A (slave) neutral, 1 input for system B (master) phase, installation in junction boxes or connector block boxes
Product Status
3 - Active
Class group
Relays
Class
Switching relay
Type of electric connection
Other
Complete with socket
No
With detachable clamps
No
With LED indication
No

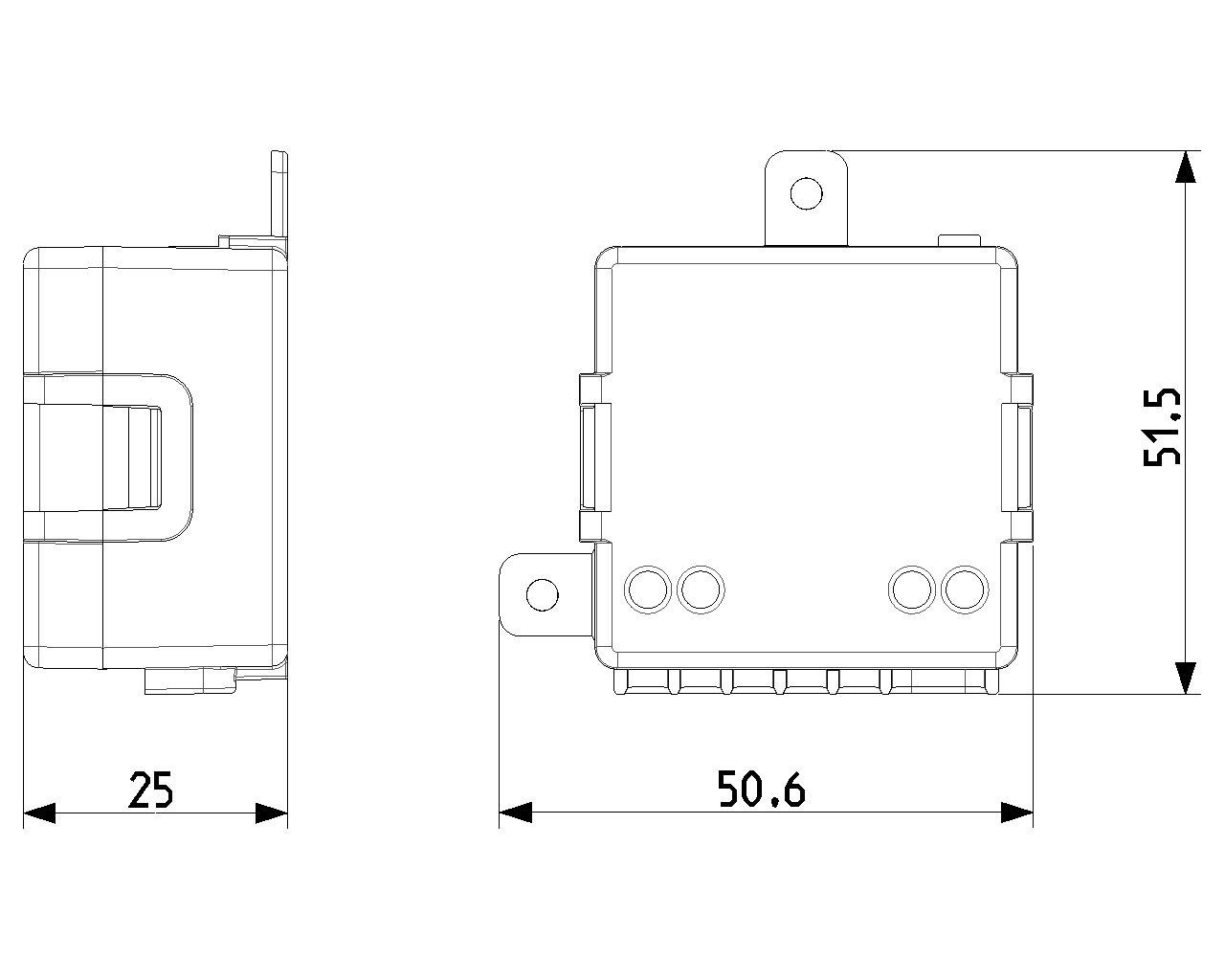

Width
50,60 mm
Height
51,50 mm
Depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352795846
1 NR
5.1x4.3x5.3 [cm]
40 [g]
Barcode Qty 6 NR
8007352795853
6 NR
14.4x11.6x6 [cm]
279.5 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Condizioni di utilizzo.
