1P 16AX 1-way switch mech.+pilot250V - 09001.0.250

Pdf

09001.0.250
Wiring devices / Traditional wiring devices / NEVE UP / Devices

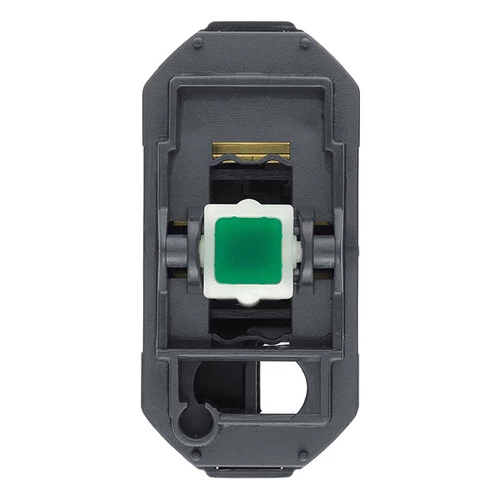

1P 16AX 1-way switch mech.+pilot250V
1P 16 AX 250 V~ 1-way switch mechanism, with white indicator light, to be completed with 1-2 module button. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22,30 mm
Device height
47,00 mm
Device depth
33,00 mm
Built-in depth
23,10 mm

00. CE Marking - EU

13. SNI-MGI - Indonesia

29. QCERT - Colombia

37. Marking - Morocco

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352657700
1 NR
4.1x2.8x5.3 [cm]
23.8 [g]
Barcode Qty 50 NR
8007352657717
50 NR
21.4x11.6x14.2 [cm]
1,270 [g]
Barcode Qty 500 NR
8007352657724
500 NR
57.5x22x29.5 [cm]
13,000 [g]
