Button 1M fan symbol carbon matt - 09021.F.CM

09021.F.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

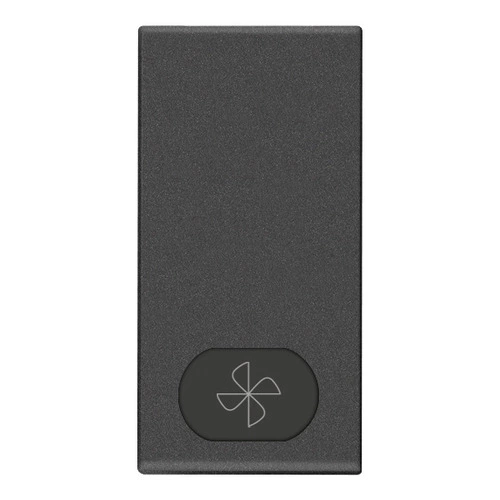

Button 1M fan symbol carbon matt
1-module interchangeable button, lighTable fan symbol, carbon matt

Product Status
3 - Active

You may also be interested in

09021.F.CM - Button 1M fan symbol carbon matt

09005.0.250 - 1P 16AX 2-way switch mechan.+pilot250V

09008.0.250 - 1P NO 10A push button mechan.+pilot 250V

09008.0.12 - 1P NO 10A push button mechan.+pilot 12V

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Control element/cover plate for domestic switching devices

Model
One-part rocker

Utilization
Switch/push button

Suitable for touch sensor connector for bus system
No

Type of fastening
Clamp mounting

Monitoring window/light outlet
Yes

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Matt

Colour
Anthracite

RAL-number (similar)
7016

With exchangeable lens/symbol
Yes

Depth
750,00 mm

00. CE Marking - EU

29. QCERT - Colombia

29. QCERT - Colombia

Minimum order quantity: 50 NR

---

Barcode

8007352659414

1 NR

2.2x4.4x1.1 [cm]

6.32 [g]

8007352659421

5 NR

5.1x2.8x5.3 [cm]

23.87 [g]

8007352659438

50 NR

14.4x11.6x6 [cm]

281 [g]

8007352668690

600 NR

36.5x33x13.5 [cm]

3,792 [g]
