1P NO 10A push button mechan.+pilot 250V - 09008.0.250

Pdf
Vimar - 09008.0.250 - 1P NO 10A push button mechan.+pilot 250V
Vimar - 09008.0.250 - 1P NO 10A push button mechan.+pilot 250V
09008.0.250

Neve Up / Devices / Basic devices

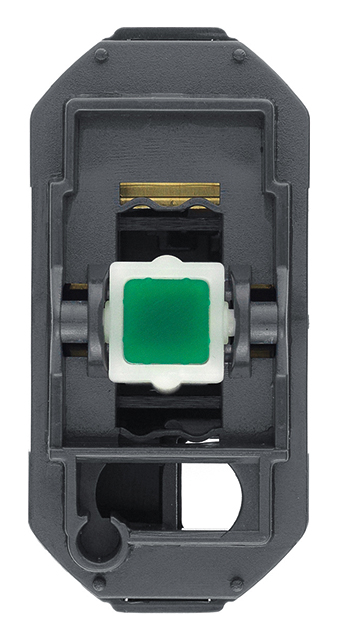

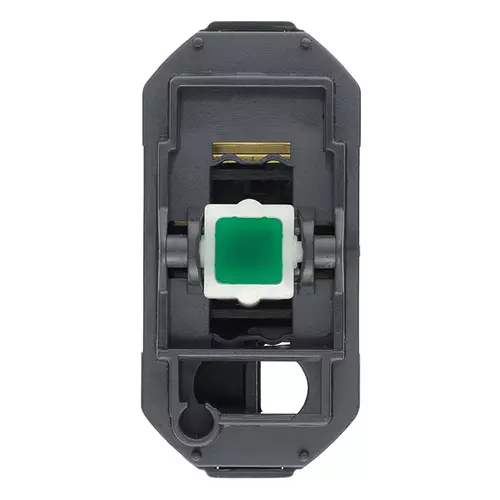

1P NO 10A push button mechan.+pilot 250V
1P NO 10 A 250 V~ push button mechanism, with white indicator light, to be completed with 1-2 module button

Product Status
3 - Active

You may also be interested in

09008.0.250
09008.0.250 - 1P NO 10A push button mechan.+pilot 250V
09021.N.CM
09021.N.CM - Button 1M neutral carbon matt
09022.N
09022.N - Button 2M neutral white
09022.N.CM
09022.N.CM - Button 2M neutral carbon matt
09021.L
09021.L - Button 1M light symbol white
09021.L.CM
09021.L.CM - Button 1M light symbol carbon matt
09021.C
09021.C - Button 1M bell symbol white
09021.C.CM
09021.C.CM - Button 1M bell symbol carbon matt
09021.S
09021.S - Button 1M switch ON symbol white
09021.S.CM
09021.S.CM - Button 1M switch ON symbol carbon matt

Drawings

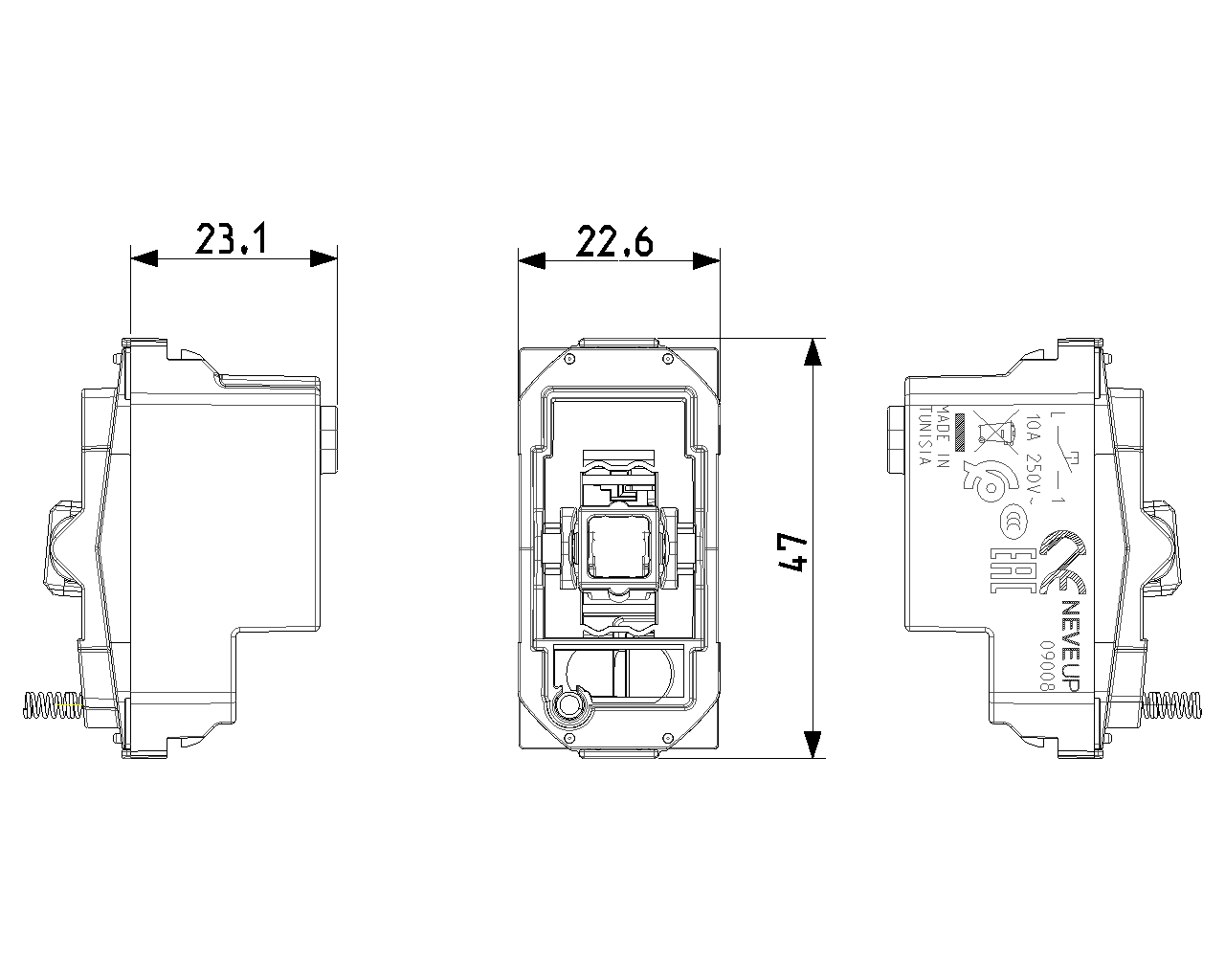

view encumbered art. 09008.0.250
PNG DXF

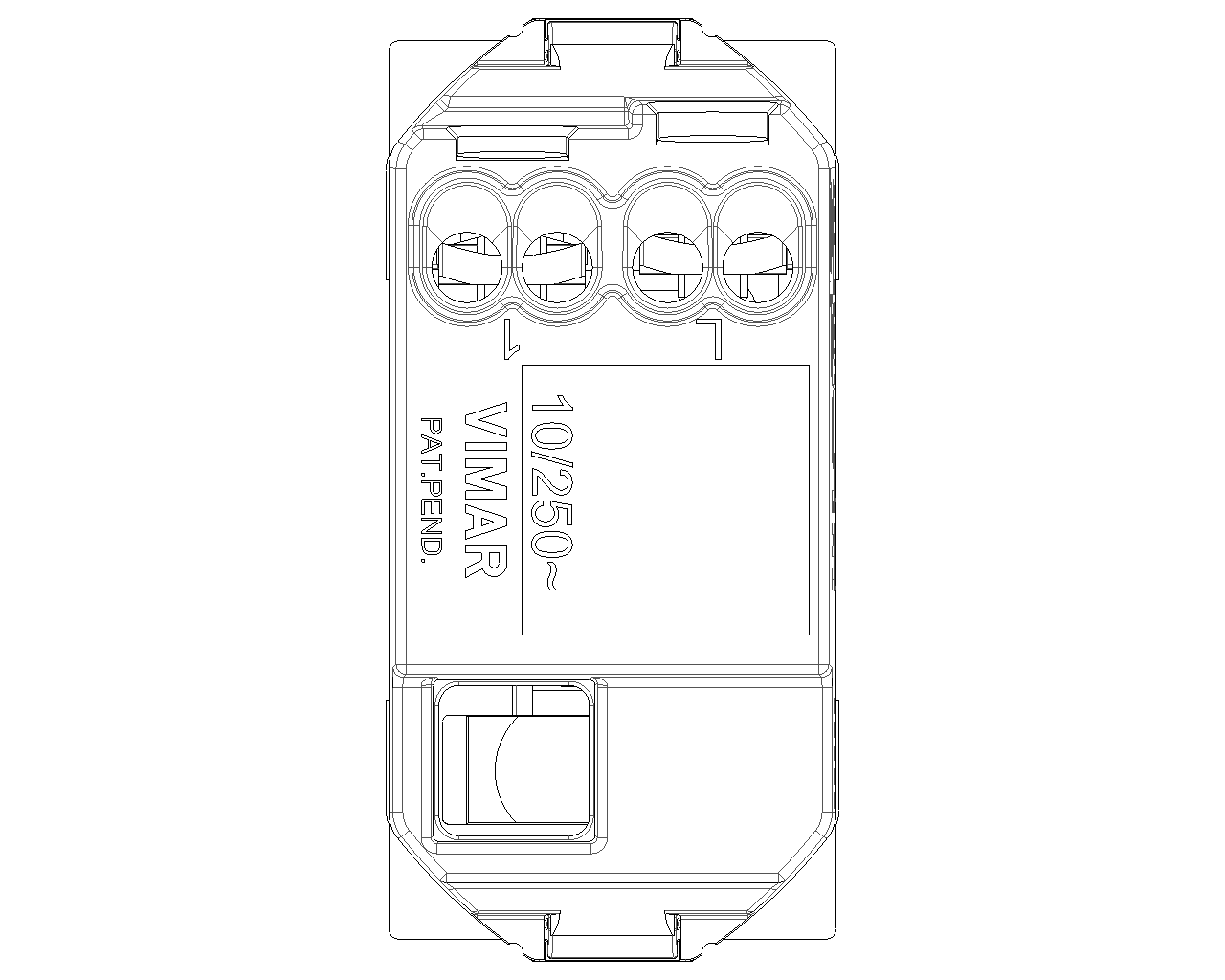

rear view art. 09008.0.250
PNG DXF

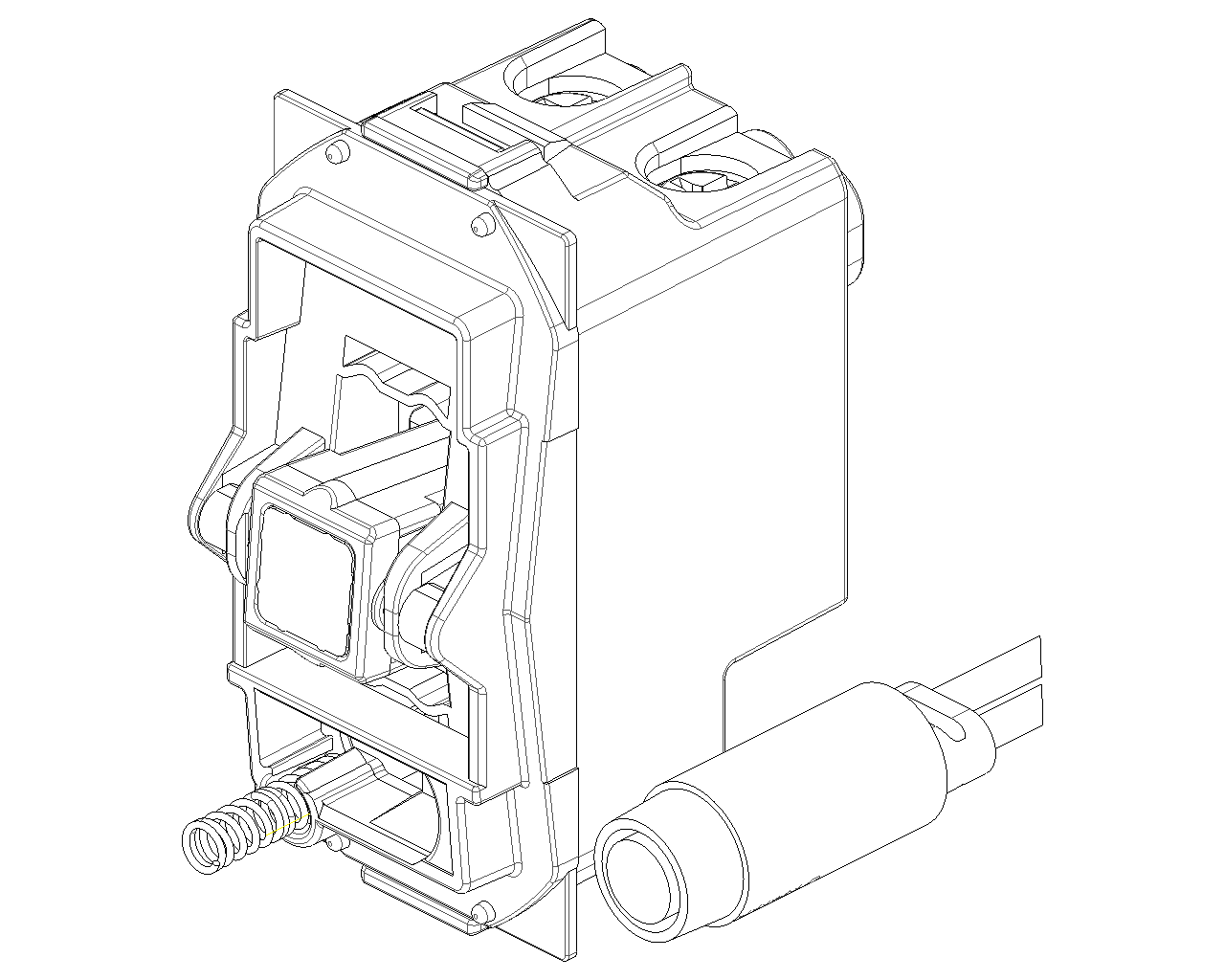

3D view art. 09008.0.250
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Device width
22,60 mm
Device height
47,00 mm
Device depth
35,10 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesia

15. CCC - China

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352658011
1 NR
4.1x2.8x5.3 [cm]
23.6 [g]
Barcode Qty 50 NR
8007352658028
50 NR
21.4x11.6x14.2 [cm]
1,270 [g]
Barcode Qty 500 NR
8007352658035
500 NR
57.5x22.5x30 [cm]
13,000 [g]
