Dimmer MASTER 230V universal whiteCode 09135.1
- 09135.1
- Wiring devices / Traditional wiring devices / NEVE UP / Devices

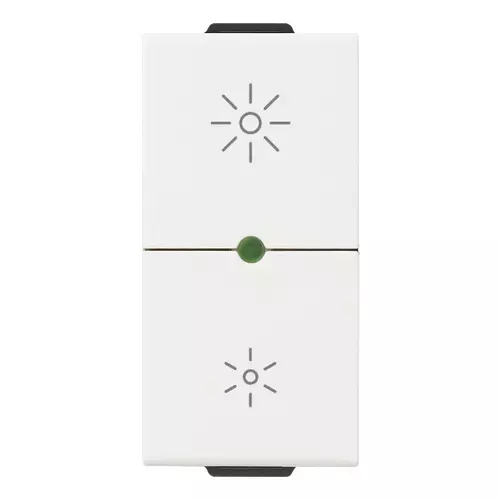

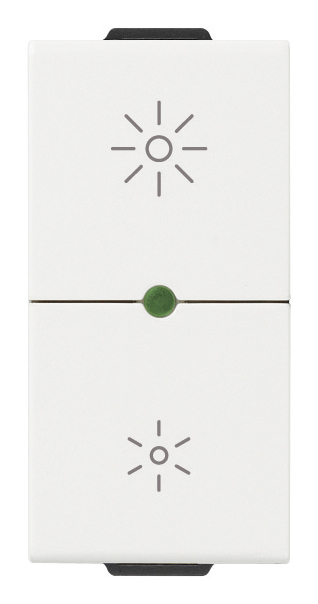

- Dimmer MASTER 230V universal white
- Universal phase cutting dimmer 230 V~ 50 Hz, for 40-300 W incandescent lamps, 40-300 VA electronic transformers, 10-200 W CFL lamps, 3-200 W LED lamps, for LED phase cutting electronic power supply units, ON/OFF control and regulation by built-in push button or via NO peripheral push buttons, MASTER function for 14137, minimum brightness control, visible in darkness, white. Device not suiTable for installation in Isoset enclosures
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Dimmer
Dimmer
Operating method
Push button
Push button
App control via Bluetooth
No
No
Type of load
Universal and LED Retrofit
Universal and LED Retrofit
Applicable with button
Yes
Yes
Applicable with movement sensor
No
No
Applicable with presence indicator
No
No
Applicable with time switch/timer
No
No
Applicable with transmission button
No
No
Applicable with infrared button
No
No
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Click in mounting
Click in mounting
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
White
White
RAL-number (similar)
9003
9003
Transparent
No
No
Nominal voltage
230,00 - 230,01 V
230,00 - 230,01 V
Frequency
50,00 - 50,01 HZ
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 V
230,00 - 230,01 V

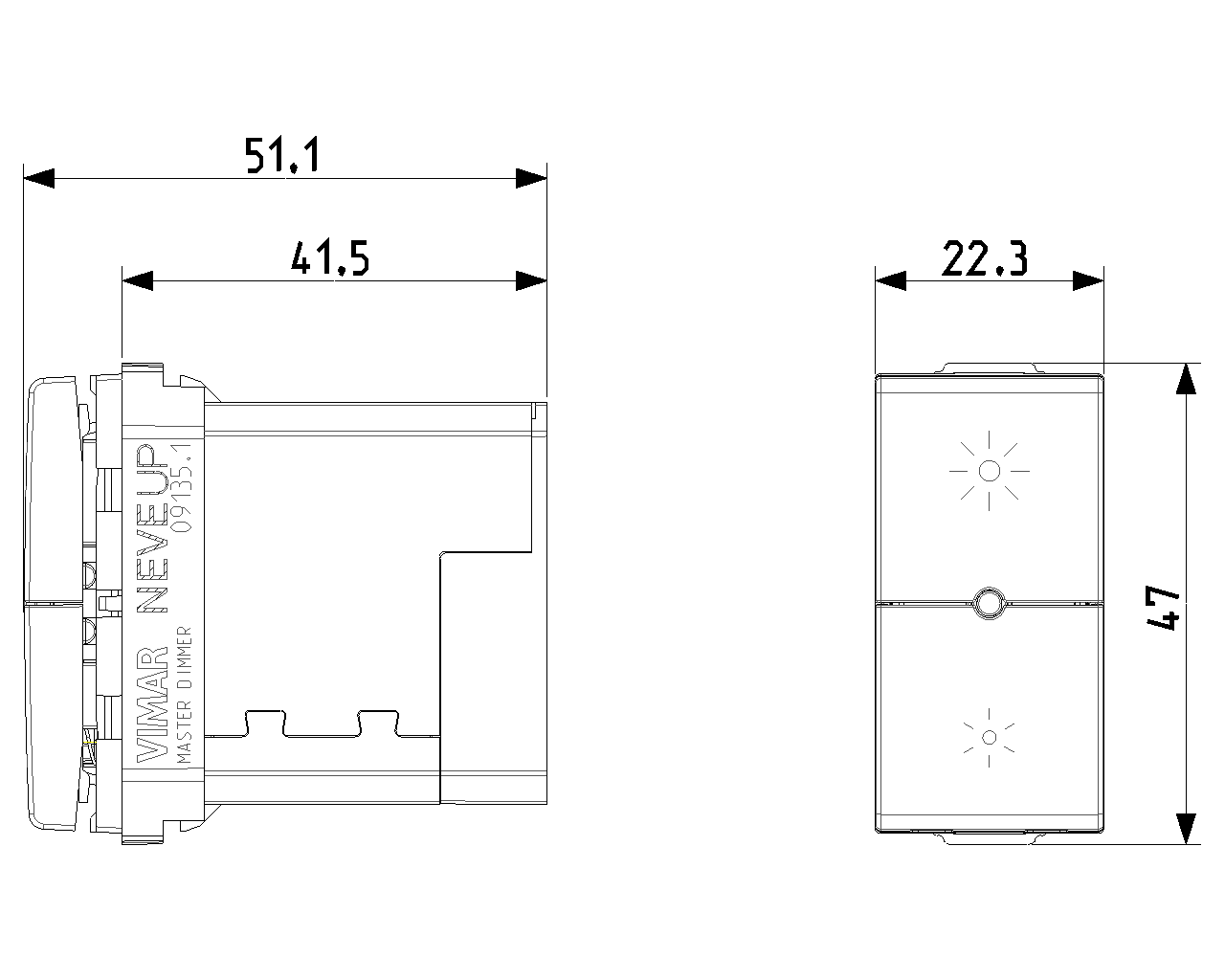

Device width
22,30 mm
22,30 mm
Device height
47,00 mm
47,00 mm
Device depth
51,10 mm
51,10 mm
00. CE Marking - EU
00. CE Marking - EU
37. Marking - Morocco
37. Marking - Morocco
Minimum order quantity: 10 NR
Barcode

8007352664494
1 NR
5.1x4.3x5.3 [cm]
53.2 [g]

8007352664500
10 NR
26.9x11.6x4.9 [cm]
599.2 [g]

8007352666283
200 NR
47.5x27x29 [cm]
12,208 [g]
