TV-RD-SAT through-line male outlet white - 09300.10

09300.10
Wiring devices / Traditional wiring devices / NEVE UP / Devices

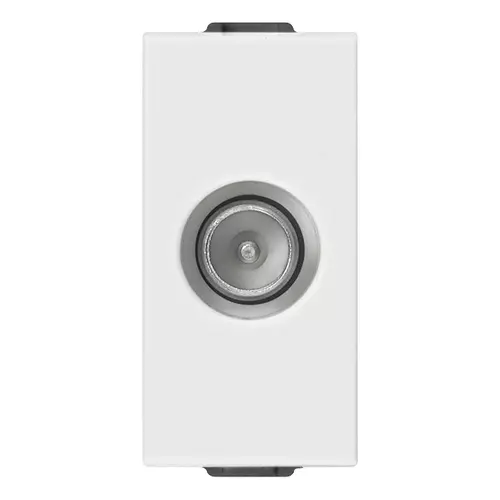

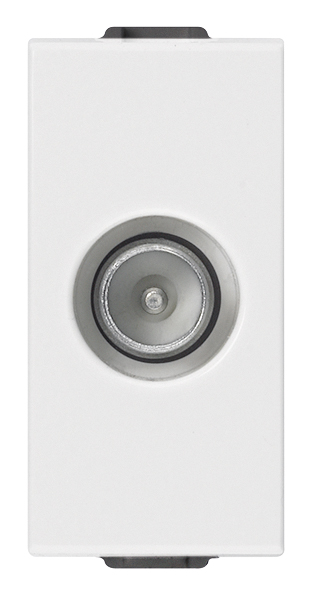

TV-RD-SAT through-line male outlet white
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, with male connector, connection attenuation 10 dB, white

Product Status
3 - Active

You may also be interested in

09300.01 - TV-RD-SAT single conn.male outlet white

09303 - TV-FM-SAT single conn. 3outs white

09318 - F-type TV outlet white

09313 - TV IEC single connection outlet white

09302.01 - TV-RD-SAT single conn.outlet 2outs white

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

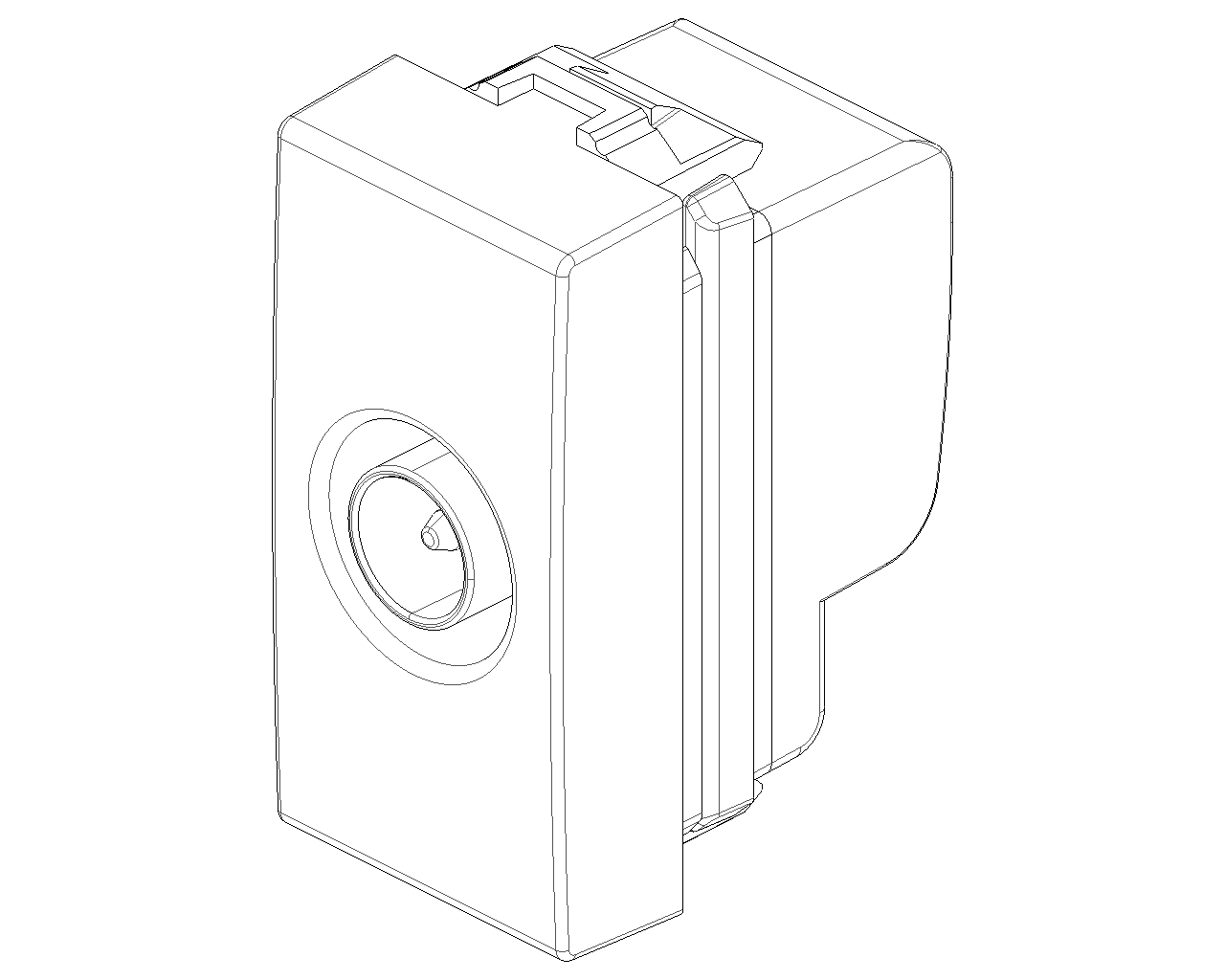

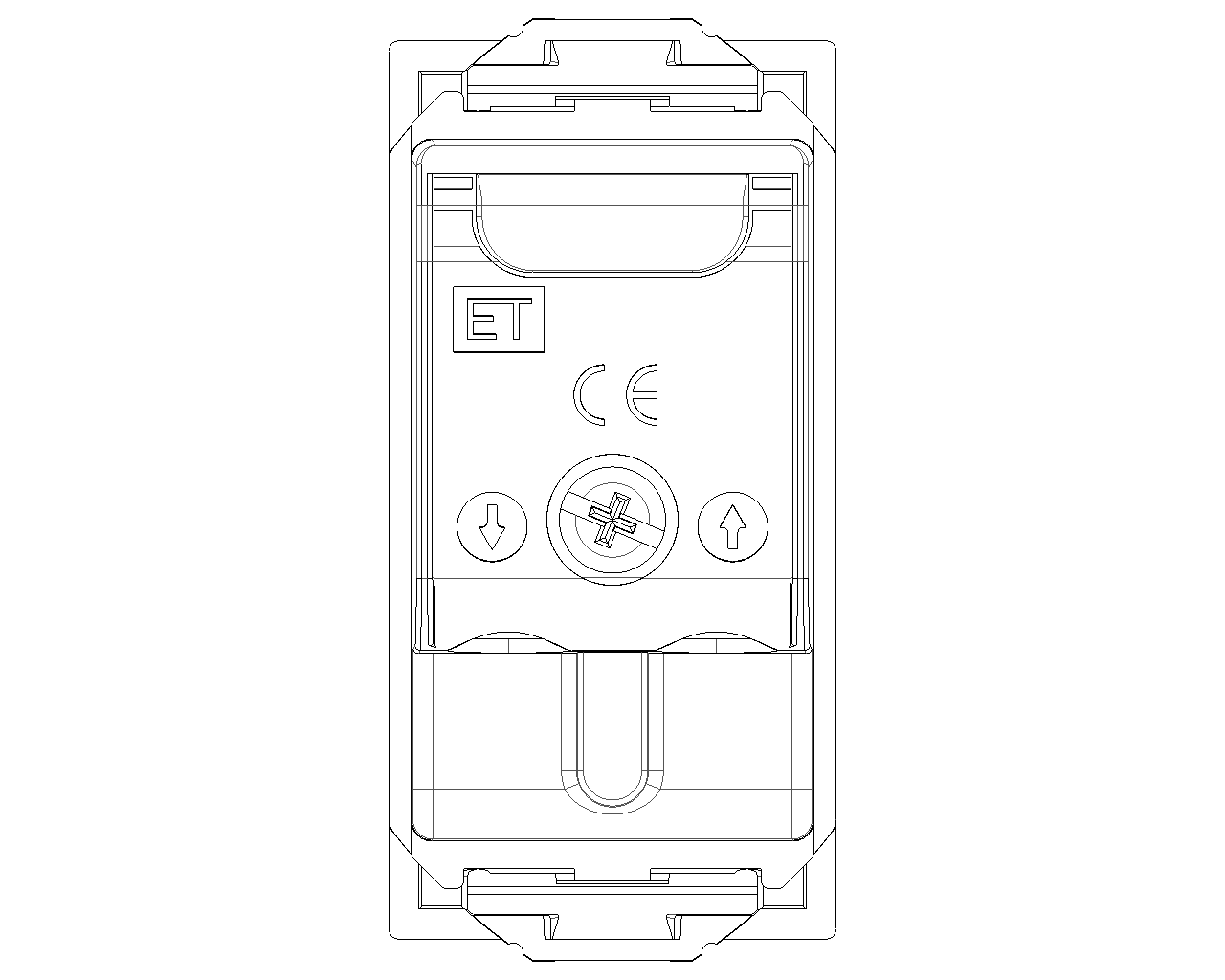

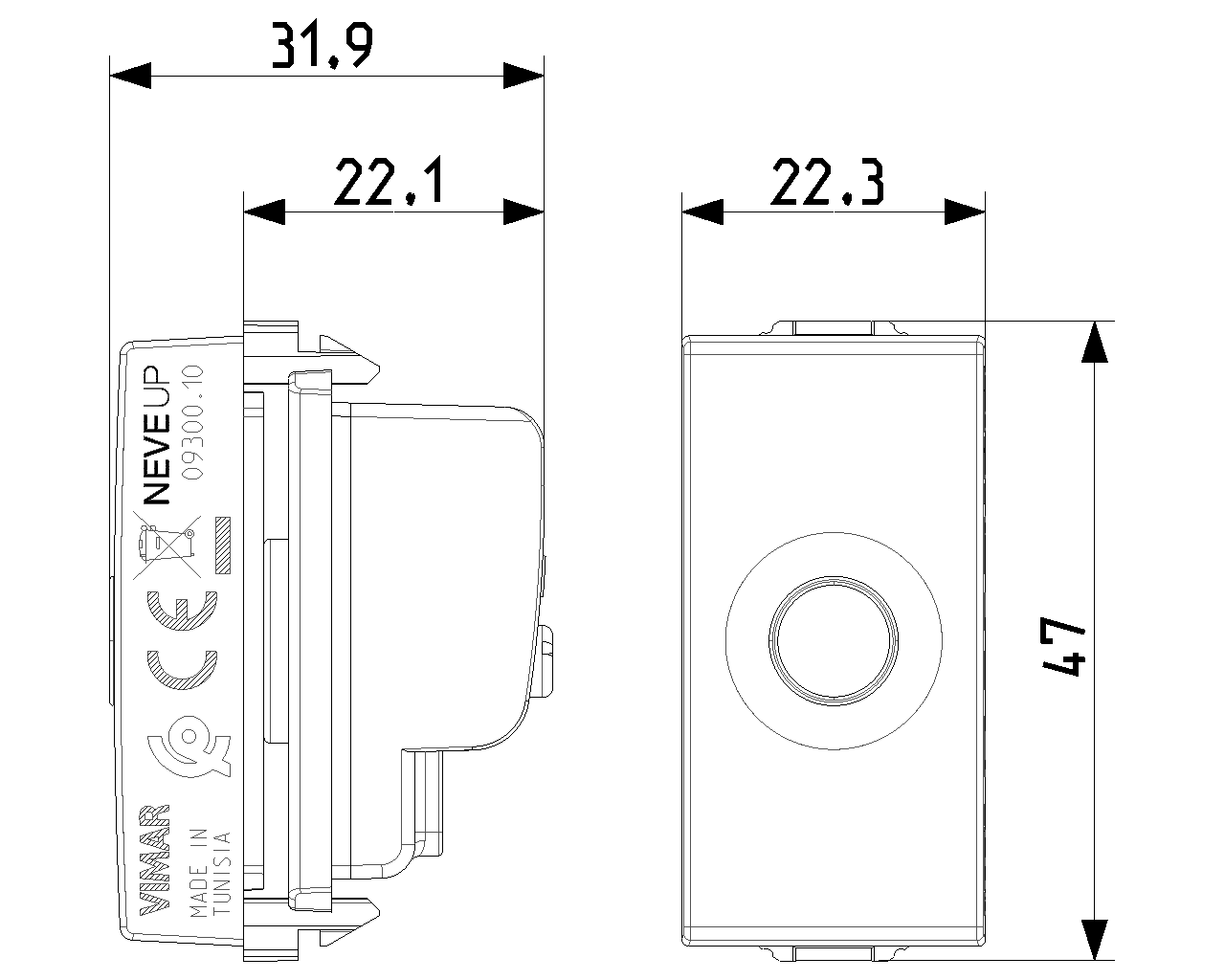

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
Loop-through socket

Cover
None

Tap loss at 860 MHz
10,60 dB

Tap loss at 2150 MHz
9,90 dB

Number of outlets
1

Through loss at 860 MHz
2,20 dB

Through loss at 2150 MHz
3,40 dB

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
White

RAL-number (similar)
9003

Surface finishing
Glossy

Material
Plastic

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352296411

1 NR

4.1x2.8x5.3 [cm]

50.4 [g]

8007352296428

10 NR

14.4x9x6 [cm]

537.4 [g]

8007352296435

160 NR

37.5x30x13.5 [cm]

8,846.6 [g]
