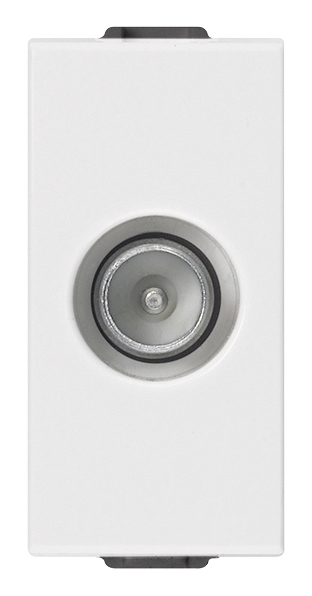

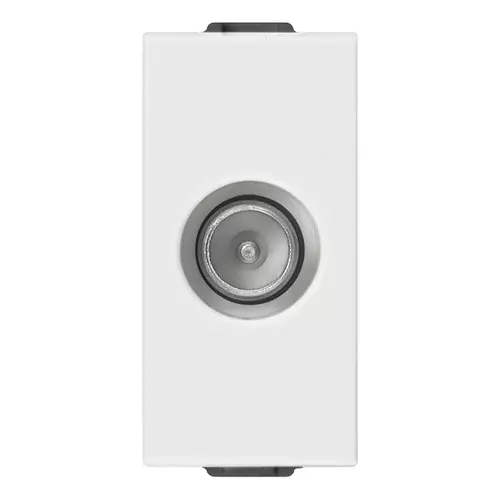

TV-RD-SAT single conn.male outlet white
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, single connection, with male connector, connection attenuation 1 dB, white. Allows the passage of d.c. current and control signals (24 V 500 mA max)

Product Status
3 - Active

You may also be interested in

Class group
Antenna and satellite technique
Class
Antenna socket
Model
End socket
Cover
None
Tap loss at 860 MHz
0,10 dB
Tap loss at 2150 MHz
0,20 dB
Number of outlets
1
Suitable for remote power supply
Yes
Frequency
5 - 2400 MHz
Type of fastening
Snap mounting (engagement)
Surface finishing
Glossy
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352296381
1 NR
4.1x2.8x5.3 [cm]
39.8 [g]
Barcode Qty 10 NR
8007352296398
10 NR
14.4x9x6 [cm]
434.2 [g]
Barcode Qty 160 NR
8007352296404
160 NR
37.5x30x13.5 [cm]
7,270 [g]
