TV-RD-SAT single conn.outlet 2outs whiteCode 09302.01
- 09302.01
- Wiring devices / Traditional wiring devices / NEVE UP / Devices

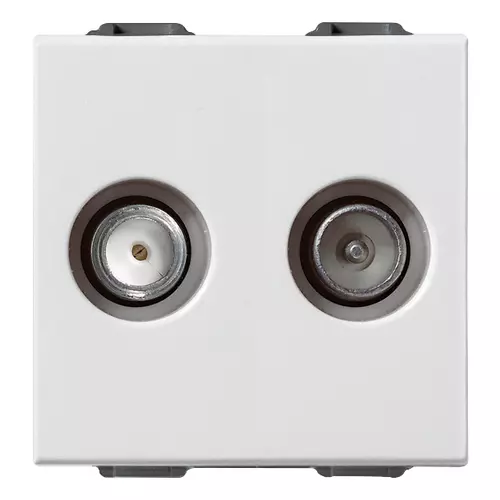

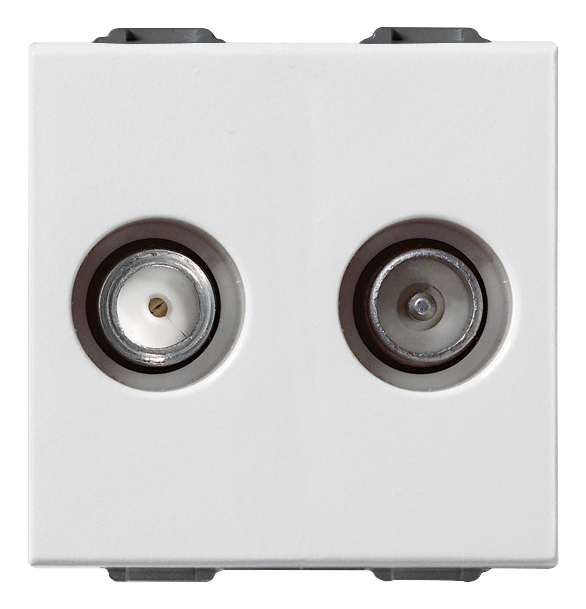

- TV-RD-SAT single conn.outlet 2outs white
- TV-RD-SAT coaxial socket outlet, 5-2400 Mhz, single connection, demixed, 2 outputs with male connector (TV-RD) and female connector type F (SAT), 1 dB connection attenuation, white - 2 modules. Allows the passage of DC current and control signals (24 V 500 mA max)
- Product Status
- 3 - Active
You may also be interested in

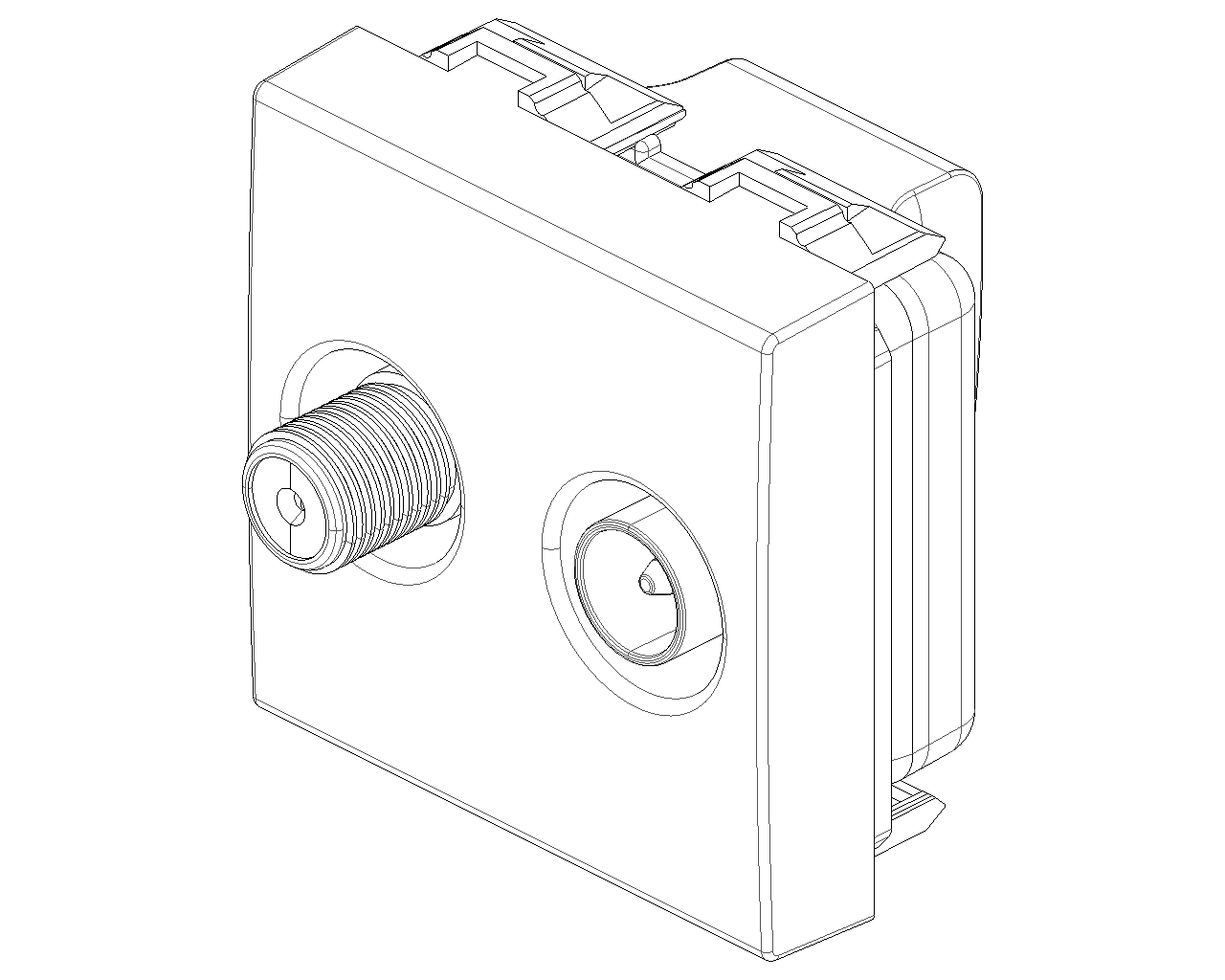

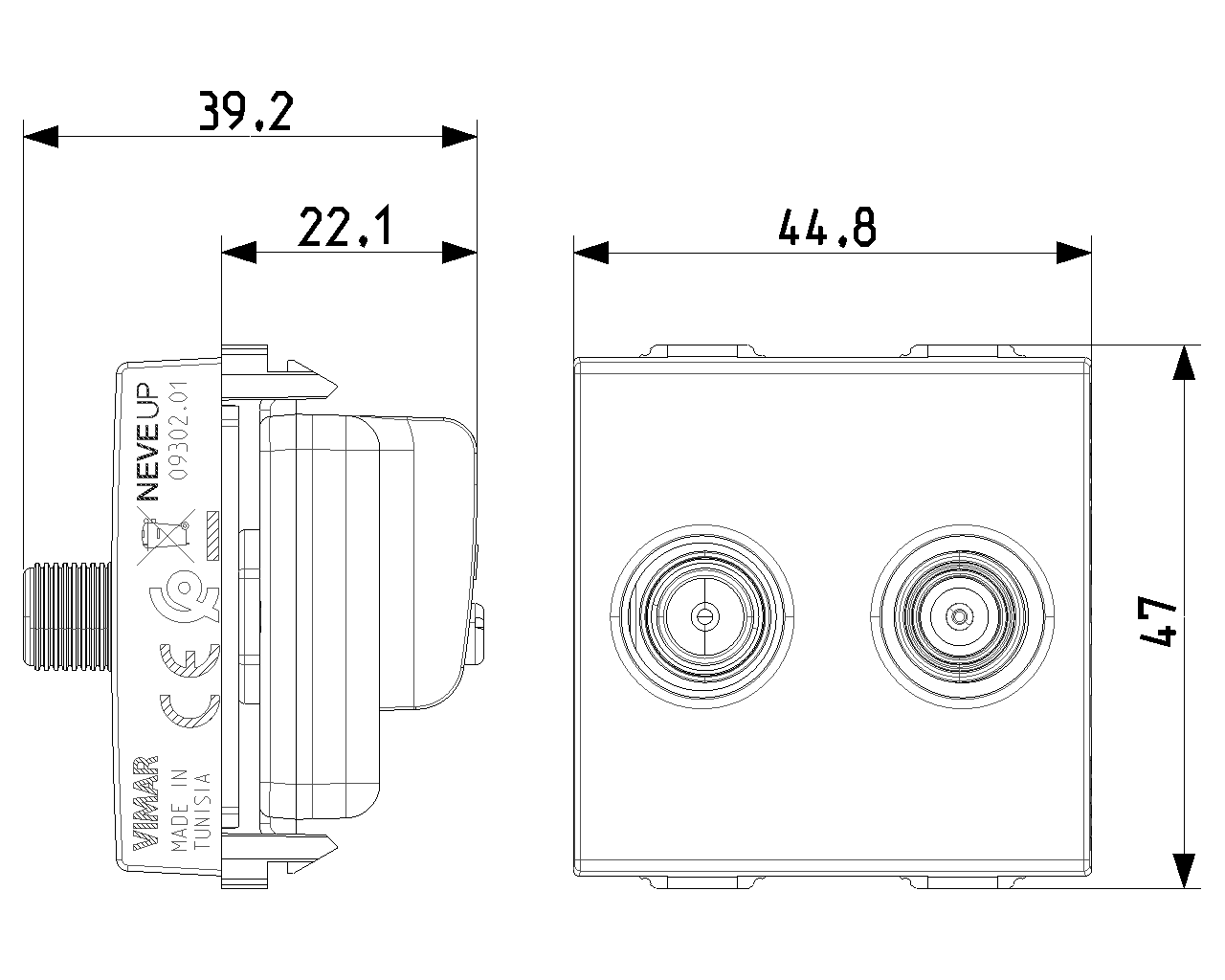

Drawings
Class group
Antenna and satellite technique
Antenna and satellite technique
Class
Antenna socket box
Antenna socket box
Number of outlets
2
2
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Colour
White
White
RAL-number (similar)
9003
9003
Surface finishing
Glossy
Glossy
Material
Plastic
Plastic
Device width
44,80 mm
44,80 mm
Device height
47,00 mm
47,00 mm
Device depth
39,20 mm
39,20 mm
Minimum order quantity: 10 NR
Barcode
8007352403086
1 NR
5.1x4.3x5.3 [cm]
78.12 [g]
8007352403093
10 NR
26.9x11.6x4.9 [cm]
840.5 [g]
8007352668171
200 NR
47.5x27x29 [cm]
17,330 [g]
