Frame 2M wihtout screws 71mm - 09603.1

09603.1

Neve Up / Mounting frames / For round boxes

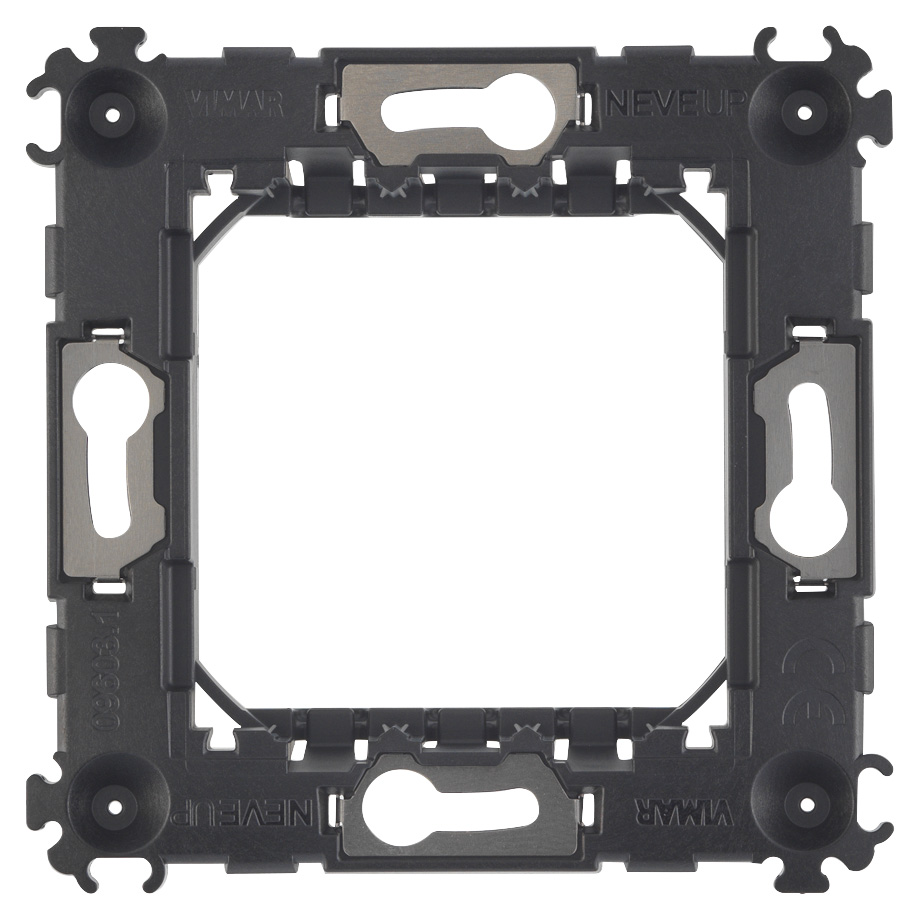

Frame 2M wihtout screws 71mm
2-module mounting frame, screw-less, for flush mounting boxes with distance between centres of 60 mm, modular with distance between centres of 71 mm

Product Status
3 - Active

You may also be interested in

07935.1 - Screw for frame fixing - 24mm

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

09602.1 - Frame 2M +claws 71mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

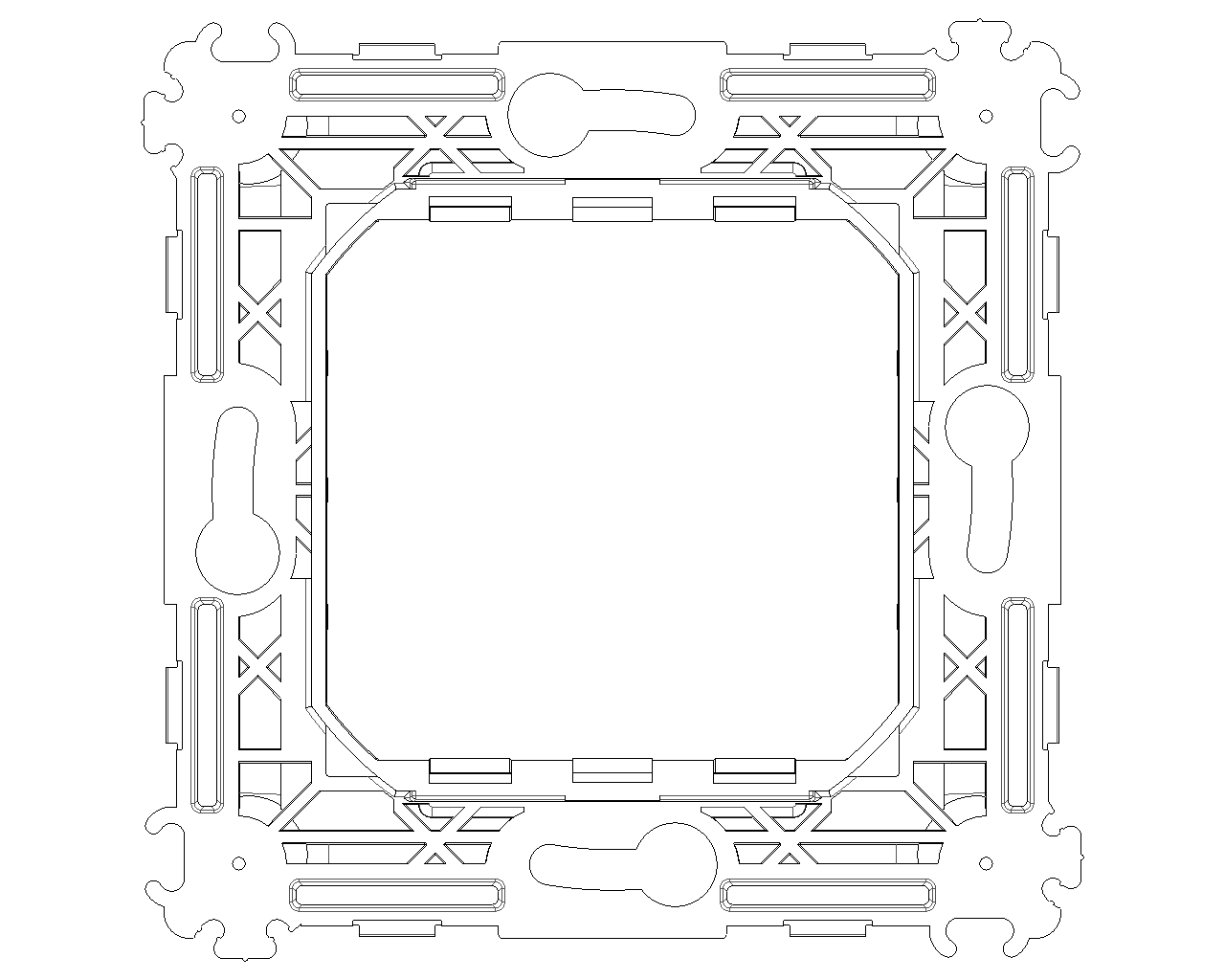

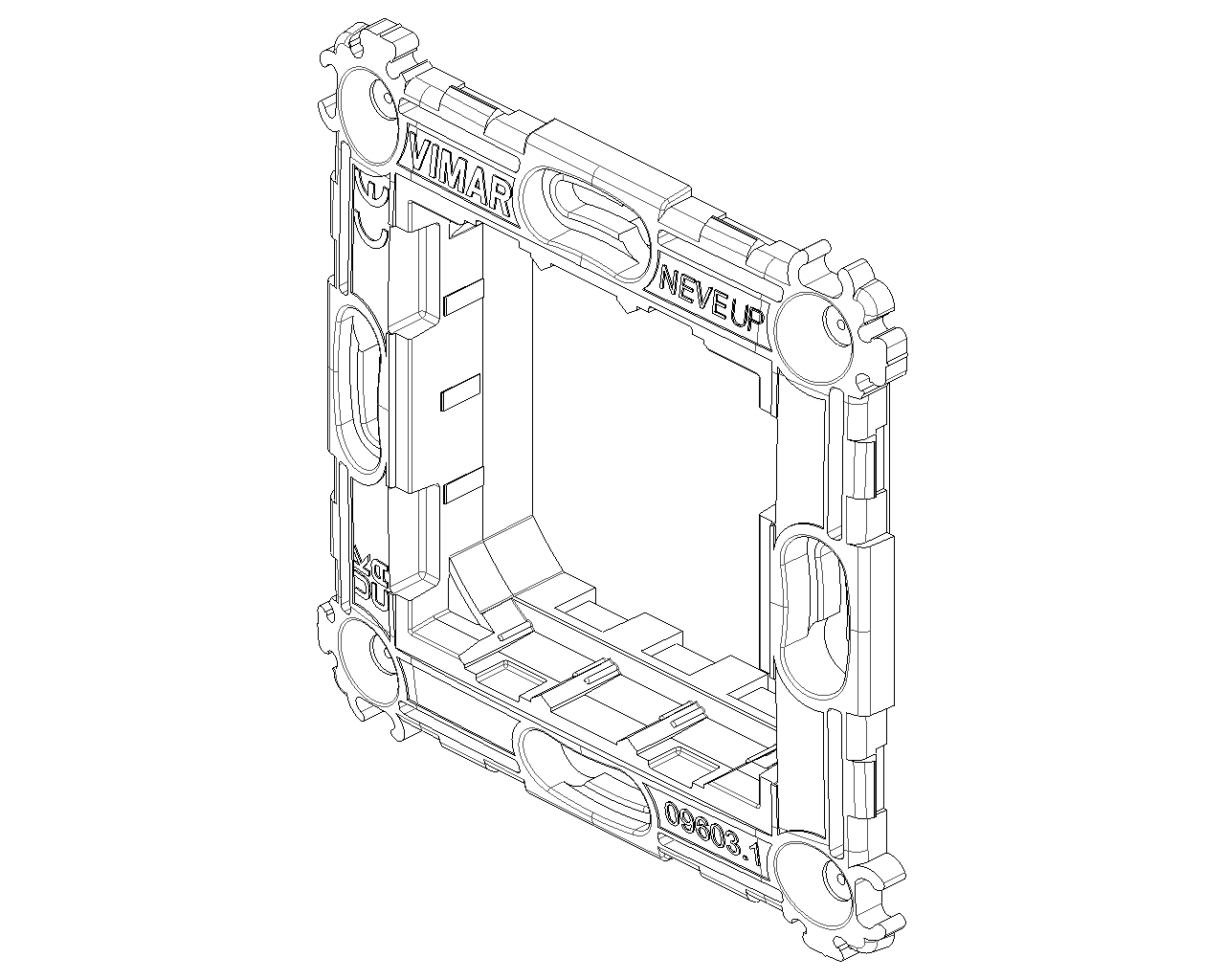

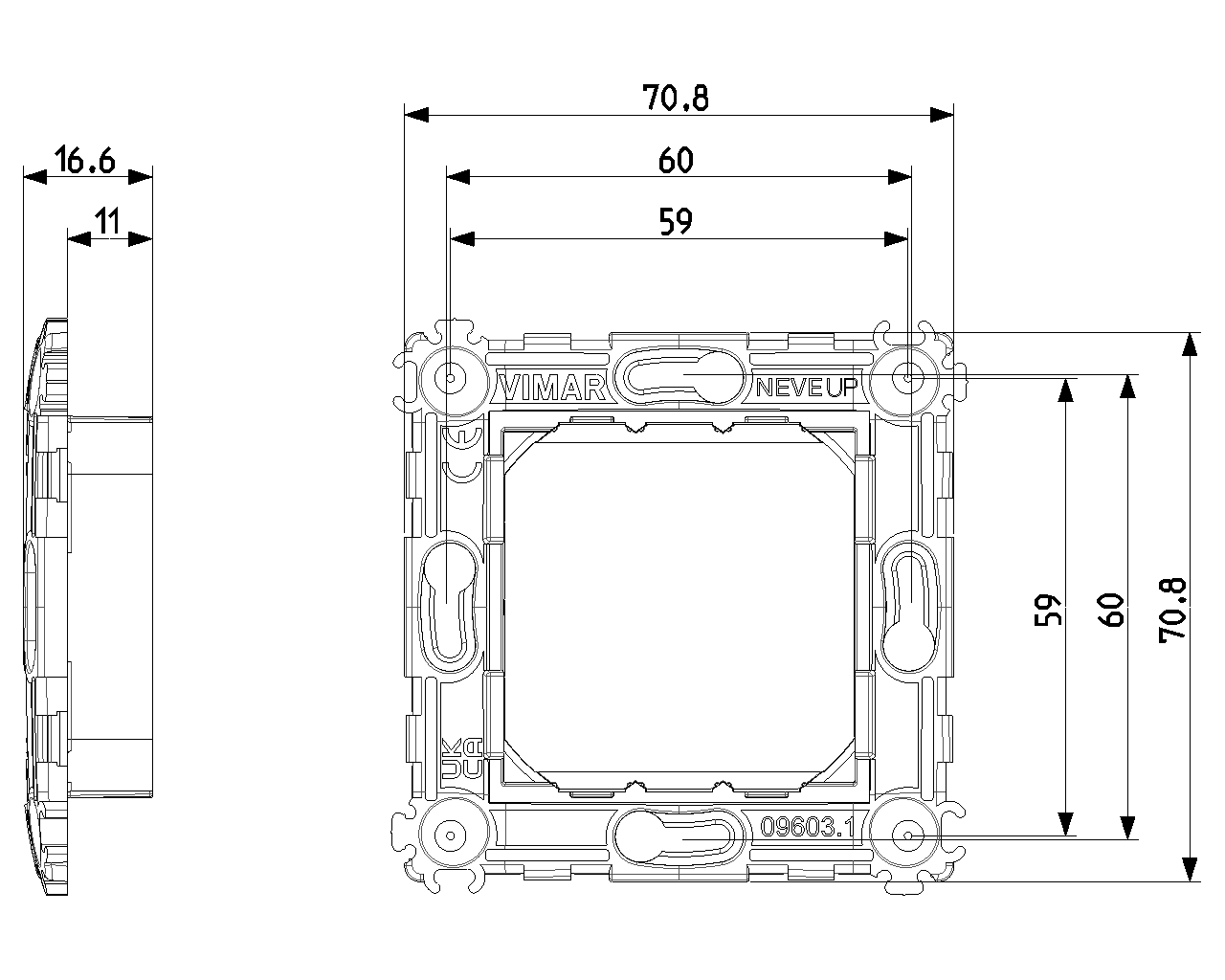

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush mounted (plaster)

Mounting method
Mounting with claw

With nail
No

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for floor box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

Minimum order quantity: 50 NR

---

Barcode

8007352654907

1 NR

7.3x7.3x2.5 [cm]

13.95 [g]

8007352654914

50 NR

28.6x24.8x9.6 [cm]

836.4 [g]

8007352654921

300 NR

62x26x30 [cm]

5,543.8 [g]
