Surface-box 12-14M whiteCode 09920.01
- 09920.01
- System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

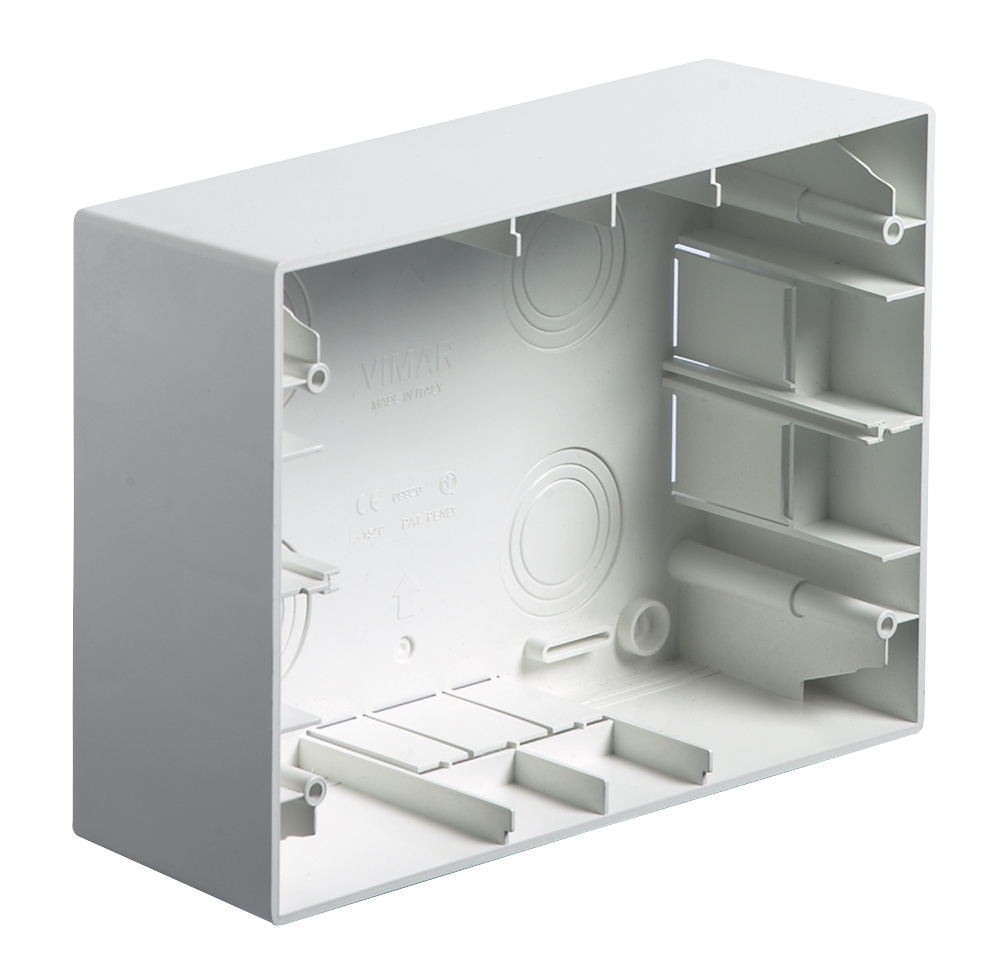

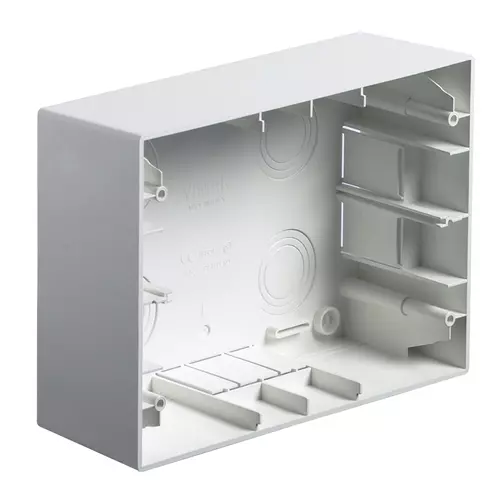

- Surface-box 12-14M white
- Surface mounting box for 12 (6+6)-module Idea or 14 (7+7)-module Eikon or Plana with relevants mounting frames and cover plates, white. Eikon series: suitable only for Eikon Chrome cover plates
- Product Status
- 3 - Active
You may also be interested in
Drawings
Class group
Electrical installation, isolation and connection material
Electrical installation, isolation and connection material
Class
Box/housing for surface mounting on the wall/ceiling
Box/housing for surface mounting on the wall/ceiling
Model
Mounting box
Mounting box
Equipped with
None
None
Max. conductor cross section
0,00 mm2
0,00 mm2
Shape
Rectangular
Rectangular
Mounting method
Wall-/ceiling mounting
Wall-/ceiling mounting
Mounting in the soil
No
No
Mounting under water
No
No
For tube diameter
20/25 mm
20/25 mm
Number of inlets
8
8
Length
152,00 mm
152,00 mm
Width
206,00 mm
206,00 mm
Depth
71,00 mm
71,00 mm
Diameter
0,00 mm
0,00 mm
Connectable
No
No
Material
Plastic
Plastic
Surface protection
Untreated
Untreated
Colour
White
White
Transparent cover
No
No
Castable
No
No
Cover attachment
Screwed
Screwed
Casting compound included
No
No
Sealable
No
No
Rated insulation voltage Ui
450 V
450 V
Circuit integrity
None
None
With screening
No
No
Working temperature
0 - 60 °C
0 - 60 °C
Explosion-tested version
No
No
For Ex-zone gas
None
None
For Ex-zone dust
None
None
Minimum order quantity: 25 NR
Barcode
8007352117075
1 NR
24.8x14.6x7.5 [cm]
242.6 [g]
8007352117082
25 NR
59x38.5x30 [cm]
6,840 [g]
