Surface-box 3M 43,5mm depth white - 09975.01

Pdf
09975.01

Enclosures and mounting boxes / Surface mounting boxes / Others

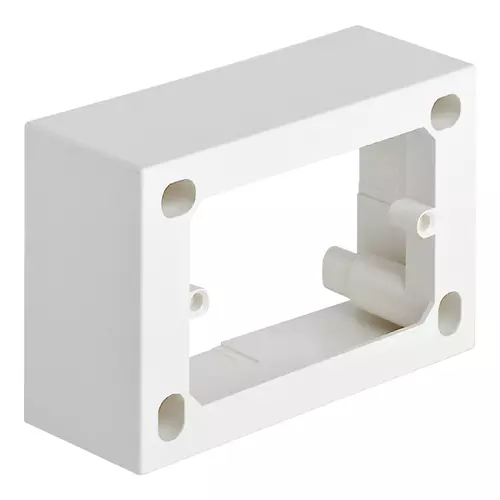

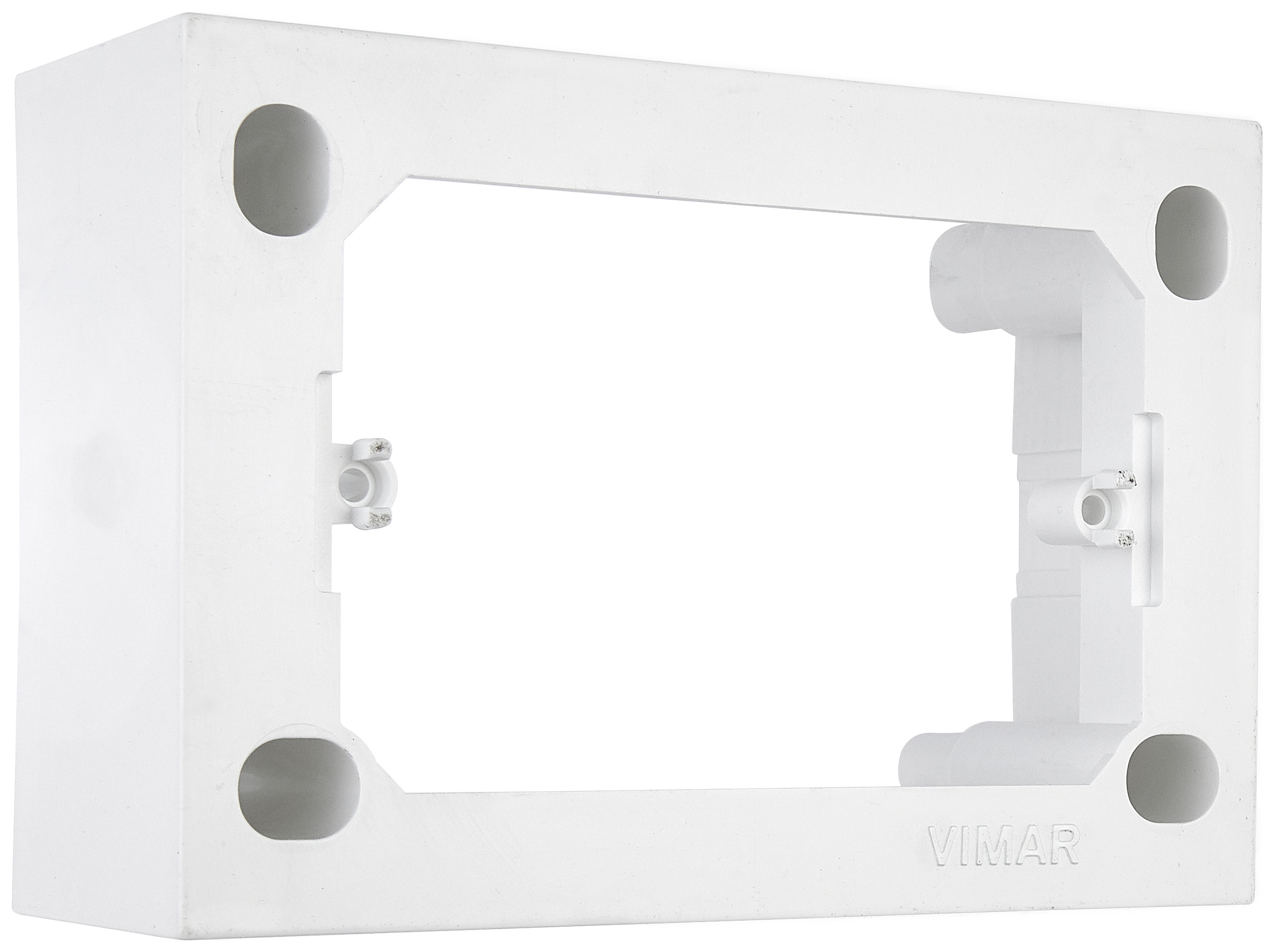

Surface-box 3M 43,5mm depth white
3-module surface mounting box, 43,5 mm depth, for Eikon, Idea and Plana with relevants mounting frame and cover plates, white. To be installed on insulating non-perforated or metallic with earth connection surfaces. Idea: suitable only for Classica cover plates

Product Status
3 - Active

Class group
Connection devices
Class
Box/housing for surface mounting on the wall/ceiling
Max. conductor cross section
0
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
For tube diameter
20/25 mm
Inlet from the rear
Yes
Length
84,00 mm
Width
121,50 mm
Depth
45,00 mm
Diameter
0 mm
Tackable
No
Number of inlets
4
Type of housing feed-through
None
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
White
Degree of protection (IP)
IP20
Cover model
Other
Transparent cover
No
Cover attachment
Screwed
Castable
No
Casting compound included
No
Sealable
No
Rated insulation voltage Ui
450 v
Circuit integrity
None
With screening
No
Weatherproof
No
Working temperature
0 - 60 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352130258
1 NR
12.2x8.4x4.5 [cm]
60.74 [g]
Barcode Qty 20 NR
8007352130265
20 NR
28.4x24.4x17.9 [cm]
1,428.6 [g]
Barcode Qty 80 NR
8007352470644
80 NR
59.5x38.5x26.5 [cm]
6,434.4 [g]
