Zigbee2-way switch kit ArkéClassic white - 0K19592.01

Pdf
0K19592.01

Arké white / Devices / Radiofrequency

Zigbee2-way switch kit ArkéClassic white

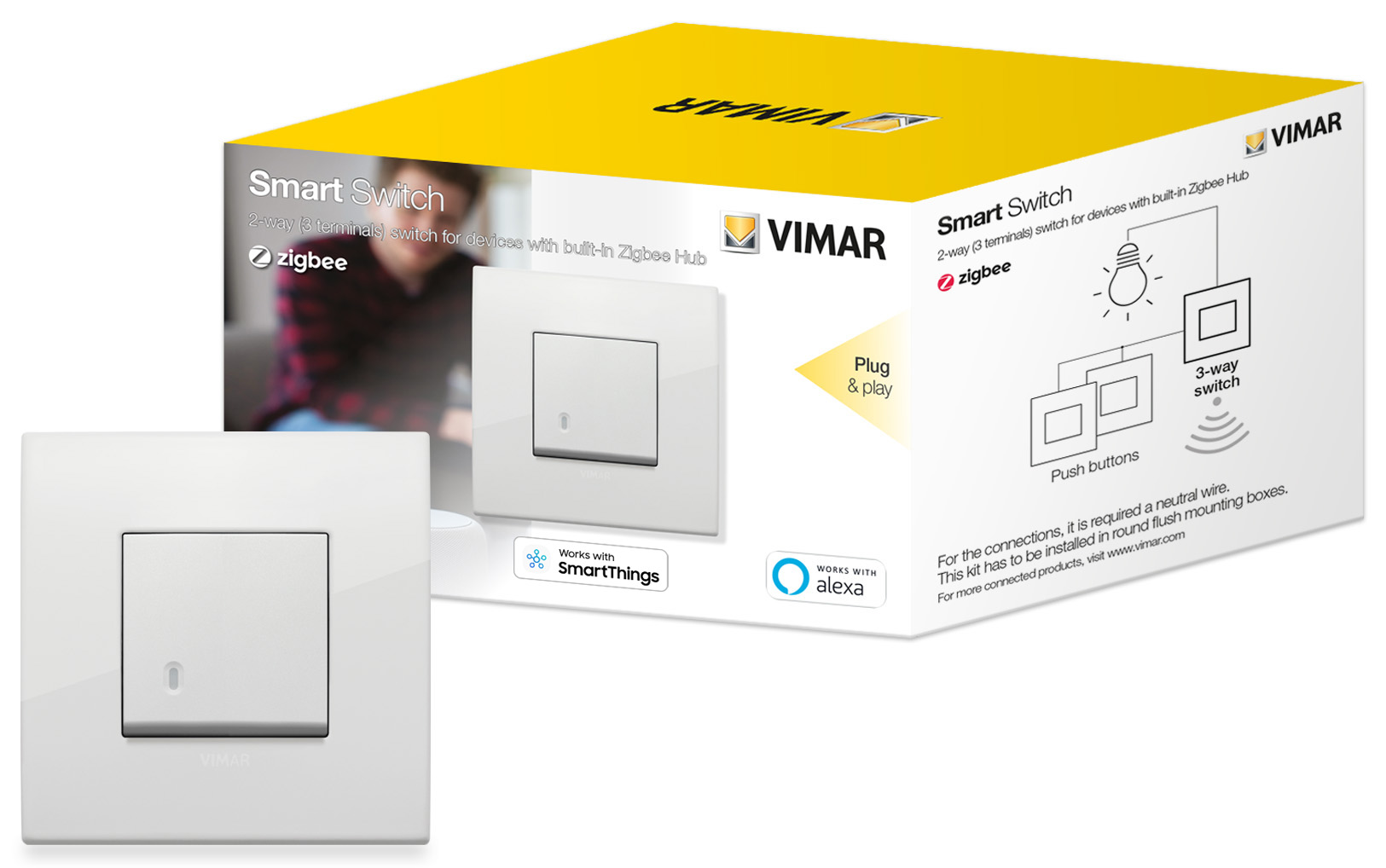

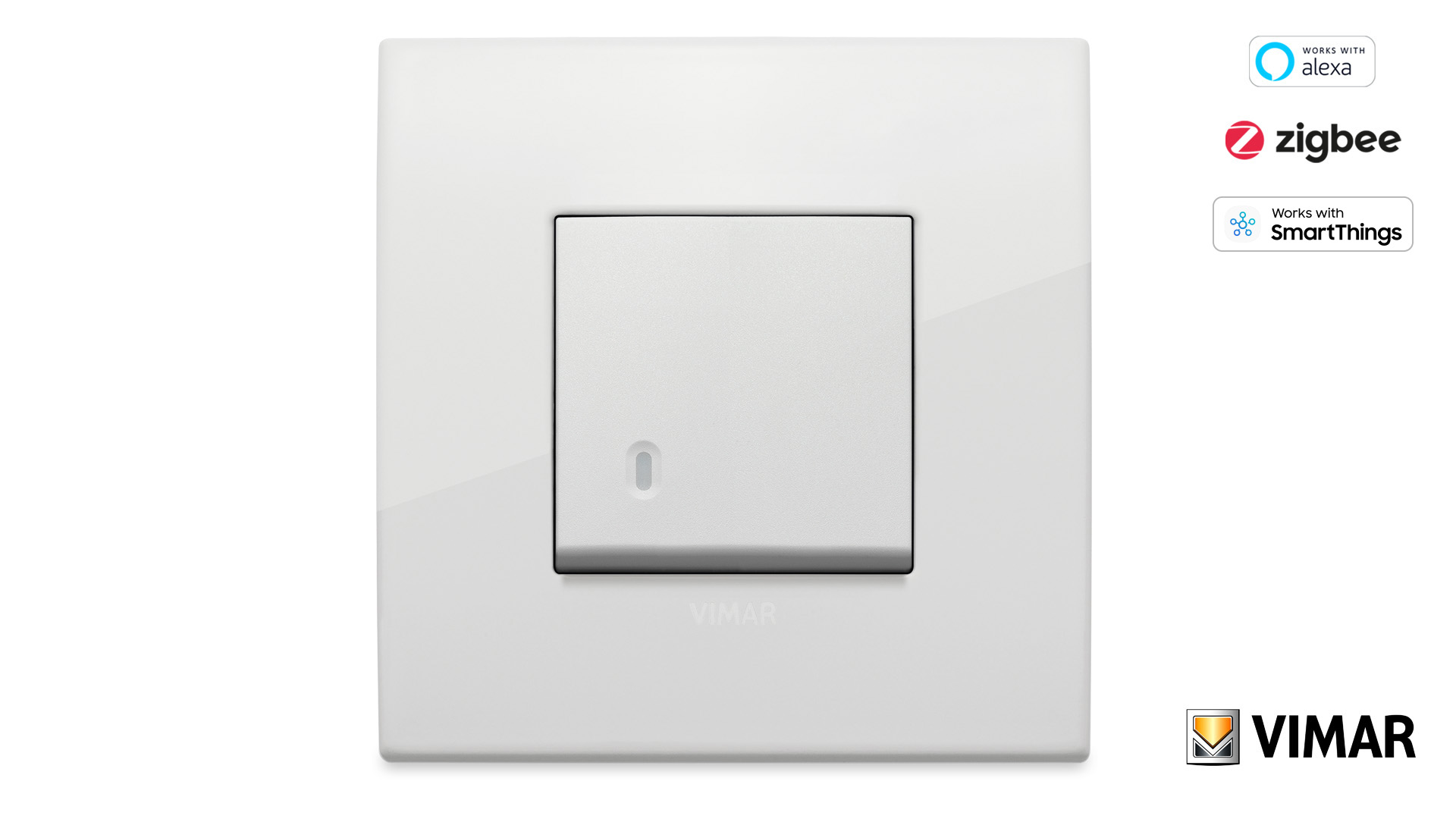

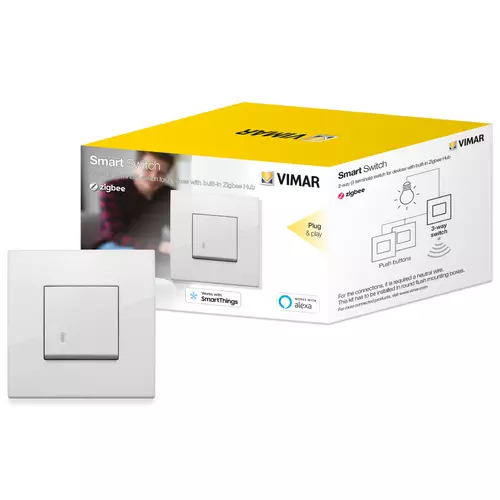

View Wireless connected 2-way switch kit with: 1 19592.0 2-way switch mechanism, 1 19022.B interchangeable 2-module button white, 1 19607 2-module British standard mounting frame, 1 19603 2-module mounting frame without screws, 1 19642.74 2-module Arké Classic cover plate white

  • The smart switch allows to control lamps, or other kind of loads, either using a voice command or an app for smartphone/tablet or pressing the push button
  • The smart switch can be controlled through a wireless connection by a Zigbee 3.0 smart home hub, such as Amazon Echo Plus, Echo Show or Echo Studio
  • Amazon Alexa voice assistant is able to discover easily the smart switch and add it to the list of its own devices
  • The smart switch can be installed in existing electrical systems with wired multi-way and two-way switches
  • The smart switch works in the range of 100-240V 50/60Hz and the relay output is suitable for incandescent lamps up to 500W, LED lamps up to 100W, electronic transformers up to 250VA, fluorescent lamps up to 120W
  • The timed switch-off and the power-on duration can be configured using the on-board push button
  • The smart switch has a wired input that allows other traditional push buttons to control the smart switch
  • The smart switch performs the automatic opening of the relay for thermal protection

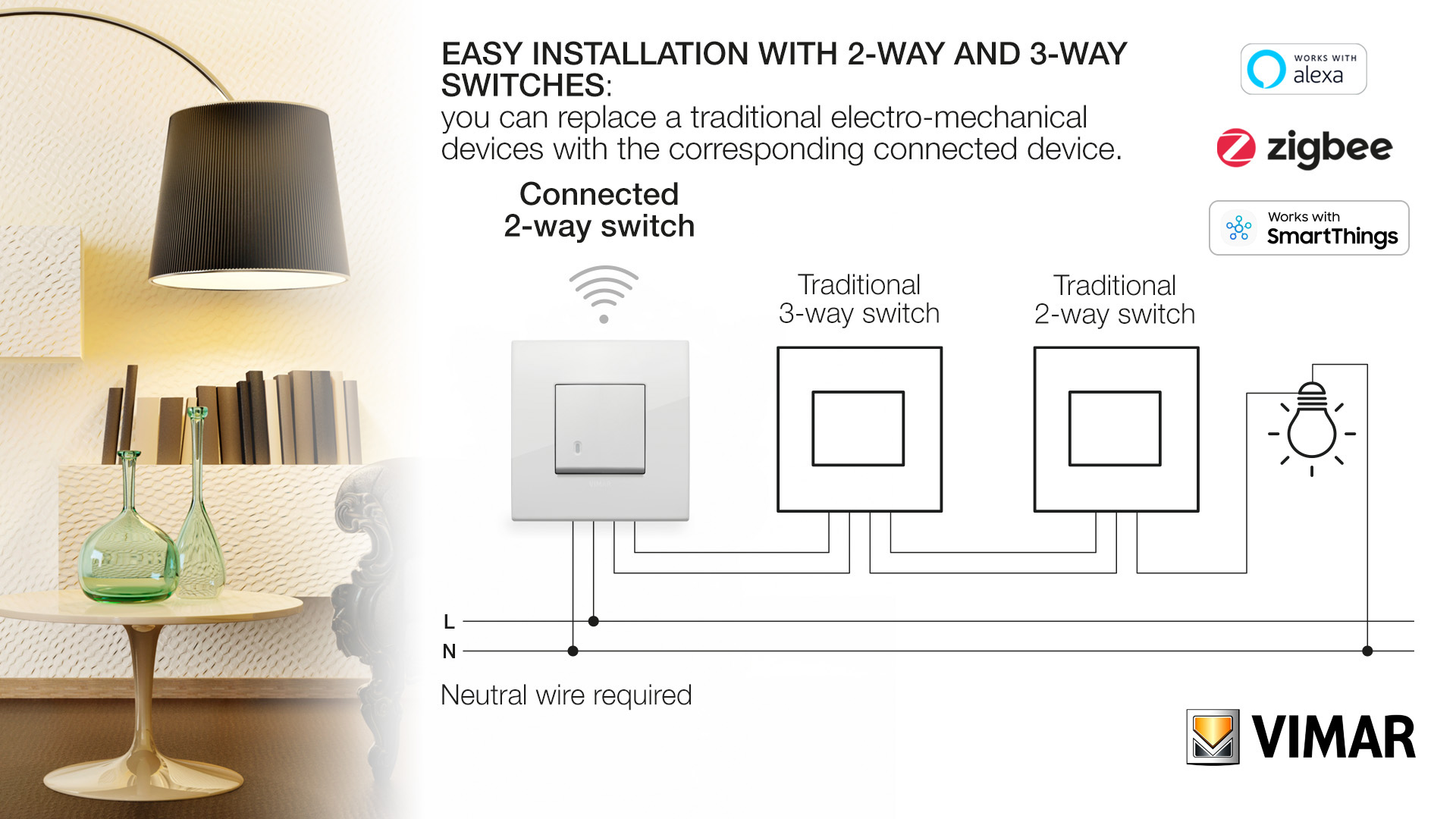

  • The smart switch must be powered with the same phase (L) and neutral (N) that power the load. In installation with wired multi-way and two-way switches, the smart switch should be always powered, therefore it should be installed instead of the wired two-way switch furthest from the load

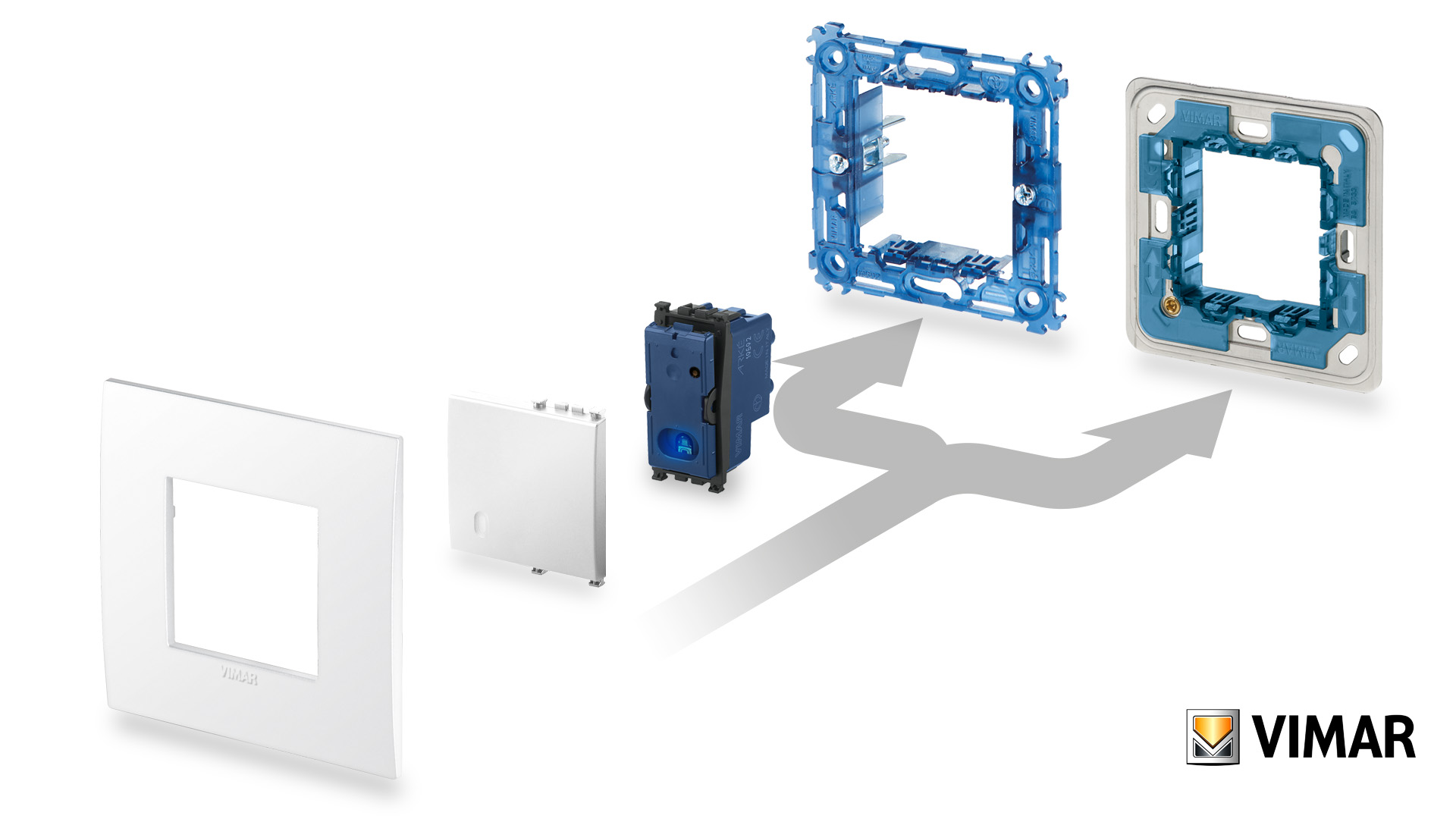

  • The smart switch is provided with two frames for French/German and British international standards
  • For flush-mounting installation, it needs at least 5 cm deep backplate

Product Status
3 - Active

Kit components

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
Optional
Function lighting
Illuminated (on)
Type of lighting
LED not exchangeable
Connection type
Screwed terminal
Washing machine switch
No

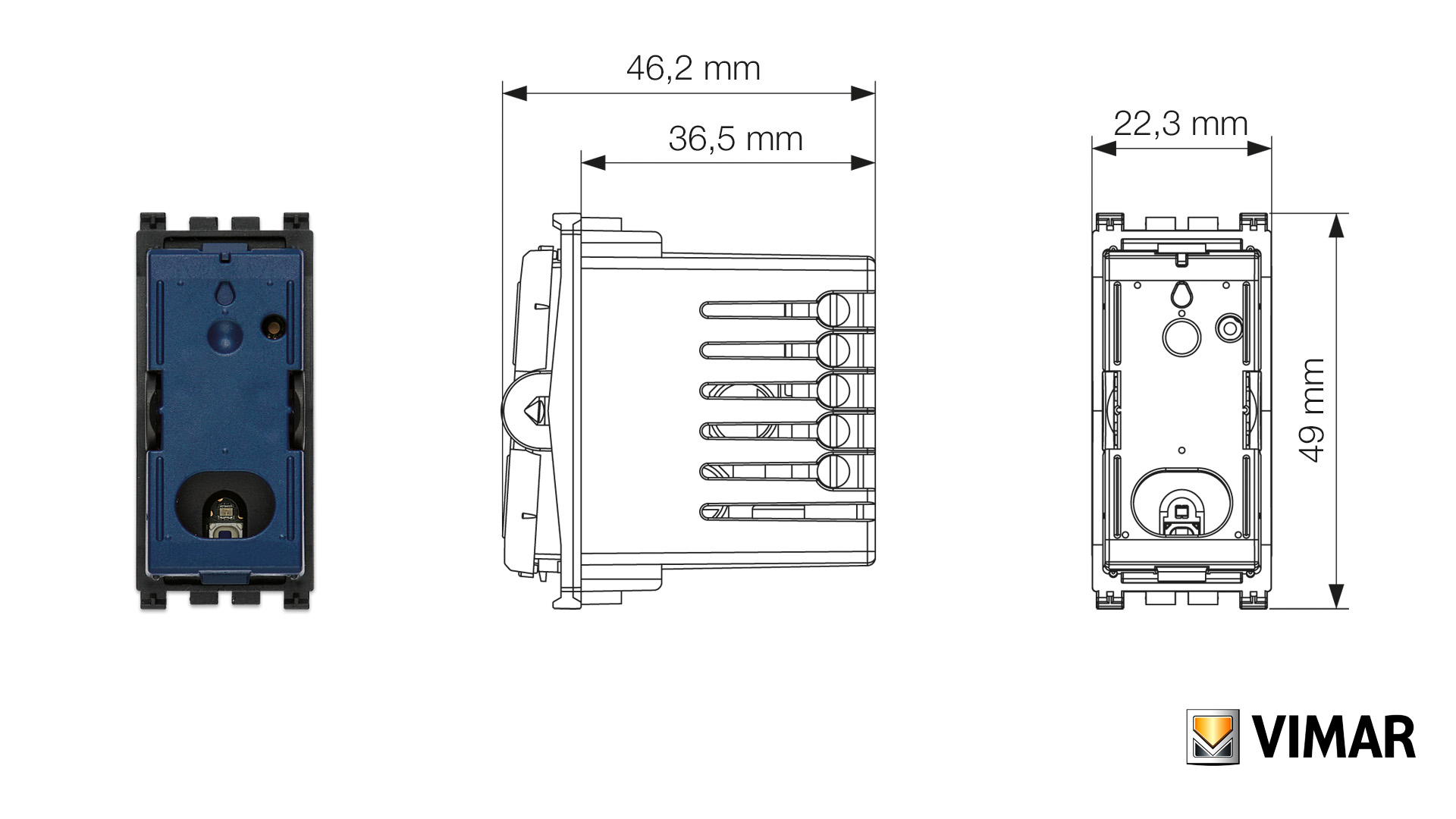

Width of device
22,20 mm
Height of device
49,00 mm
Depth of device
48,60 mm
Built-in depth
36,50 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352646681
1 NR
14.2x9.8x9.1 [cm]
176.8 [g]
