1P 10AX 2-way switch +diffuser 2M white - 14004.7

14004.7

Plana / Devices / Basic devices

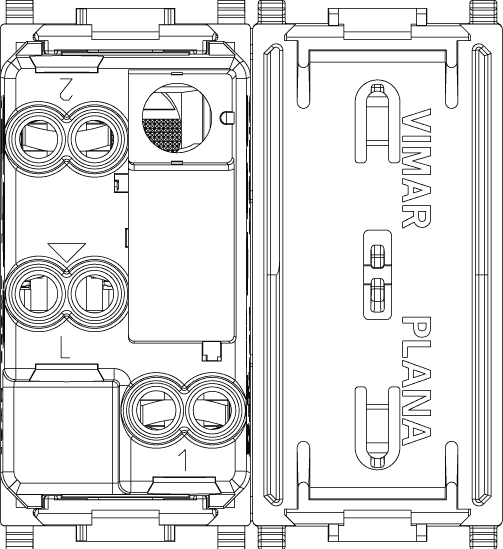

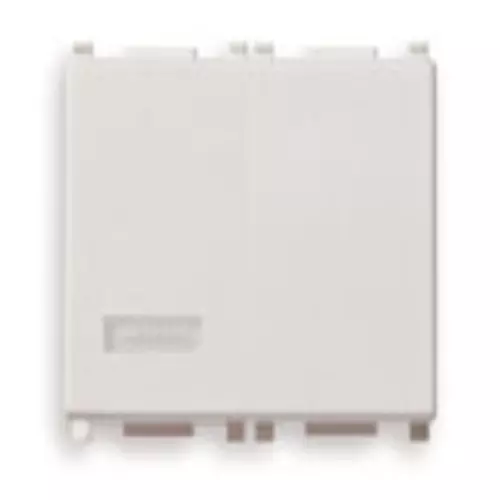

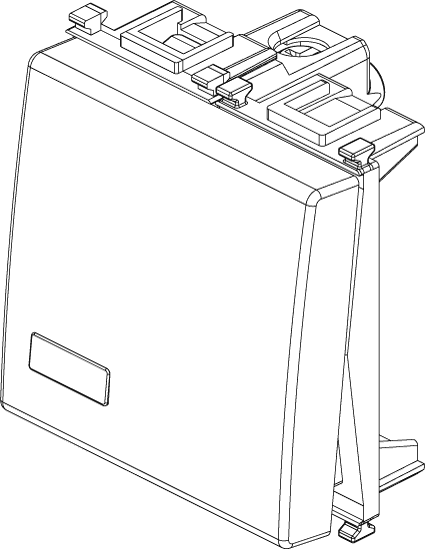

1P 10AX 2-way switch +diffuser 2M white
1P 10 AX 250 V~ 2-way switch, with lightable diffuser, replaceable button, white - 2 modules

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Label space/information surfac
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
Not included
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Built-in depth
24,00 mm
Minimum order quantity: 20 NR

Barcode

8007352119918
1 NR
5.1x4.3x5.3 [cm]
39.4 [g]
8007352119925
20 NR
26.9x11.6x9 [cm]
871.73 [g]
