Vimar - 14005.SL - 1P 16AX 2-way switch Silver

14005.SL

Plana Silver / Devices / Basic devices

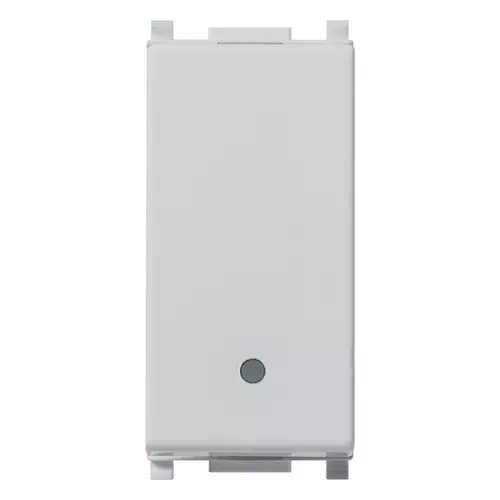

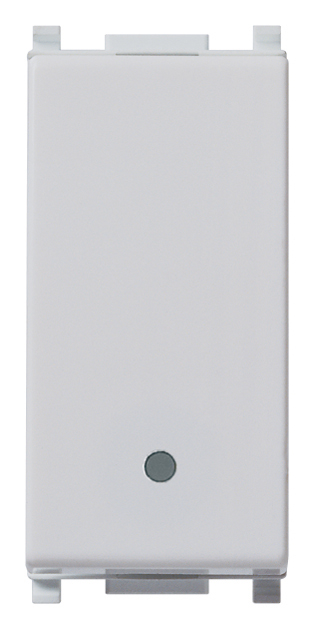

1P 16AX 2-way switch Silver
1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, Silver. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

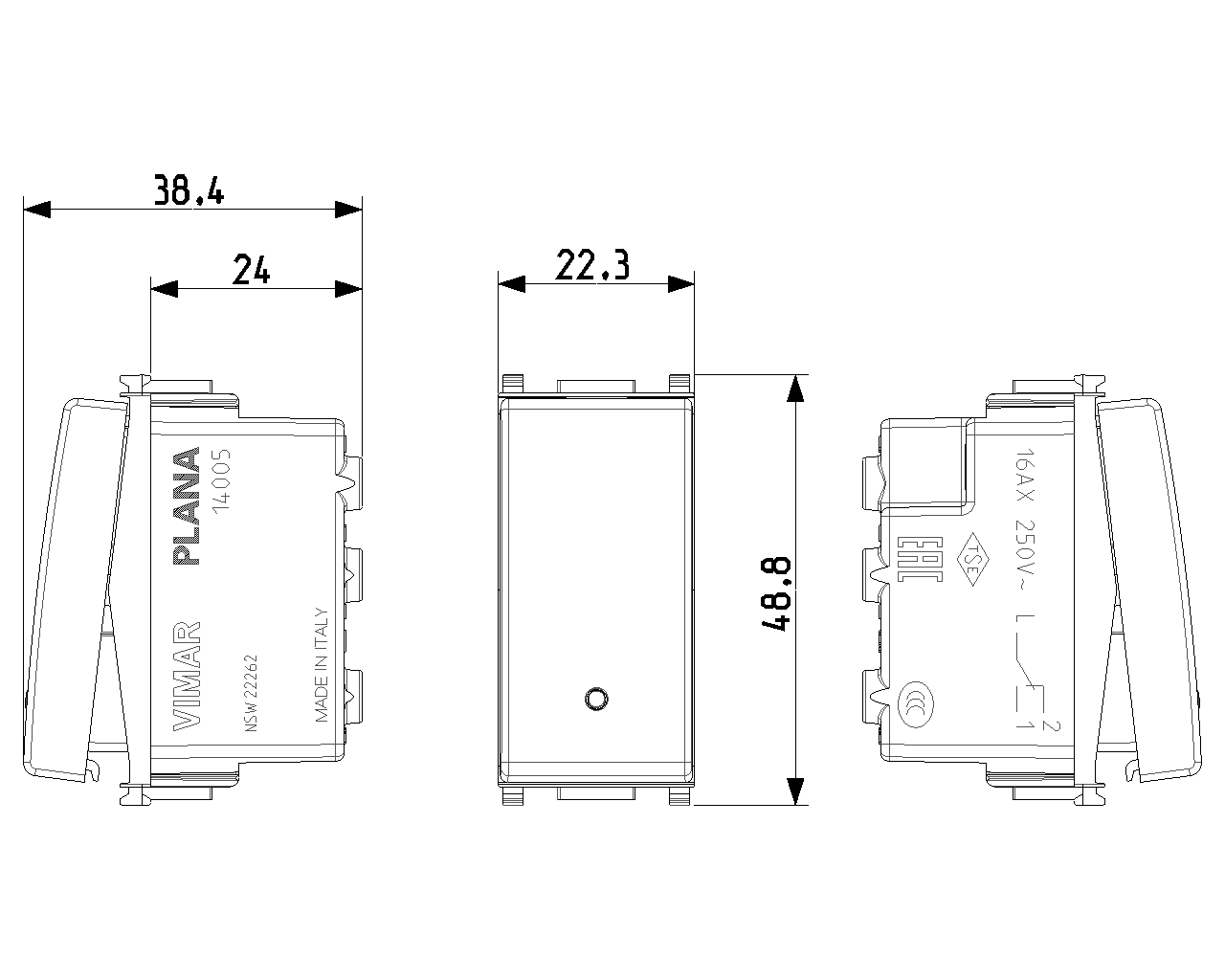

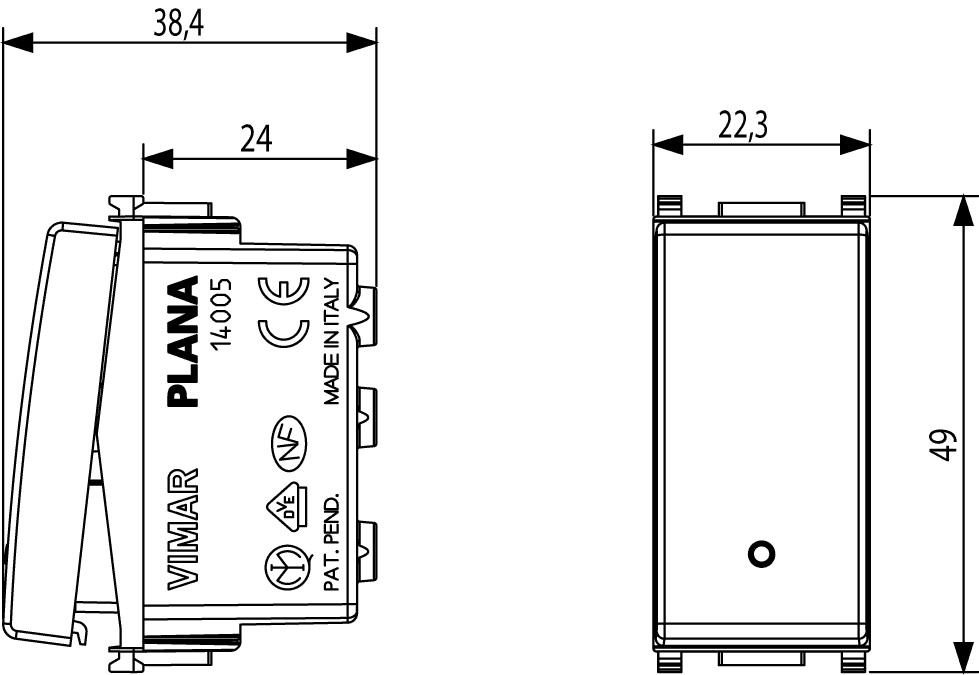

view encumbered art. 14005.SL

PNG DXF

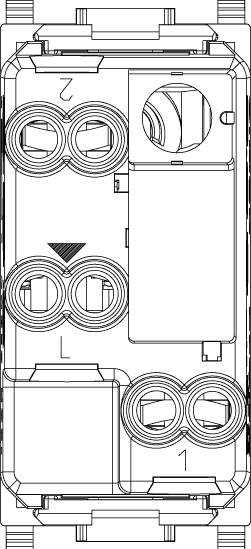

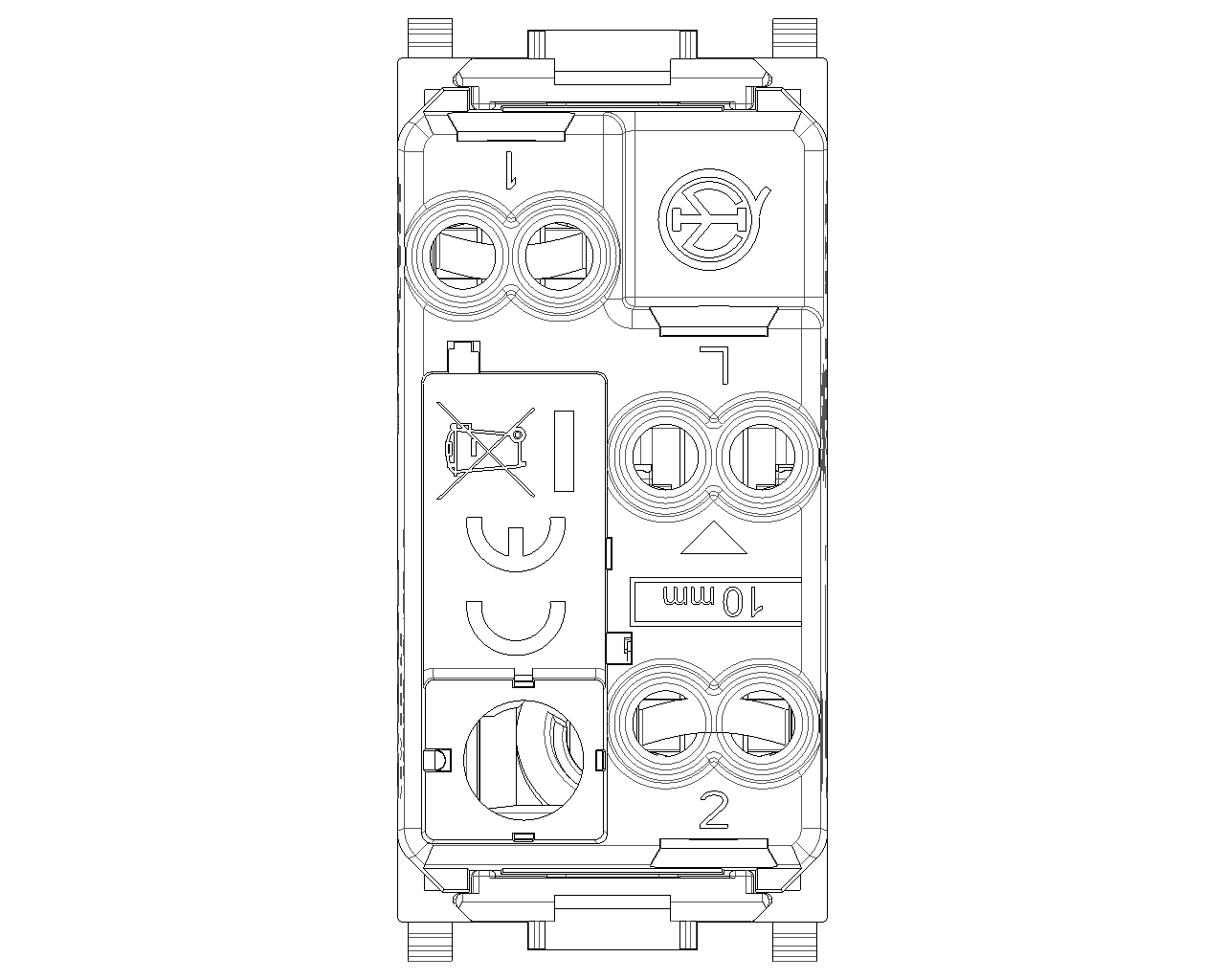

rear view art. 14005.SL

PNG DXF

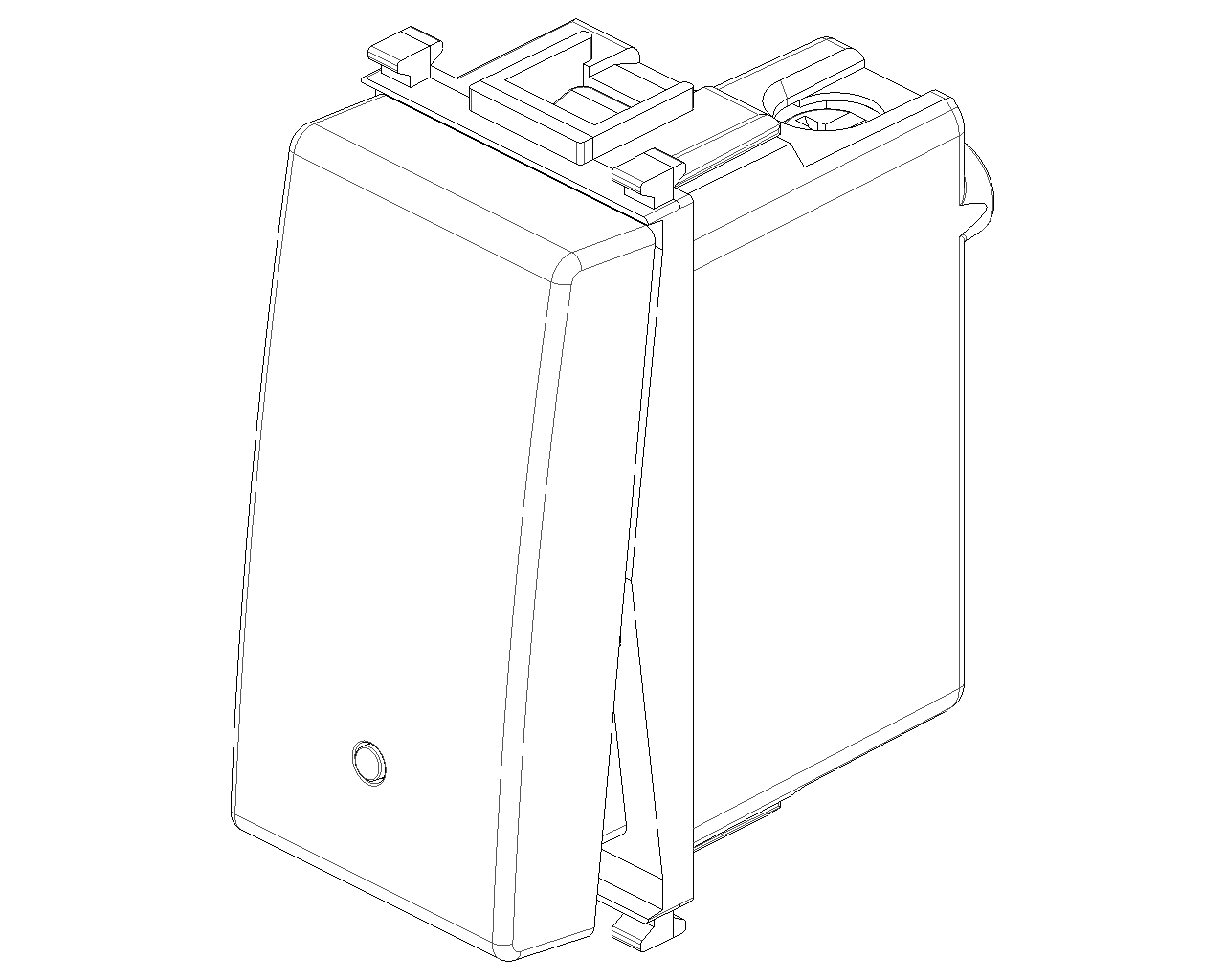

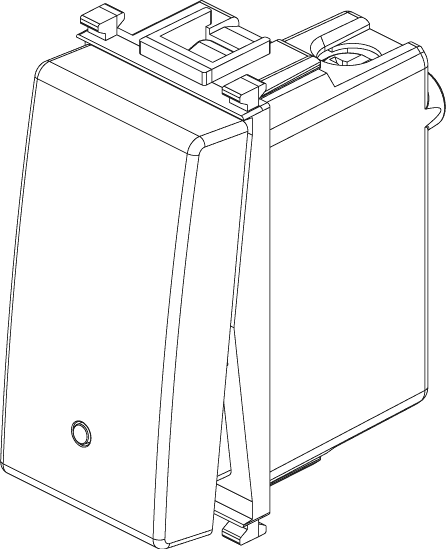

3D view art. 14005.SL

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush mounted (plaster)

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Glossy

Colour
Silver

RAL-number (similar)
9006

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 v

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Width of device
22,30 mm

Height of device
49,00 mm

Depth of device
38,40 mm

Built-in depth
24,00 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

34. PSE - Japan

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352320031

1 NR

4.1x2.8x5.3 [cm]

30.2 [g]

8007352320048

50 NR

21.6x11.6x14.3 [cm]

1,604 [g]

8007352640801

500 NR

57.5x22.5x30 [cm]

17,080 [g]
