1P NO 10A pushbutton bell symb.2M Silver - 14008.2.C.SL

Pdf
14008.2.C.SL

Plana Silver / Devices / Basic devices

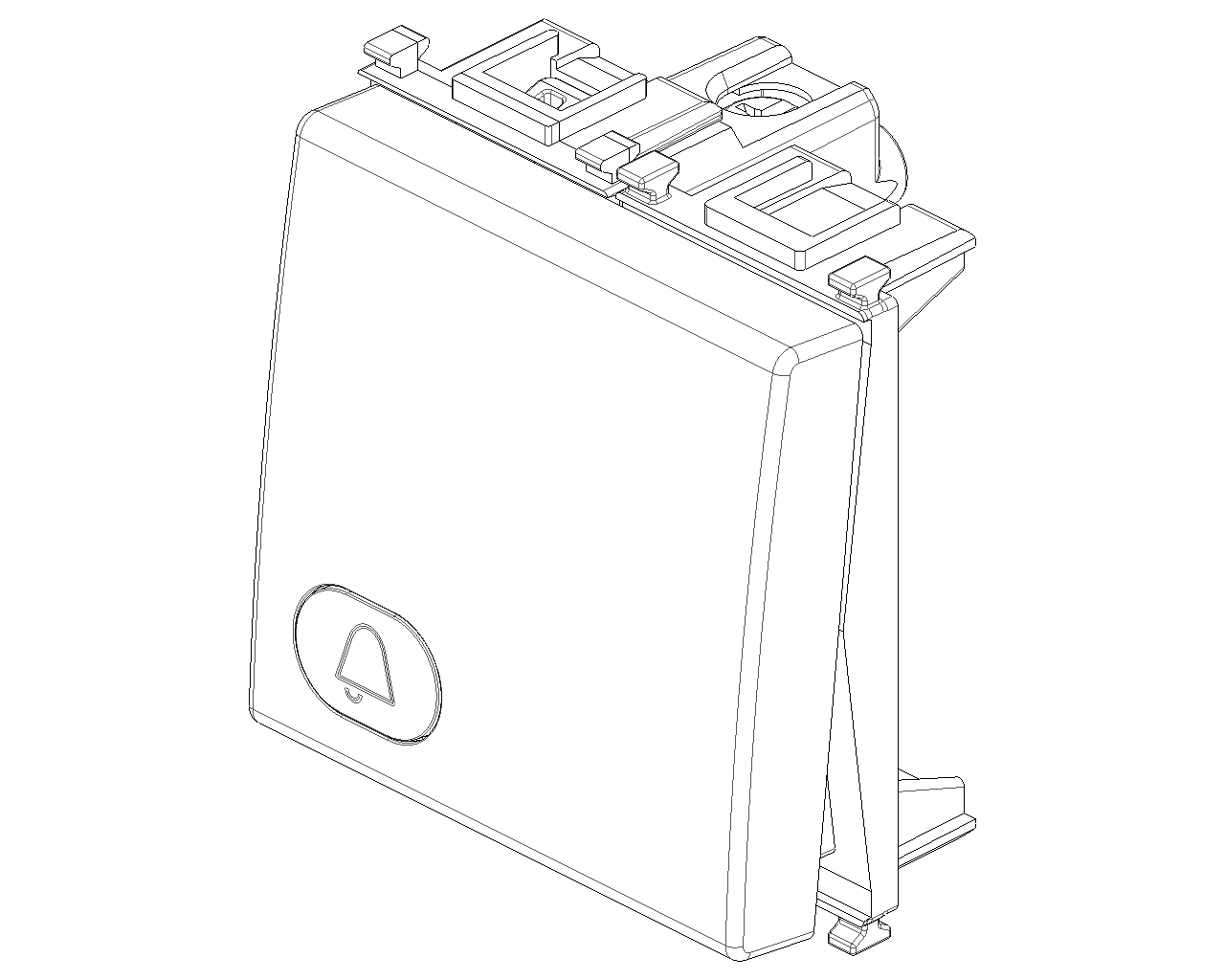

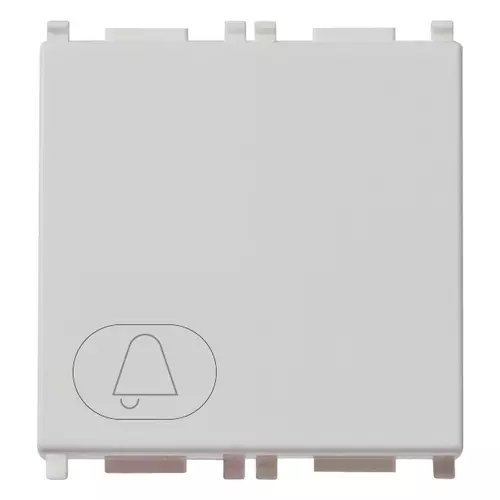

1P NO 10A pushbutton bell symb.2M Silver
1P NO 10 A 250 V~ push button, bell symbol, lightable, replaceable button, Silver - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Contacts
1 make contact (NO)
Number of poles
1
Feedback-signal contact
No
Number of rockers
1
Number of modules (module system)
2
With lighting
Yes
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (akin)
9006
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A

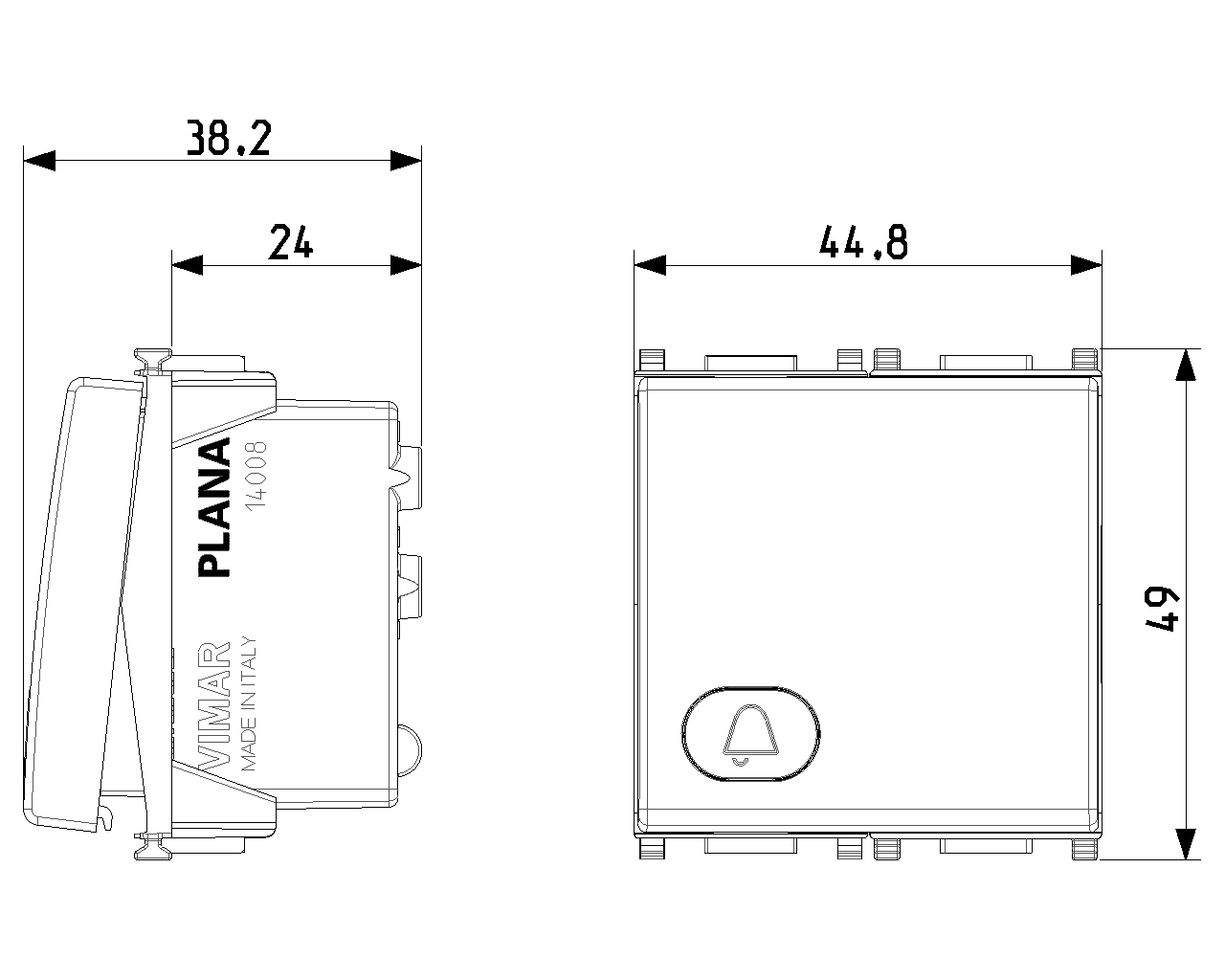

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352320055
1 NR
5.1x4.3x5.3 [cm]
35.93 [g]
Barcode Qty 20 NR
8007352320062
20 NR
26.9x11.6x9 [cm]
798.27 [g]
