Button 1M +diffuser white - 14026

14026

Plana / Devices / Basic devices

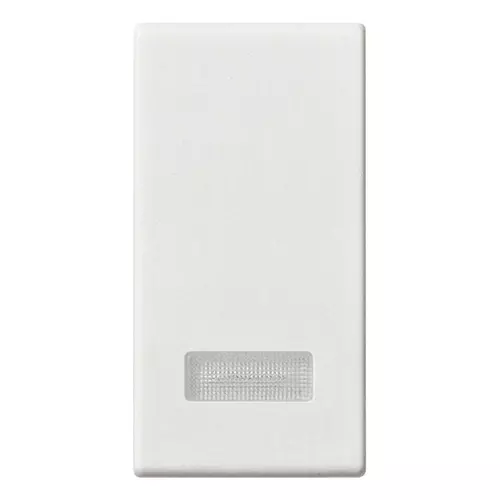

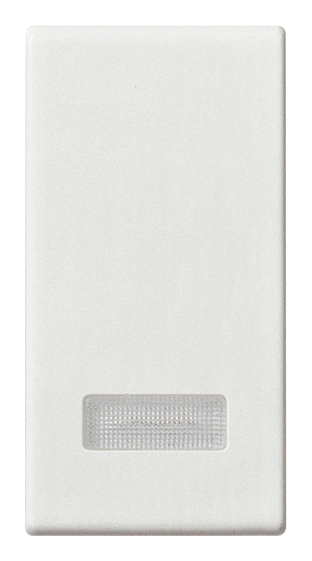

Button 1M +diffuser white
Interchangeable 1-module button, with lightable diffuser, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Ask a question

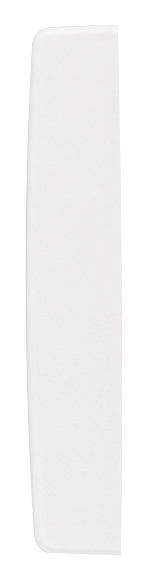

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Control element/cover plate for domestic switching devices

Model
Single rocker

Imprint/indication
None

Utilization
Switch/push button

Suitable for touch sensor connector for bus system
No

Type of fastening
Clamp mounting

Monitoring window/light outlet
Yes

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

With label area
No

With exchangeable lens/symbol
No

Suitable for degree of protection (IP)
IP40

Depth
790 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 50 NR

---

Barcode

8007352112704

1 NR

2.22x4.37x0.8 [cm]

3.7 [g]

8007352112711

5 NR

4.1x2.8x5.3 [cm]

18.5 [g]

8007352112728

50 NR

14.4x9x6 [cm]

223.87 [g]

8007352626348

800 NR

37.5x30x13.5 [cm]

4,248 [g]
