Button 1M +diffuser DND symb.white - 14026.DND

14026.DND

Plana / Devices / Basic devices

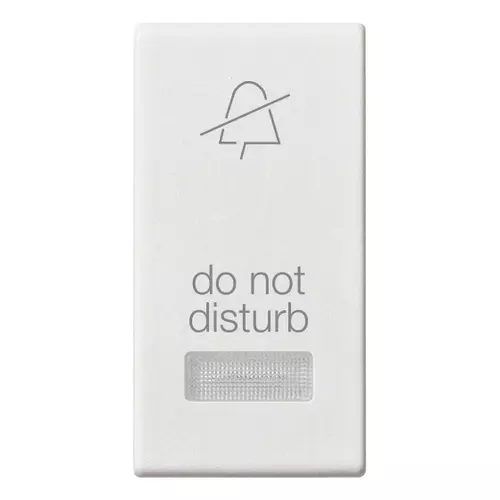

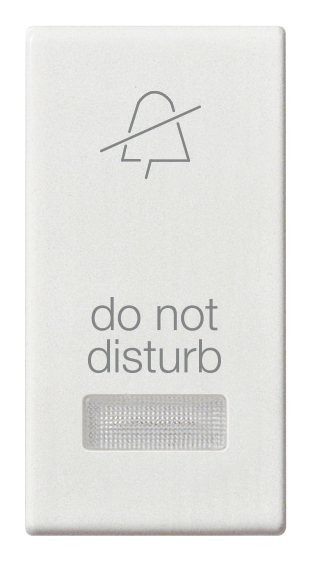

Button 1M +diffuser DND symb.white
Interchangeable 1-module button, Do Not Disturb customization with lightable diffuser, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Ask a question

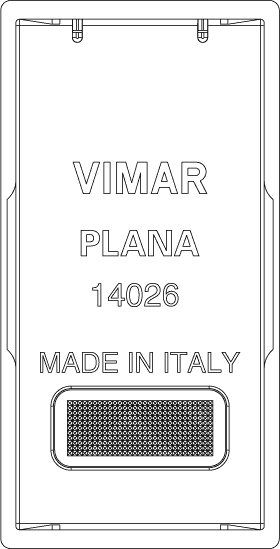

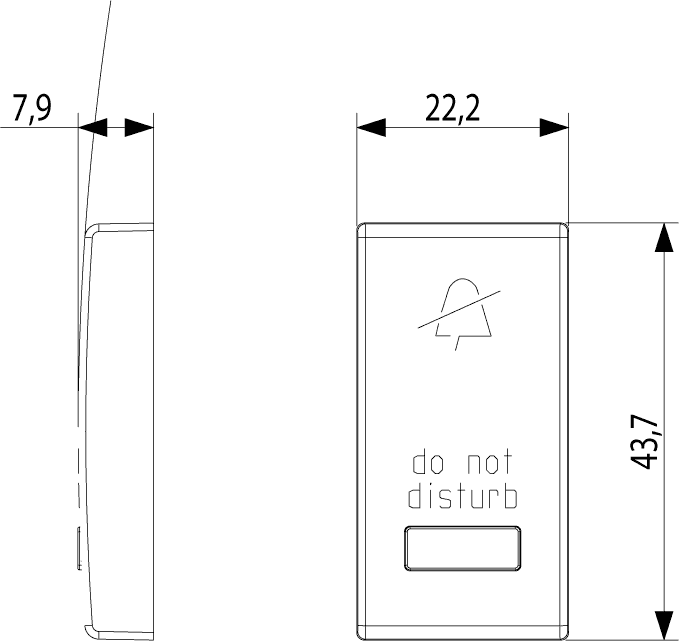

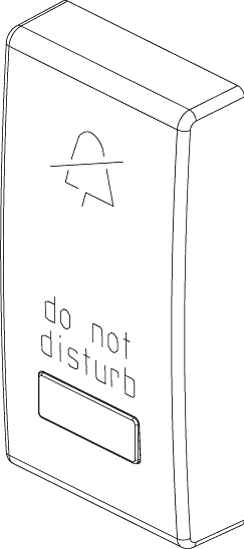

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Control element/cover plate for domestic switching devices

Model
Single rocker

Imprint/indication
Various symbols

Utilization
Switch/push button

Suitable for touch sensor connector for bus system
No

Type of fastening
Clamp mounting

Monitoring window/light outlet
Yes

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

With label area
No

With exchangeable lens/symbol
No

Suitable for degree of protection (IP)
IP40

Depth
790 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 5 NR

---

Barcode

8007352540347

1 NR

2.22x4.37x0.8 [cm]

3.82 [g]

8007352540354

5 NR

4.1x2.8x5.3 [cm]

19.1 [g]

8007352540361

25 NR

14.2x6.7x5.9 [cm]

126.3 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
