1P NO+NC 10A push button OFF symb. white - 14056.33

14056.33

Plana / Devices / Devices - other functions

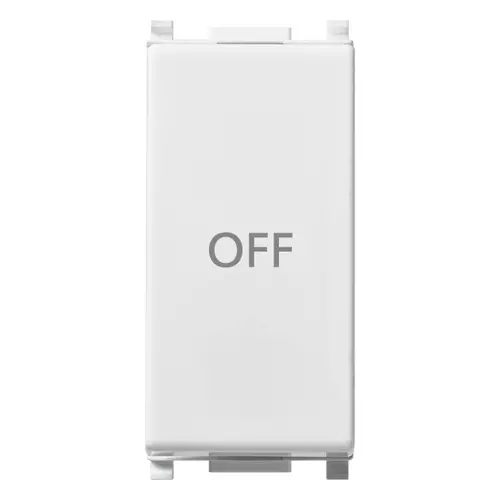

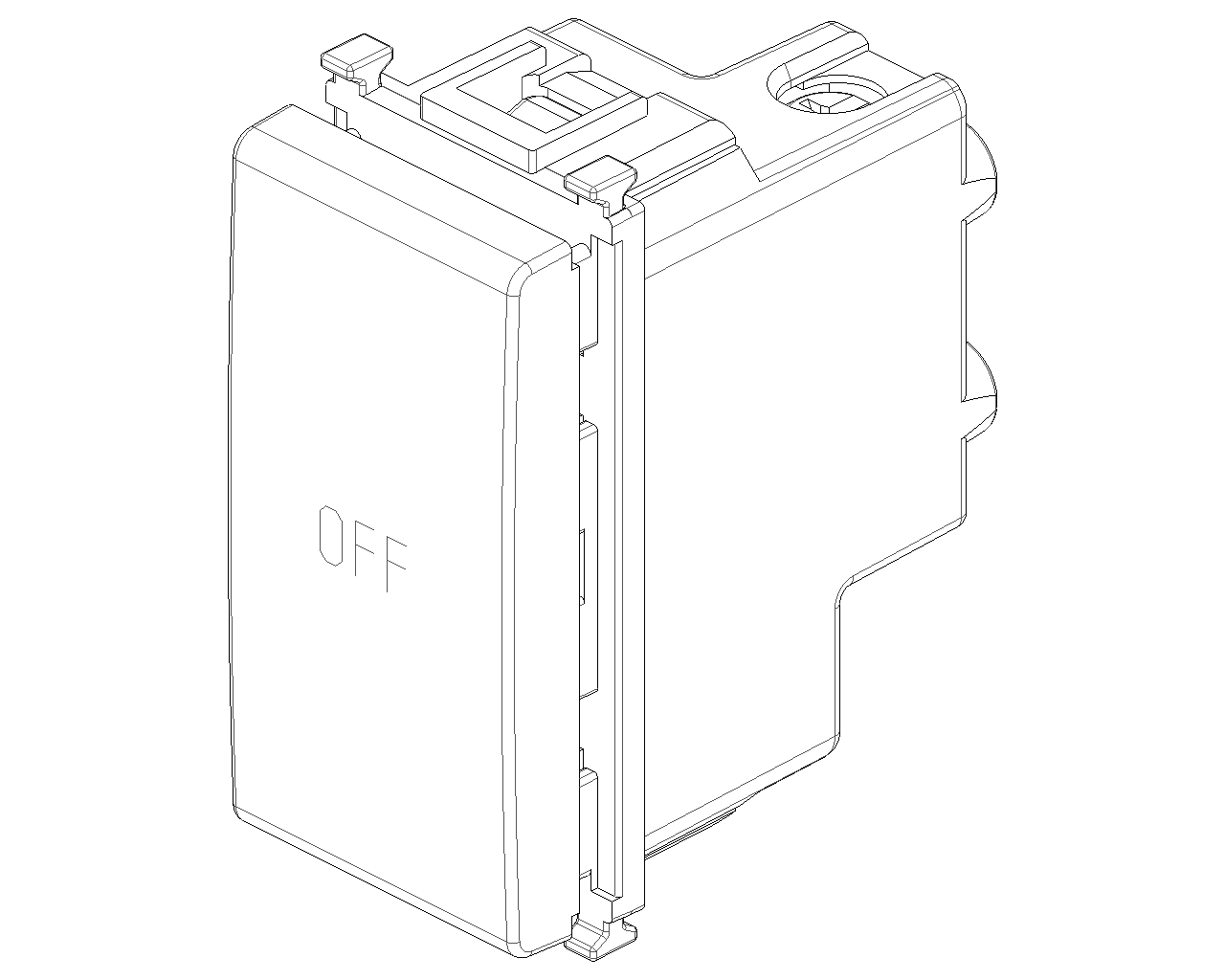

1P NO+NC 10A push button OFF symb. white
1P 10 A 250 V~ push button, 1 NO contact + 1 NC contact, OFF symbol, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button

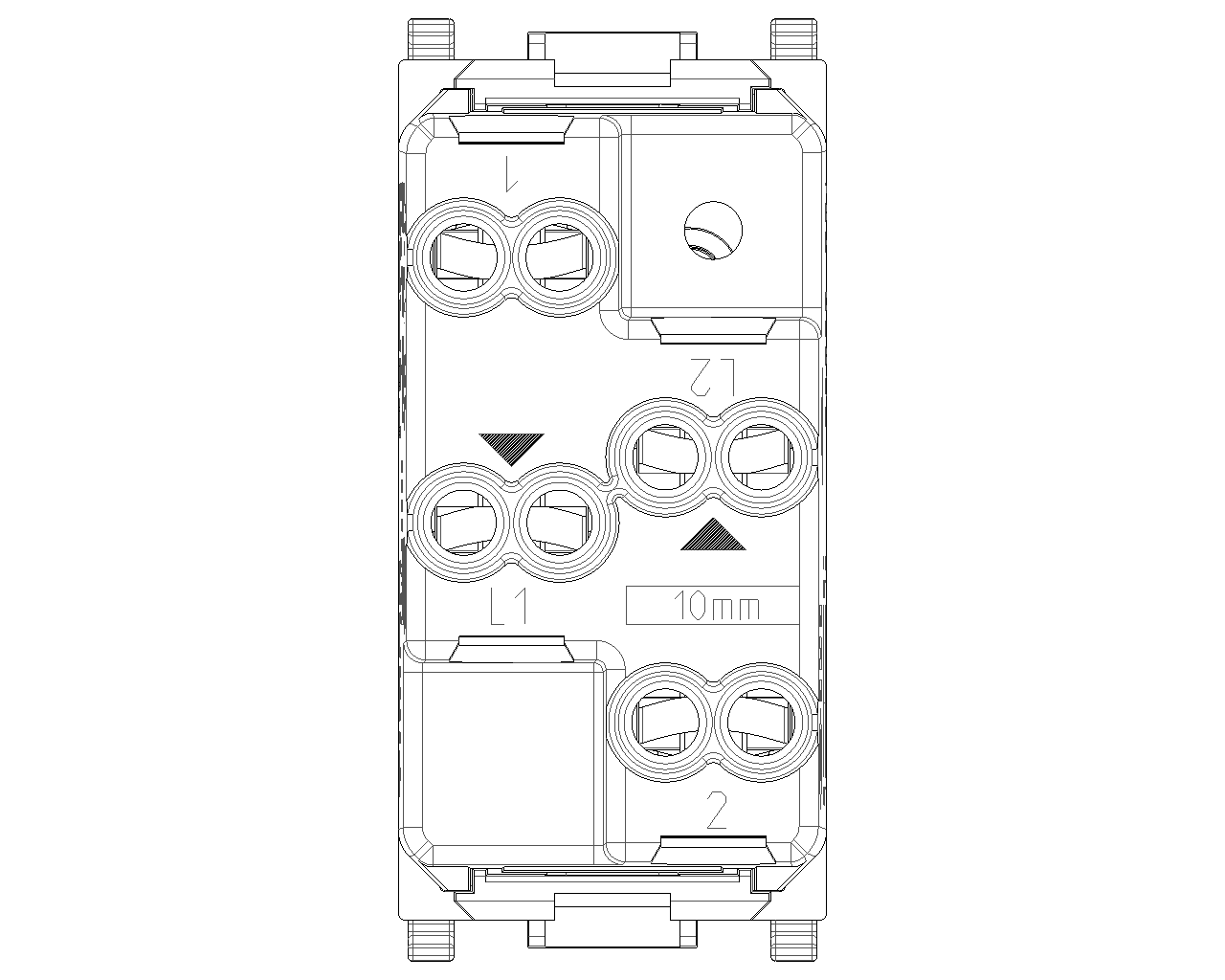

Contacts
1 make contact (NO), 1 breaker contact (NC)
Number of poles
1
Feedback-signal contact
No
Number of rockers
1
Number of modules (module syst
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Label space/information surfac
Yes
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10,00 A

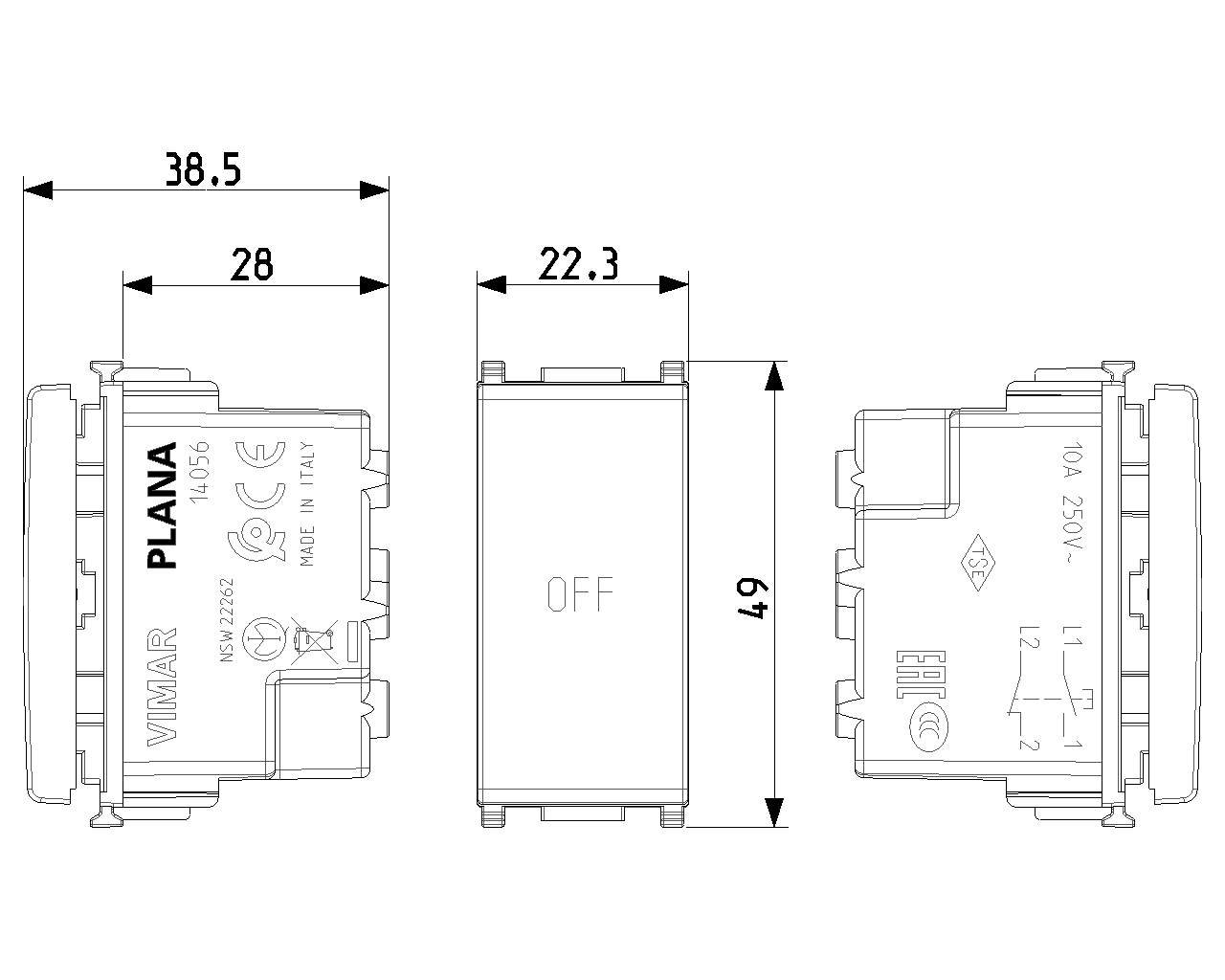

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,50 mm
Minimum order quantity: 20 NR

Barcode

8007352117358
1 NR
4.1x2.8x5.3 [cm]
32.5 [g]
8007352117365
20 NR
21.4x11.6x6 [cm]
707.13 [g]
8007352637375
200 NR
30.5x25.5x22.5 [cm]
7,372 [g]
