Two independent 1PNO+NC10A pushes Silver - 14058.SL

Pdf
Vimar - 14058.SL - Two independent 1PNO+NC10A pushes Silver
Vimar - 14058.SL - Two independent 1PNO+NC10A pushes Silver

14058.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

Two independent 1PNO+NC10A pushes Silver

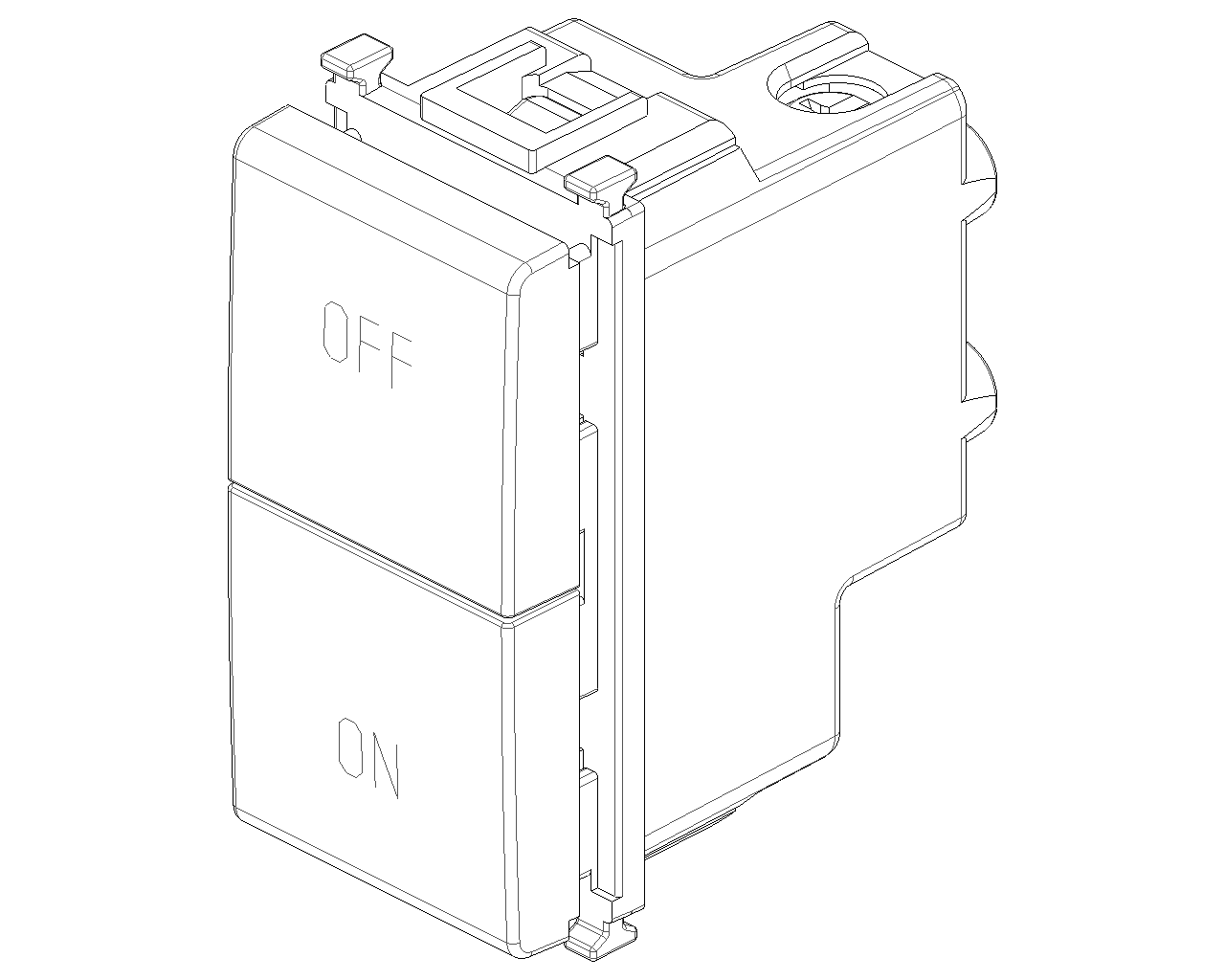

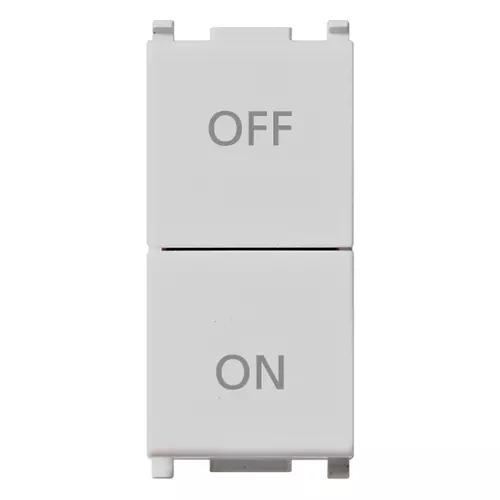

Two independent push buttons, 1P NO + 1P NC 10 A 250 V~, ON and OFF symbols, Silver

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Monitoring contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

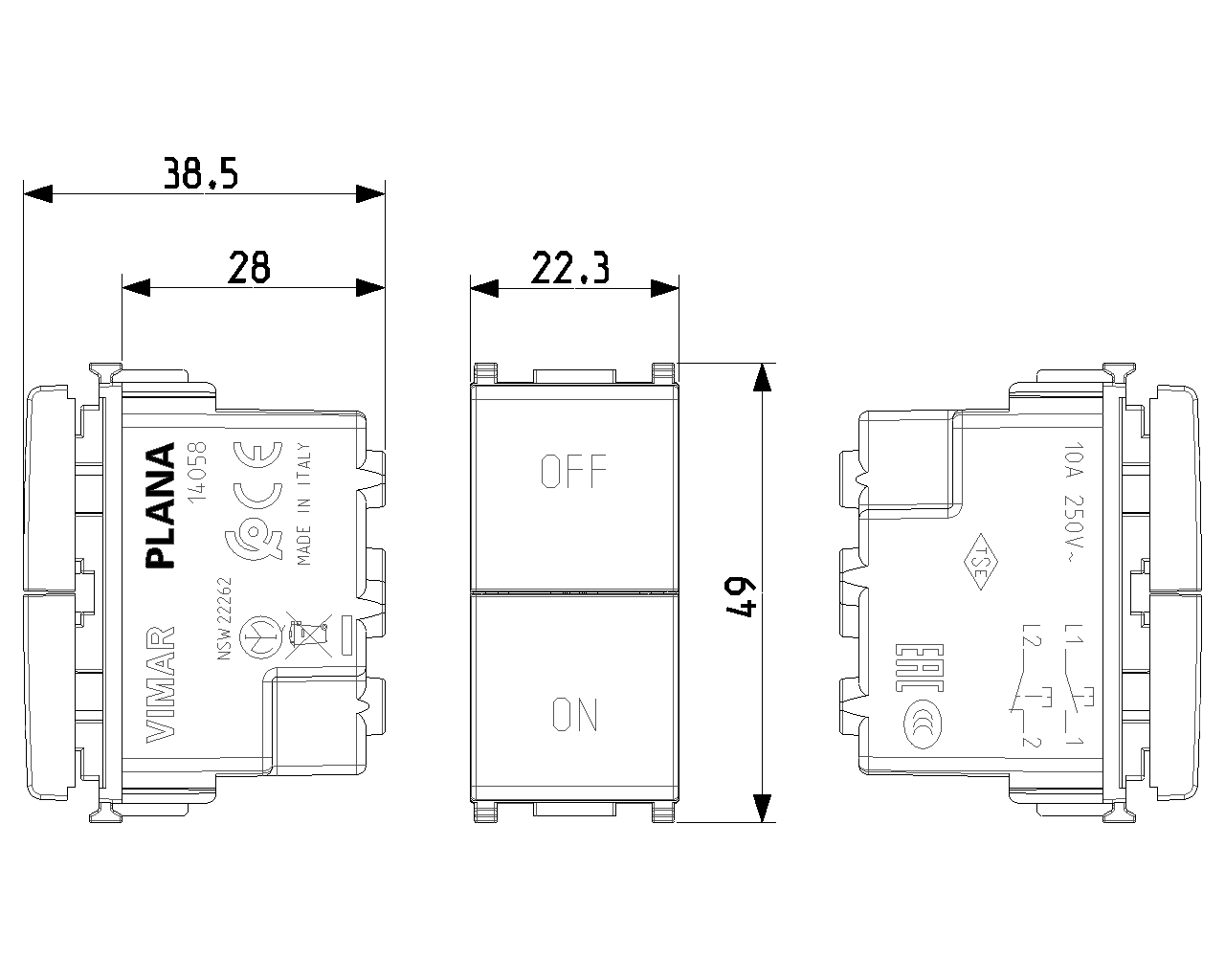

Device width
22,30 mm
Device height
49,00 mm
Device depth
38,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352320925
1 NR
4.1x2.8x5.3 [cm]
32.8 [g]
Barcode Qty 20 NR
8007352320932
20 NR
21.4x11.6x6 [cm]
716.67 [g]
