Vimar - 14062.SL - Two interlocked 1P NO+NO 10A pushes S

14062.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

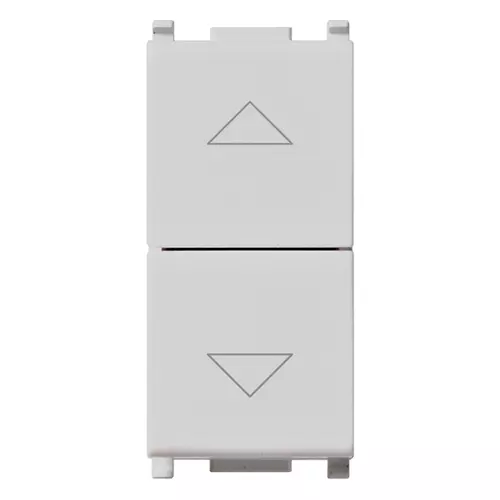

Two interlocked 1P NO+NO 10A pushes S
Two interlocked push buttons, 1P NO + 1P NO 10 A 250 V~, with directional arrows, Silver

Product Status
3 - Active

Drawings

view encumbered art. 14062.SL

PNG DXF

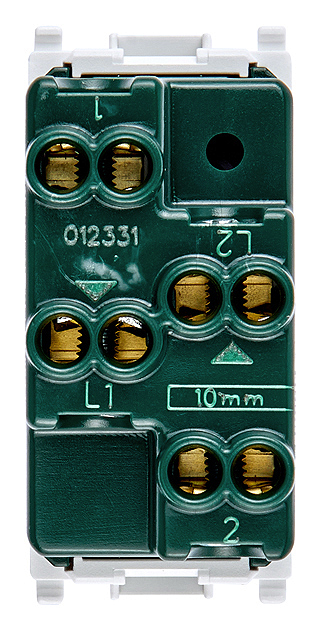

rear view art. 14062.SL

PNG DXF

3D view art. 14062.SL

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Monitoring contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Glossy

Colour
Silver

RAL-number (similar)
9006

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
37,00 mm

00. CE Marking - EU

01. IMQ - Italy

01. IMQ - Italy

07. INGCER - Chile

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352320949

1 NR

4.1x2.8x5.3 [cm]

32.8 [g]

8007352320956

20 NR

21.4x11.6x6 [cm]

715.07 [g]

8007352637177

200 NR

30.5x25.5x22.5 [cm]

7,450 [g]
