14083.S
Wiring devices / Traditional wiring devices / PLANA / Devices

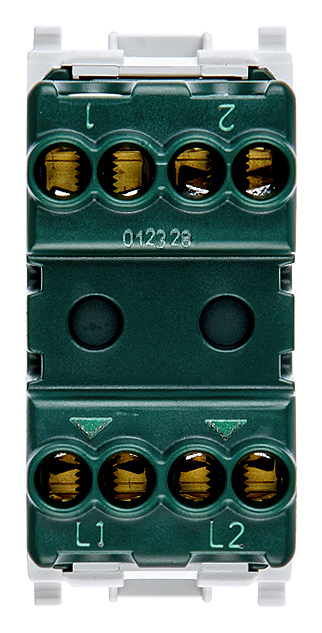

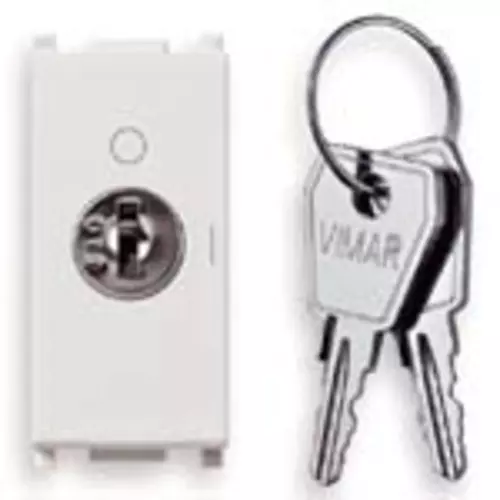

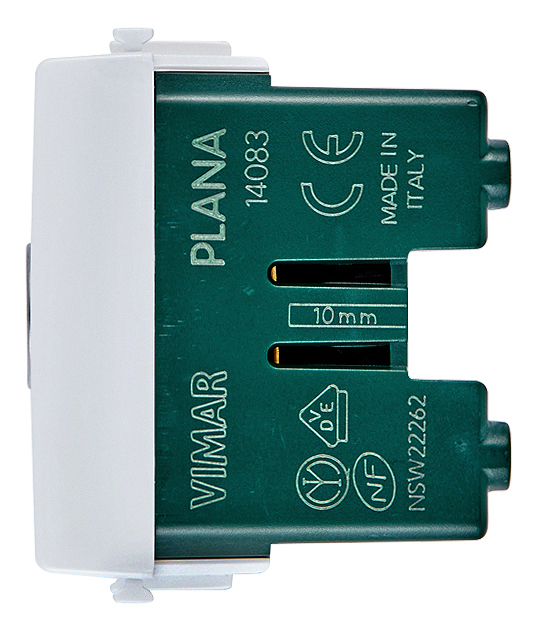

2P 16(3)A 1-way switch +key in OFF white
Independent mounting 2P 16(3) A 250 V~ key-operated 1-way switch, with key removable in OFF position only, white. To be installed with the appropriate accessories from the Plana series. Protection degree: IP20, Degree of pollution: II, Overvoltage category: III, for conductors from 1.5 mm2 to 4 mm2, complete circuit disconnection, Tracking index: PTI250, Glow wire 850°C
Product Status
3 - Active
Drawings
Domestic switching devices
Installation switch
2-pole switch
Key
Modular device for domestic switching devices
1
Yes
0
Flush-mounted
Engage (snap)
No
Plastic
Thermoplastic
Yes
Untreated
Glossy
White
9003
Yes
No
Other
Other
IP40
250 V
16,00 A
No
Screwed terminal
Yes
22,30 mm
49,00 mm
41,40 mm
30,50 mm
00. CE Marking - EU
14. TSE - Turkey
20. IQC - Argentina
29. QCERT - Colombia
31. TISI - Thailand
37. Marking - Morocco
