Universal MASTER dimmer 230V Silver - 14135.1.SL

Pdf
14135.1.SL

Plana Silver / Devices / Electronic devices

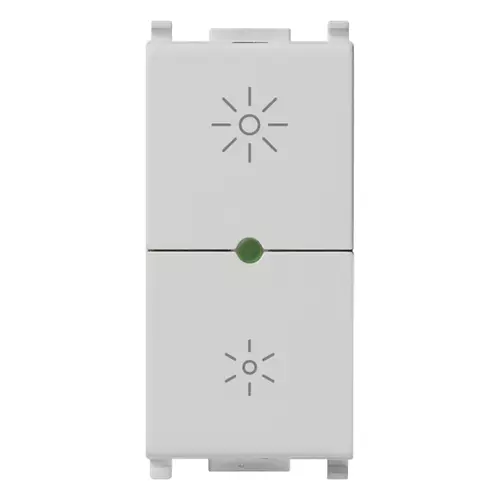

Universal MASTER dimmer 230V Silver
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-400 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 14137, minimum brightness regulation, visible in darkness, Silver. Not for Isoset enclosures

Product Status
3 - Active

Sheets, Manuals, Documentation

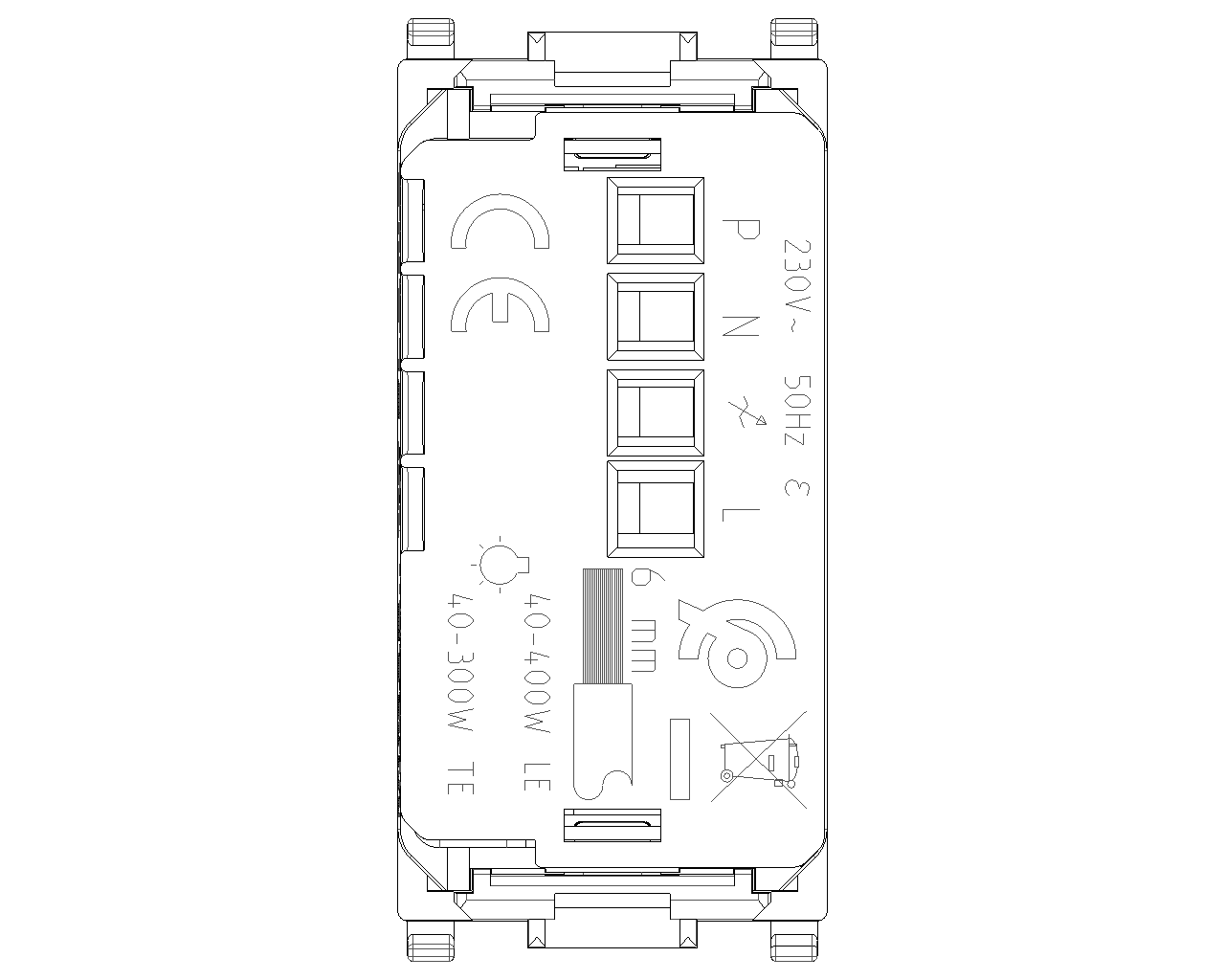

Drawings

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 v
Frequency
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 v
Connection type
Screwed terminal
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
50,70 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352555099
1 NR
5.1x4.3x5.3 [cm]
54.8 [g]
Barcode Qty 10 NR
8007352555105
10 NR
26.9x11.6x4.9 [cm]
611.4 [g]
