14135.120
Wiring devices / Traditional wiring devices / PLANA / Devices
MASTER dimmer 120V white
Dimmer 120 V~ 60 Hz for: 40-500 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED electronic transfomers, control and regulation with built-in push button or from NO peripheral push buttons, MASTER function by 14137.120, minimum power control, visible in darkness, white. Not for Isoset enclosures
Product Status
2 - Will be discontinued
Alternative products
Sheets, Manuals, Documentation

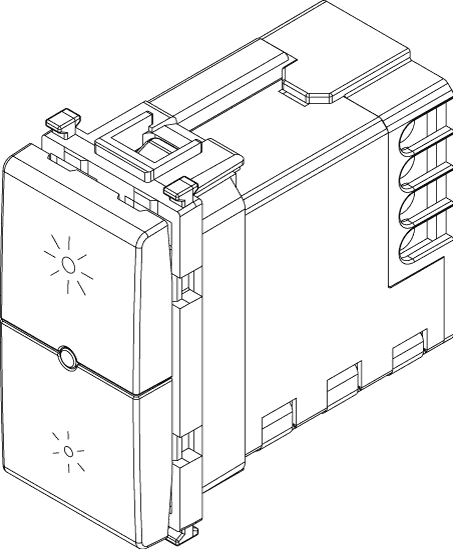

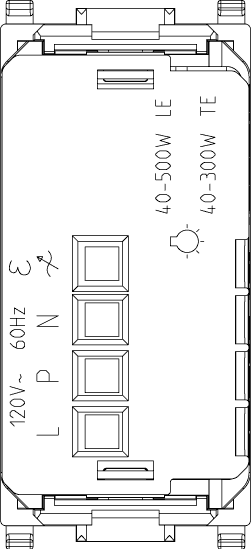

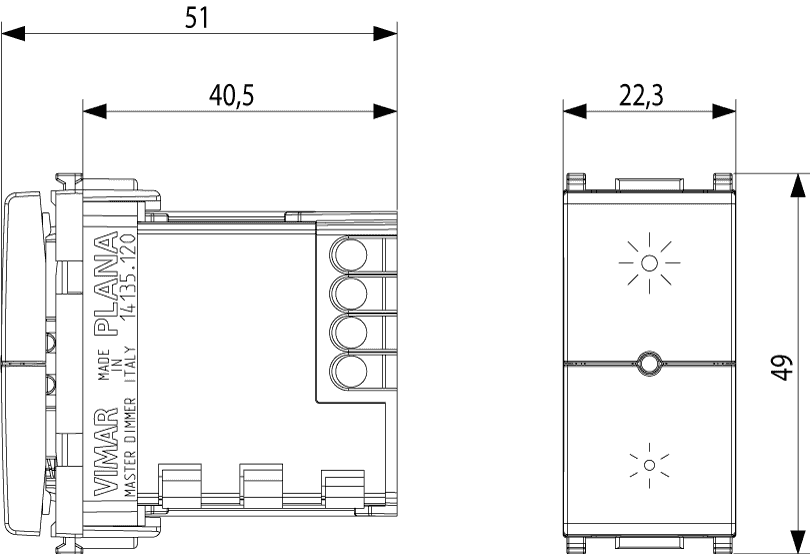

Drawings
Domestic switching devices
Dimmer
Push button
Universal and LED Retrofit
Yes
No
No
No
No
No
Flush-mounted
Snapper mounting
Plastic
Thermoplastic
Untreated
Glossy
White
9003
No
IP40
120,00 - 120,01 V
60,00 - 60,01 HZ
120,00 - 120,01 V
Screwed terminal
22,30 mm
49,00 mm
50,70 mm
37. Marking - Morocco
Barcode
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
