LED-emergency lamp 3M 120-230V Silver - 14384.SL

Pdf
14384.SL

Plana Silver / Devices / Emergency lighting fittings

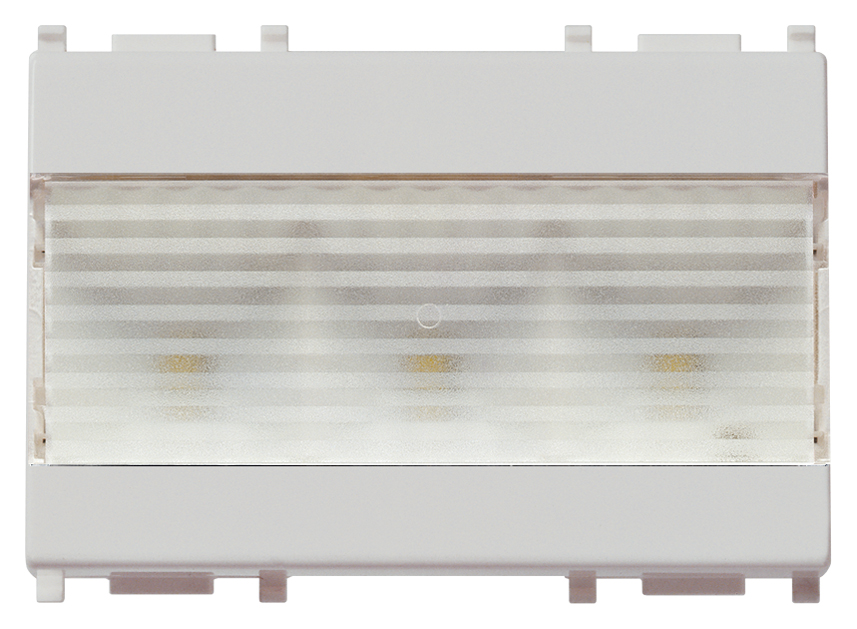

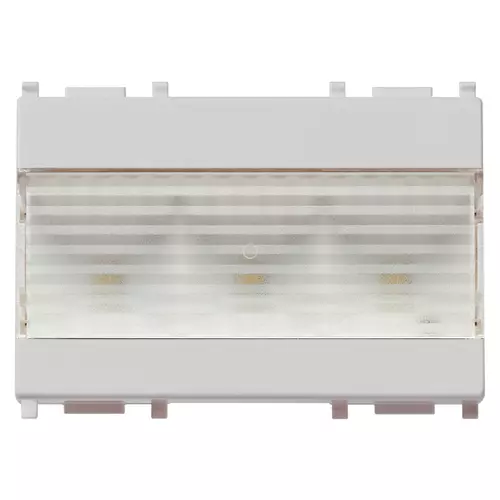

LED-emergency lamp 3M 120-230V Silver
Lamp with high-efficiency LED, supply voltage 120-230 V~ 50-60 Hz, automatic emergency device, 3 rechargeable AAA 1,2 V batteries, 1 hour of operating time, Silver - 3 modules

Product Status
3 - Active

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Material housing
Plastic
Colour housing
Silver
Material cover
Without cover
Voltage type
AC
Nominal voltage
120,00 - 230,00 v
Degree of protection (IP)
IP40
Protection class
II
Max. system power
0,50 W
Rated luminous flux acc. IEC 62722-2-1
22
Width
67,20 mm
Height/depth
46,70 mm
Length
46,50 mm
Built-in width
67,30 mm
Built-in height/depth
36,50 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352311541
1 NR
11.2x9.6x9.8 [cm]
188.47 [g]
