1P C10 CB 120-230V Silver - 14404.10.SL

Pdf

14404.10.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

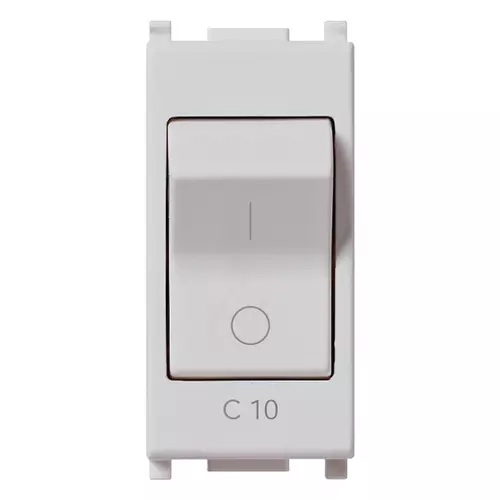

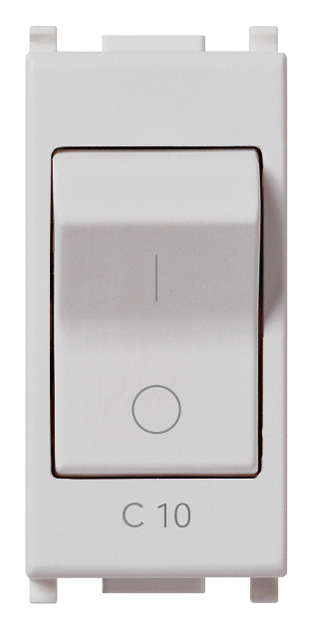

1P C10 CB 120-230V Silver
1P C 10 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 1500 A, Silver

Product Status
3 - Active

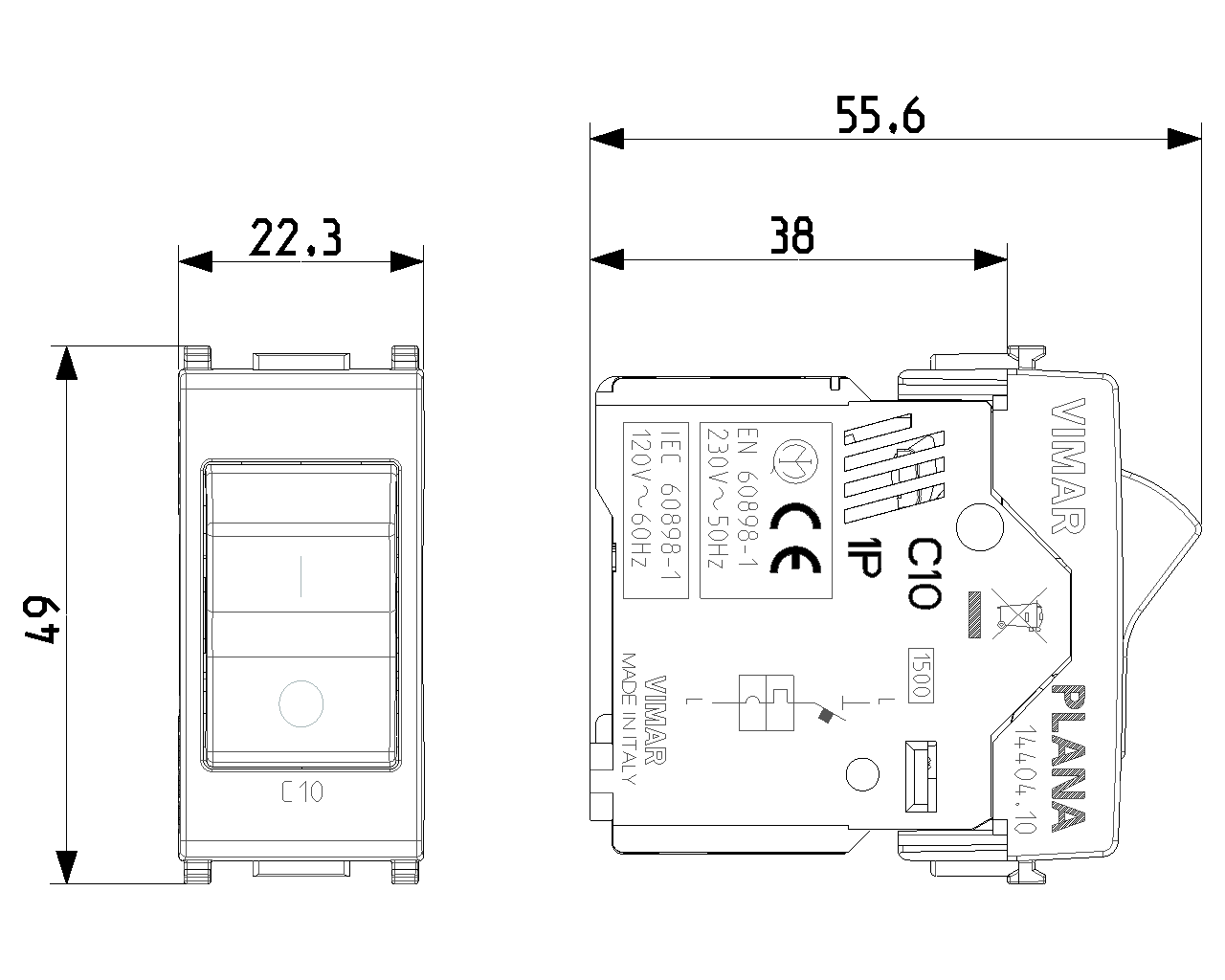

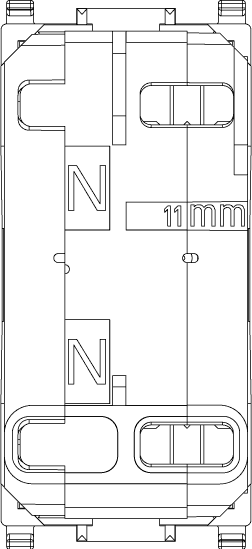

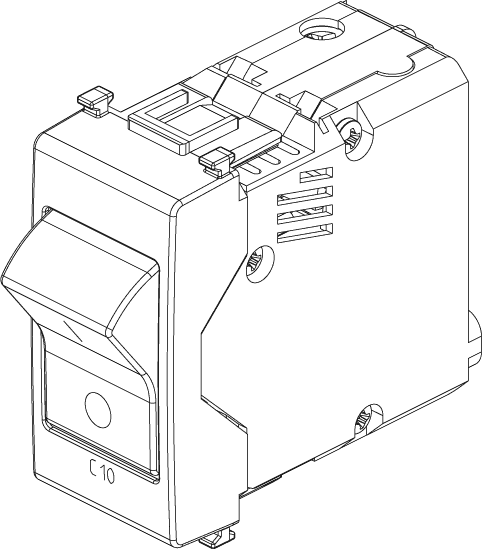

Drawings

Class group
Circuit breakers and fuses
Class
Miniature circuit breaker (MCB)
Built-in depth
38,00 mm
Release characteristic
C
Number of poles (total)
1
Number of protected poles
1
Rated current
10 A
Rated voltage
230 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
1,50 kA
Voltage type
AC
Frequency
50 - 60 HZ
Current limiting class
1
Concurrently switching neutral conductor
No
Over voltage category
3
Width in number of modular spacings
1
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352311664
1 NR
6x2.8x5.3 [cm]
38.2 [g]
Barcode Qty 10 NR
8007352311671
10 NR
14.4x13.1x6 [cm]
428.27 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
