14405.06
Wiring devices / Traditional wiring devices / PLANA / Devices

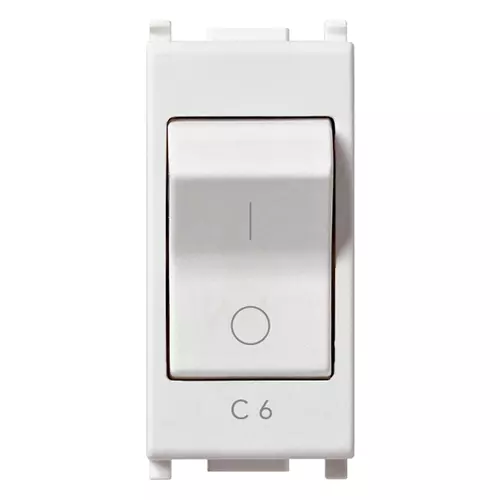

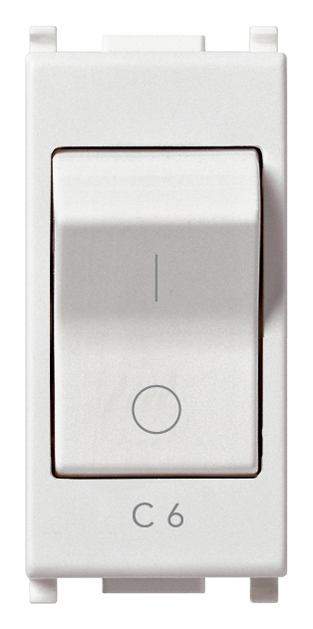

1P+N C6 CB 120-230V white
1P+N C 6 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 1500 A, white
Product Status
3 - Active
Drawings
Class group
Circuit breakers and fuses
Circuit breakers and fuses
Class
Miniature circuit breaker (MCB)
Miniature circuit breaker (MCB)
Built-in depth
38,00 mm
38,00 mm
Release characteristic
C
C
Number of poles (total)
2
2
Number of protected poles
1
1
Rated current
6 A
6 A
Rated voltage
230 V
230 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
1,50 kA
1,50 kA
Voltage type
AC
AC
Frequency
50 - 60 HZ
50 - 60 HZ
Current limiting class
1
1
Concurrently switching neutral conductor
Yes
Yes
Over voltage category
3
3
Width in number of modular spacings
1
1
Degree of protection (IP)
IP40
IP40
Minimum order quantity: 10 NR
Barcode
8007352107854
1 NR
6x2.8x5.3 [cm]
54.61 [g]
8007352107861
10 NR
14.4x13.1x6 [cm]
592.73 [g]
